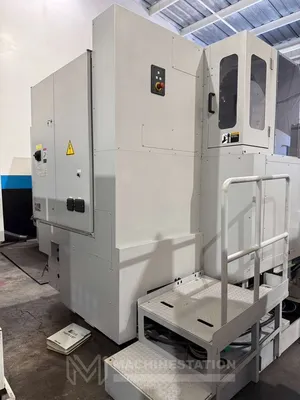

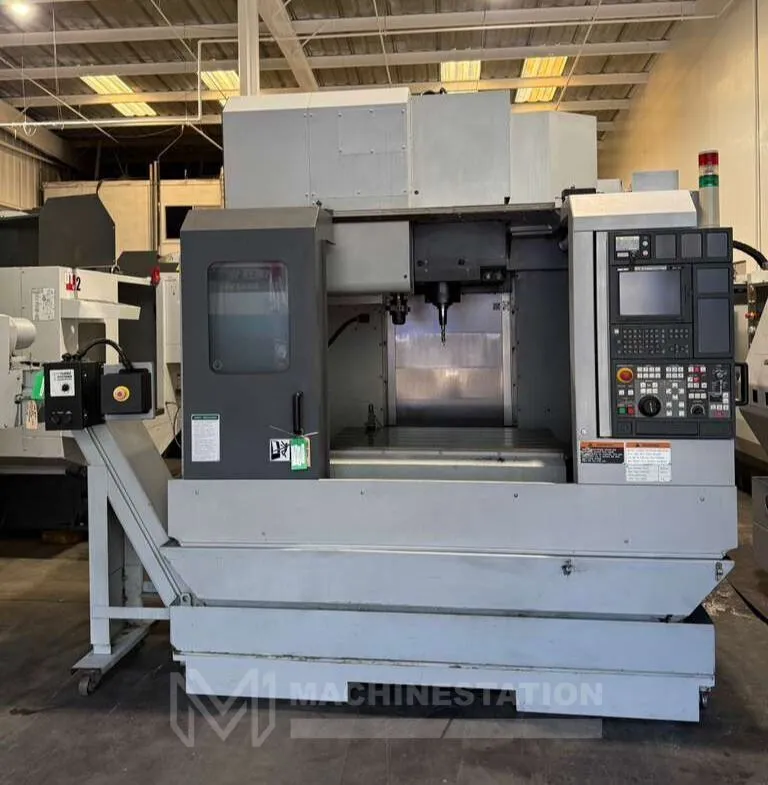

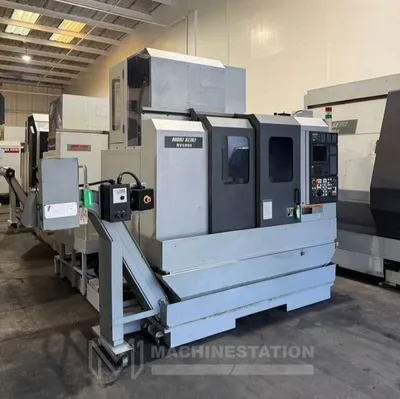

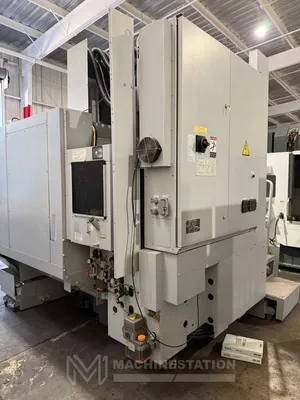

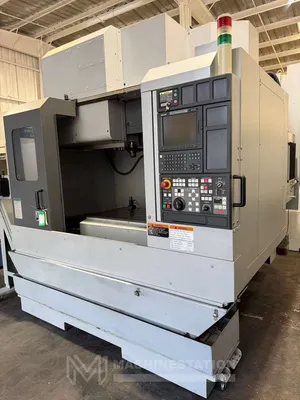

USED 2004 MORI SEIKI NV5000A/40
Overview
Specifications
| X Axis | 31.5" | 800.1 mm |
|---|---|---|
| Y Axis | 20.1" | 510.54 mm |
| Z Axis | 20.1" | 510.54 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 23.6" | 599.44 mm |
| Table-L | 43.3" | 1,099.8 mm |
| # Axis | 3 | 3 |
| Control | CNC (MSG-501 (Fanuc 18i) series CNC Control) | CNC (MSG-501 (Fanuc 18i) series CNC Control) |
| Dimensions | 142″ x 101″ x 110″ High | 142″ x 101″ x 110″ High |
| Weight | 14,330 lbs | 14,330 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

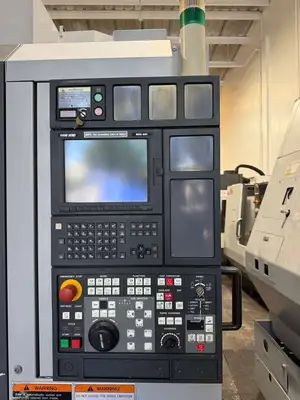

MSG-501 (Fanuc 18i) series CNC Control
CAT-40 Taper Spindle
30 HP high torque spindle motor
Rigid Tapping
Coolant System
Travel:
X-Axis: 31.50″
Y-Axis: 20.10″
Z-Axis: 20.10″
Rapid Traverse Rates: 1654 Inch Per Minute
Cutting Feed Rates: 630 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″
Table:
Length: 43.30″
Width: 23.60″
Number of Std T-Slots: 6
T-Slot Width: 5/8″
Max Weight on Table: 2640 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
Capacity: 24
Max Tool Weight: 17.6 lbs
Max Tool Dia: 5.90″
Max Tool Length: 11.8″
Tool Changing Time: 0.9 Seconds

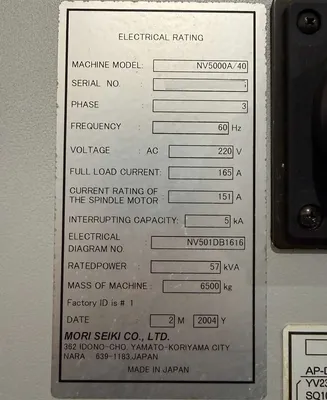

General:
Air Required: 90 psi, 4 scfm
Power: 220v / 57 KVA / 3-Phase
Overall Dimensions: 142″ x 101″ x 110″ High
Weight: 14,330 lbs
Equipped With
12,000 RPM High Precision Spindle
Renishaw Probing System (Probe Included)
Tool Pre-setter
24 Station Automatic Tool Changer
Spindle Chiller Unit
Chip Conveyor
Books & Manuals
