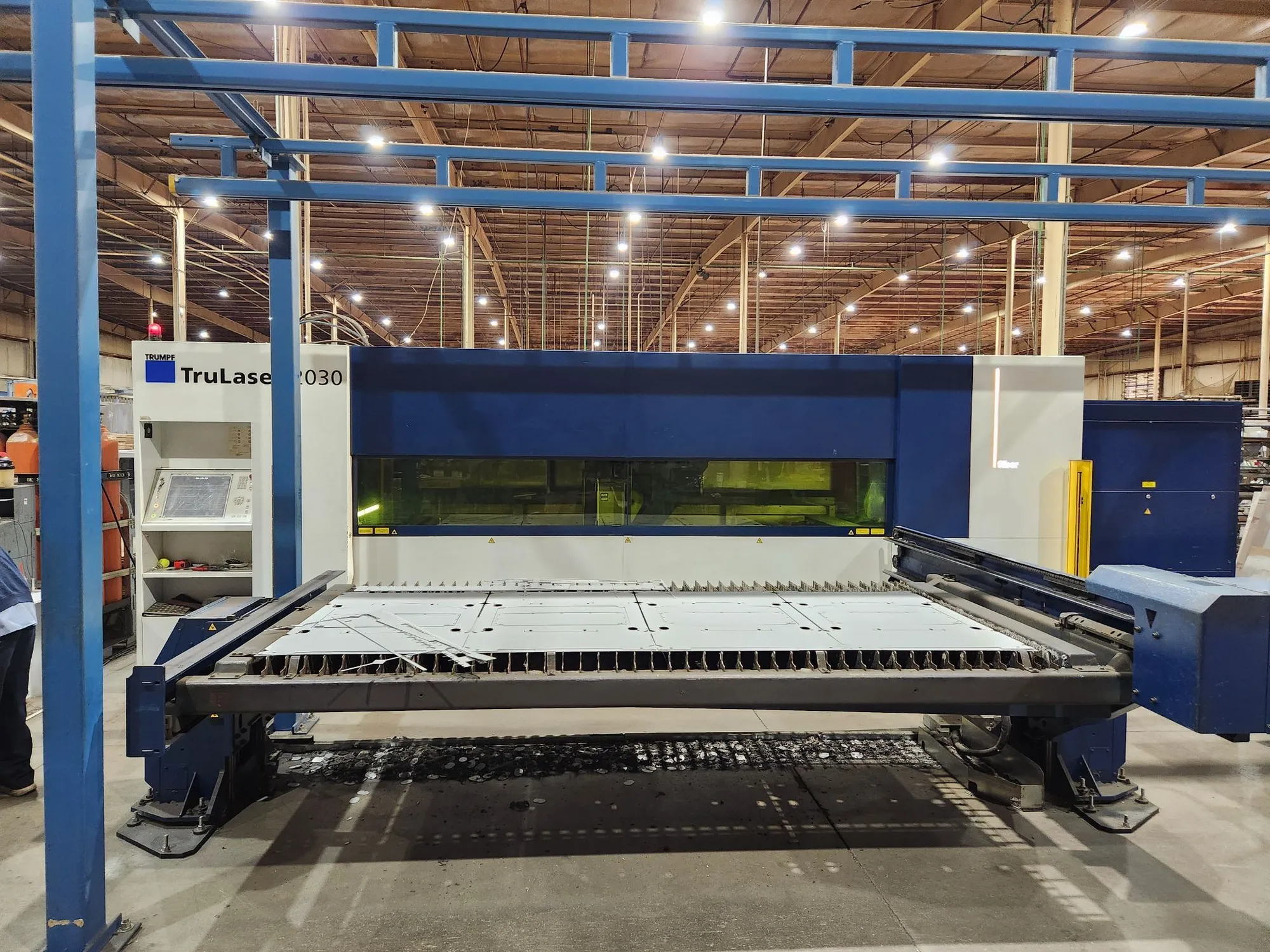

USED 2018 TRUMPF TRULASER 2030 FIBER
Overview
Description
2018 TRUMPF TRULASER 2030 FIBER laser cutter, used, features 4,000,000-watt power. Handles sheet sizes up to 60"W x 120"L. Offers impressive performance with up to 5512 IPM speed. Dimensions: X-118, Y-266, Z-91. Ideal for precision cutting tasks.
Specifications
| Sheet-W | 60" | 1,524 mm |
|---|---|---|
| Sheet-L | 120" | 3,048 mm |
| Wattage | 4000000 w | 4,000,000 W |
| IPM | 5512 ipm | |
| X | 118" | 2,997.2 mm |
| Y | 266" | 6,756.4 mm |
| Z | 91" | 2,311.4 mm |
| Dimensions | 8276 mm x 6764 mm x 2300 mm | 8276 mm x 6764 mm x 2300 mm |
| Weight | 7750 kg | 7750 kg |
Laser Power: 4000 W (4 kW)
Cutting Table Size: 3000 mm x 1500 mm (approx. 120" x 60" or 5' x 10')
Maximum Workpiece Weight: 900 kg (1985 lbs)
Maximum Sheet Thickness:
Mild Steel: 25 mm (1")
Stainless Steel: 20 mm (0.8")
Aluminum: 20 mm (0.8")
Brass: 8 mm (0.31")
Copper: 8 mm (0.31")
Maximum Axis Speed (simultaneous): 140 m/min
Machine Dimensions: 8276 mm (L) x 6764 mm (W) x 2300 mm (H)
Weight of Basic Machine: 7750 kg (17,085 lbs)
Average Power Consumption (production): 13 kW
