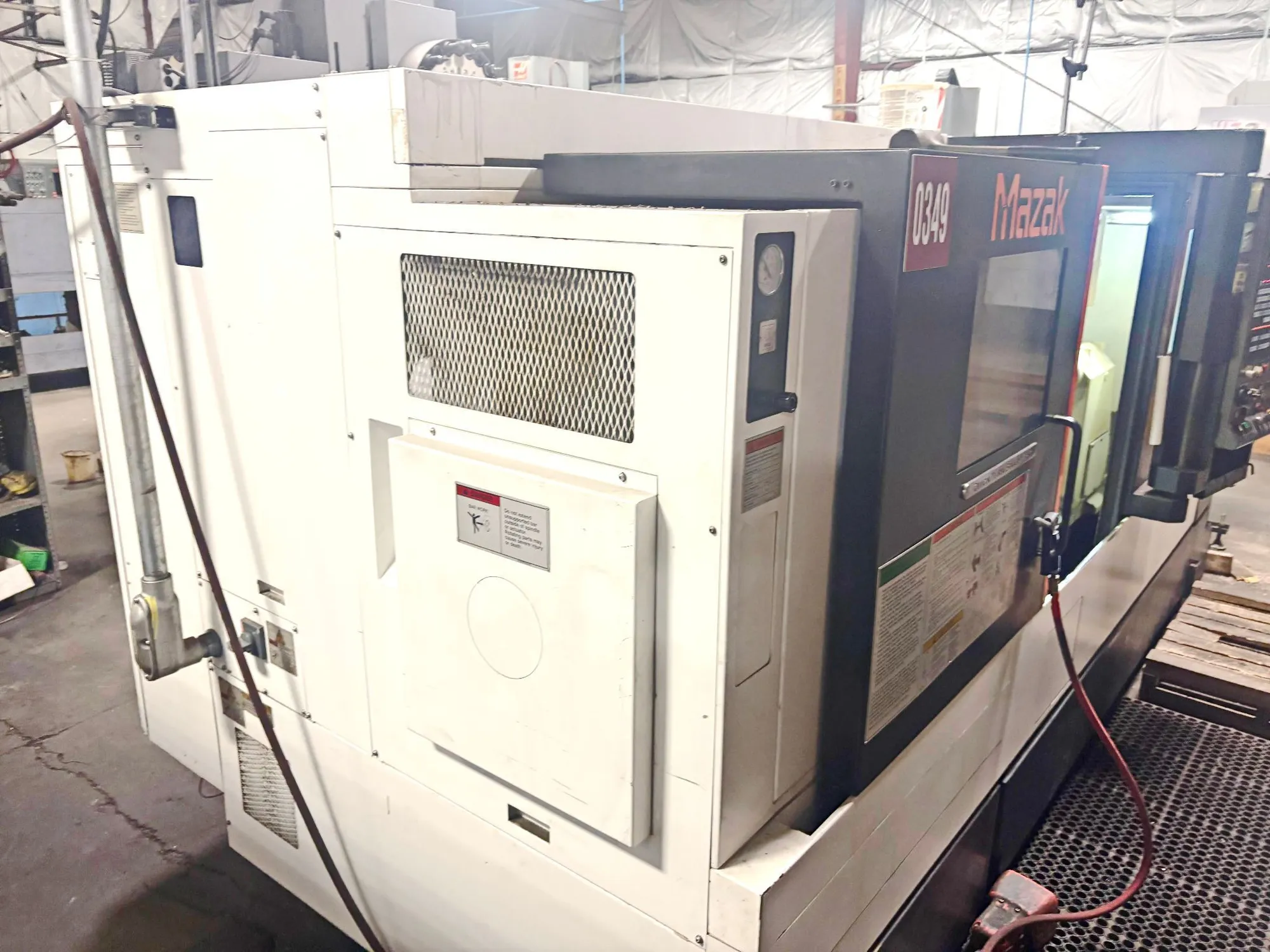

2014 Mazak Quick Turn Smart 350 CNC Lathe, Programmable Tailstock, 12" Hydraulic Chuck, Tool Presetter, Chip Conveyor
| Swing | 28.3" | 718.82 mm |
| Machining Length | 48.67" | 1,236.2 mm |
| Max Turning Dia | 16.5" | 419.1 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Spindle Bore | 4.4" | 11.2 cm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 3,300 RPM | 3,300 RPM |
| X-Axis Travel | 10.38" | 263.65 mm |
| Z-Axis Travel | 53.13" | 1,349.5 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Turret Capacity | 12 | 12 |
| Control | CNC (Mazatrol Smart) | CNC (Mazatrol Smart) |
| Dimensions | 150" X 75" X 75" | 150" X 75" X 75" |
| Weight | 15,200 lb | 15,200 lb |
Programmable tailstock
12" hydraulic chuck
Tool presetter
Chip conveyor
