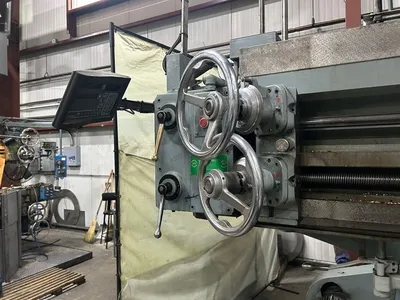

NEW BULLARD CUTMASTER 64

64" BULLARD CUTMASTER Vertical Turret Lathe, 72" Swing, 64" Table, 54" Under the Rail
The Bullard Company, originally founded as the Bridgeport Machine Tool Works in 1894 by Edward Payson Bullard Sr., became known for its innovative vertical turret lathes, developed by both the founder and his son, Edward Payson Bullard II. The company officially became "The Bullard Co." in 1929 and produced its machines in Bridgeport, CT, becoming synonymous with this type of equipment, which was crucial for heavy industries like oil and gas. While Bullard ceased production of new machines in 1989, its legacy continues as current owner Bourn & Koch, Inc. continues to provide parts and service for the robust, long-lasting machines.

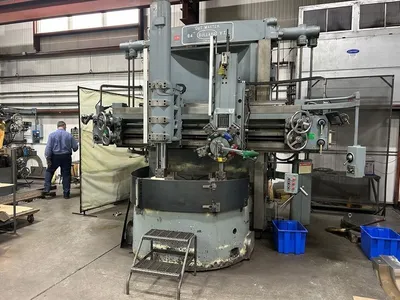

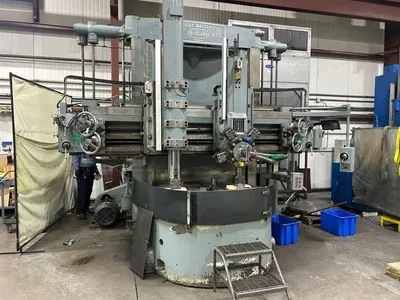

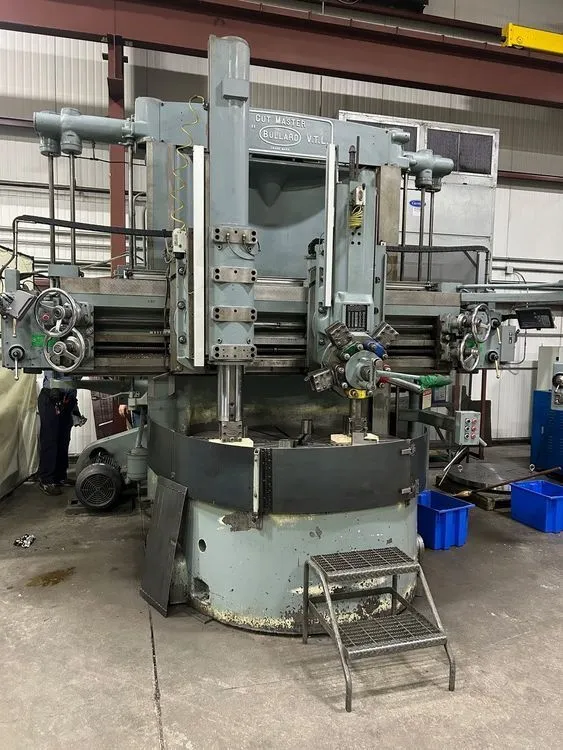

64” BULLARD CUTMASTER Vertical Turret Lathe

Model: 64” CUTMASTER
Serial Number: 26664
Chuck Diameter 4-Jaw Plain Table with Jaws....................64"
Maximum Swing.................................................72"
Height Under Rail.............................................54"
Side Head Travel In & Out.....................................27"
Side Head Travel Up & Down....................................54"
Turret Head Swivels...........................................30 Degrees
Turret Head Travel Up & Down..................................37"
Turret Head Travel Left To Right..............................33-1/2"
Ram Head Travel Right To Left.................................41"
Ram Head Travels Up & Down....................................30"
Feeds.........................................................0.003 To .500 I.P.R.
5 Position Turret Head
Ram Head 41" Travel
Side Head

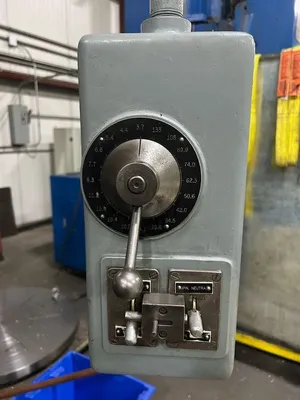

Table Speeds from 3.7 to 133 RPM
Flush Floor Design
40 HP 220/440 Volt Electrics

64” BULLARD CUTMASTER Vertical Turret Lathe

Model: 64” Cutmaster
Serial Number: 26664

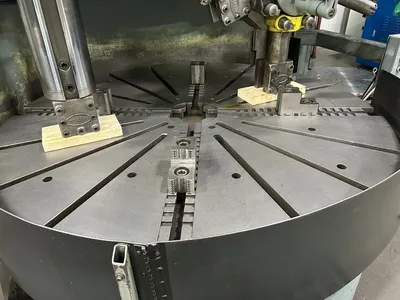

64” Diameter 4-Jaw Chuck
72” Maximum Swing
54” Height Under Rail
Long Cylinder Ram Head on Rail
5 Position Turret Head
41” Ram Travel
Table Speeds from 2.7 to 133 RPM

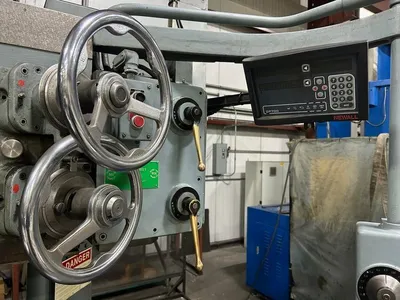

2 Axis NEWALL DRO on Each Head
40 HP 220/440 Volt Electrics
