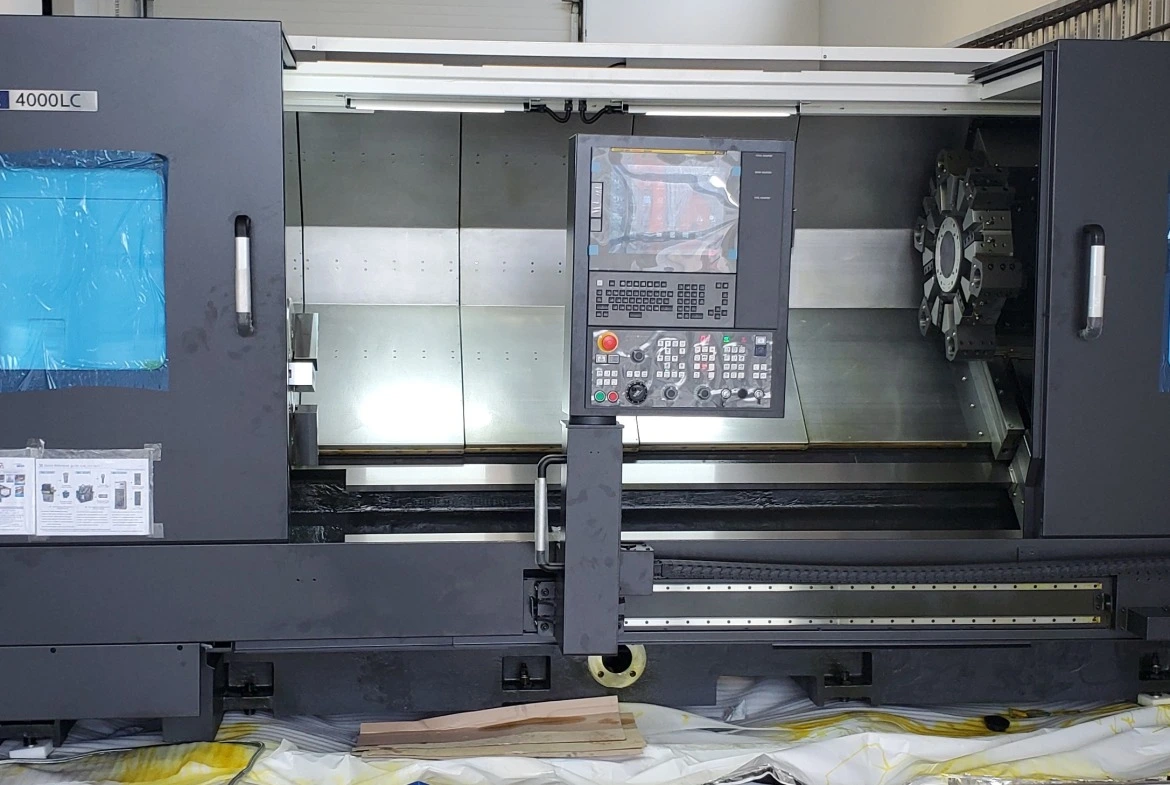

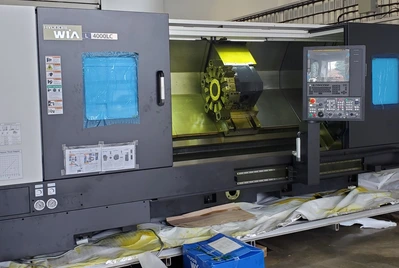

NEW Hyundai L4000LC & LMC Turning Centers (SOLD)

Controller: Fanuc I Series Smart Plus 15″ monitor
Swing: 31.5″
Maximum Cutting Diameter: 22.4″
Maximum Work piece Length: 80.1″
Mill Turret BMT 75: 15 HP
Mill Turret RPM: 5,000 rpm
Travel X Axis: 13″
Travel Z axis: 86.6″
Guide Ways: Boxed
Spindle: A2 – 15
Max Bar Work Diameter: 6.5″
Max RPM: 1,500 rpm
Rapid Traverse X Axis: 787 ipm
Rapid Traverse Z Axis: 944 ipm
Turret: 12 Tools
Tool Size (Square Shank): 1.25″ OD sq
Tool Size (Round Shank): 2.5″ ID rd
Index Time – Tool to Next Tool: .2 sec
Chuck: 21″( one set soft jaws)
Tailstock Quill Diameter: 5.9″
Tailstock Quill Travel (Programmable): 5.2″
Tailstock Body Travel: 82.5
Tailstock Quill Internal Taper-Built In Type: MT #6
Horsepower: 50 HP 2 Geared Head
Torque: 1,812 Ft/lbs
Work light: Yes
Weight: 25,000 lbs
C Axis: Indexing 0.001 Degree
Bed: 45 deg
Standard Tooling Package: Yes
Tool Setter: Auto Setter Standard Included
Axial Milling / Drilling Unit: 1
Radial Milling / Drilling Unit: 1
Chip Conveyor: Hinge Right
