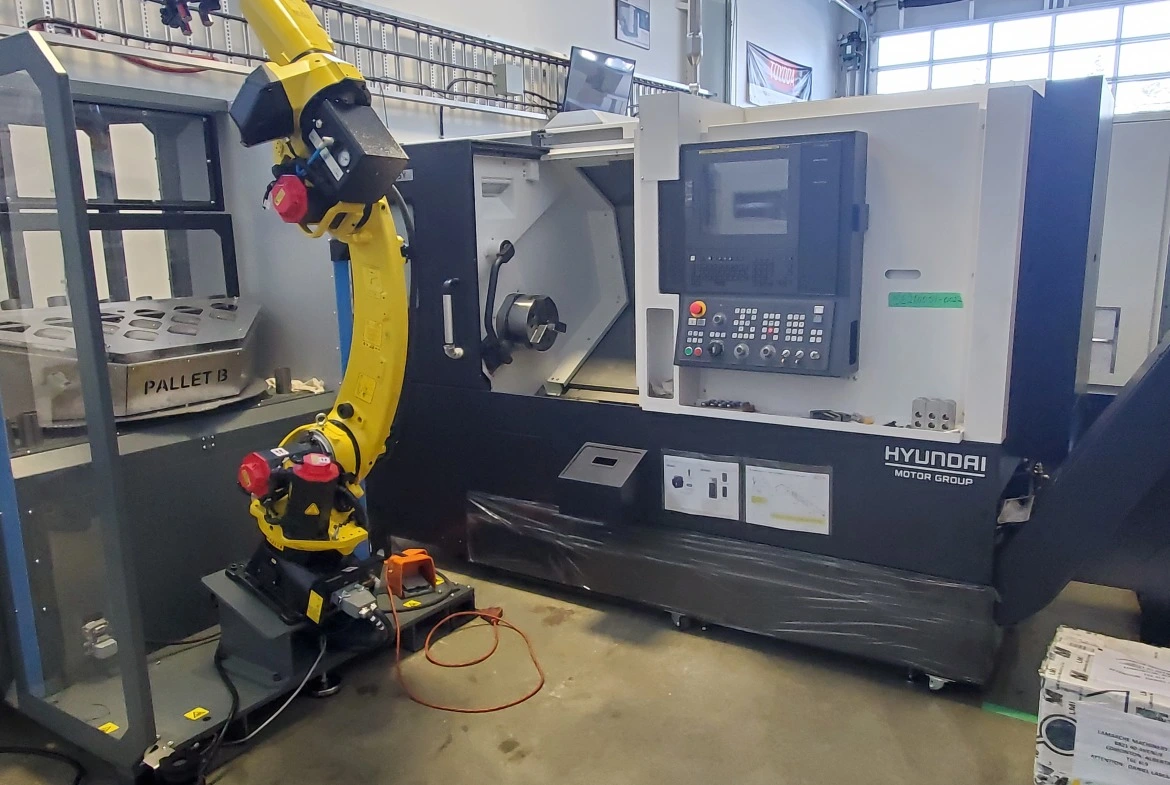

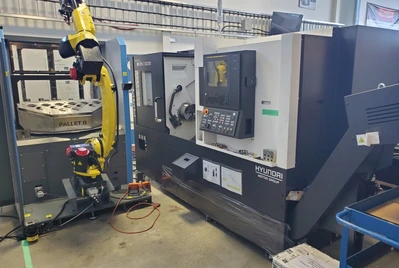

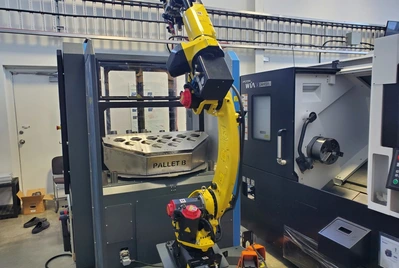

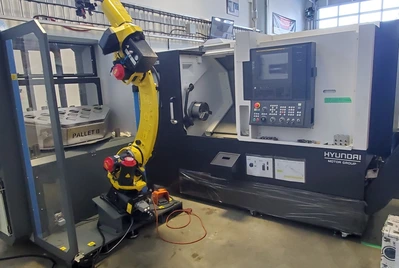

NEW Hyundai SE2600SY Turning Center w/ Robot Tending System
Overview
Description
Hyundai WIA SE2600SY Sub-spindle Y axis Turning Center /with Optional Robotic Tending System
Specifications
CNC controller: Fanuc OI Plus 15″ Touch
Swing: 24.8″
Maximum cutting diameter: 15″
Maximum work piece length: 25.7″
Travel X axis: 10″
Travel Z axis: 26.8″
Travel Y axis: 4.3″
Guide Ways: High Performance Linear Roller
Main Spindle Nose: A2-8
Max bar work diameter Main: 3.2″
Max RPM Main: 3,500
Main Spindle: C Axis
Rapid traverse X axis: 1,181 ipm
Rapid traverse Z axis: 1,181 ipm
Rapid traverse Y axis: 394 ipm
Turret BMT 55: 12 Tools / 24 Position
Tool size (Square Shank): .75″ sq
Tool size (Round shank): 1.50″ dia
Index time(1 station): 1.25 sec
Chuck ( Samwoo Kitagawa ): 10″Main- one set of soft jaws
Horsepower Main: 25 HP
Max Spindle Torque (S2 15min): 347.3 lbs ft
Chuck size Sub Spindle –: 6″ 3 jaw- one set of soft jaws
Spindle bore: 2.4″
Spindle speed: 4,500 rpm
Spindle nose: A2-5
A.C. Spindle Motor (S3 15min): 10.1 HP
Max. spindle torque (S3 15min: 62.7lbf.
Live Tool Speed: 6000 rpm
Live Tooling: 7.4 HP
Live Tooling Torque: 38.7 ft-lbs
Work light: Yes
Weight: 11,023 lbs
Axial Live tool Holder: 2
Radial Live tool Holder: 2
Helical Interpolation: Helical Milling Option Fanuc
