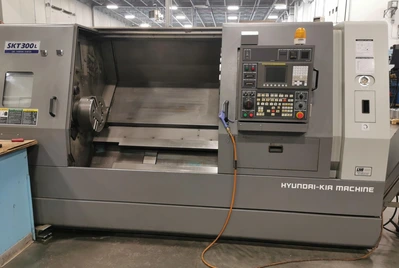

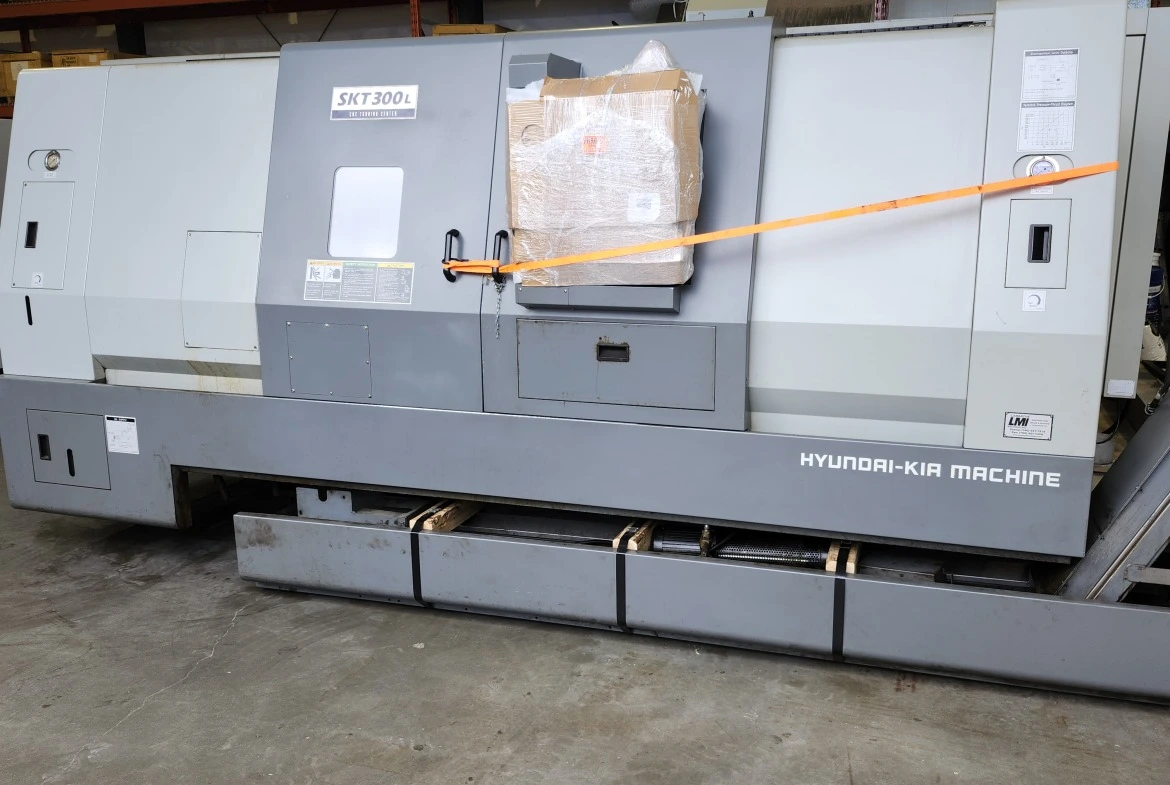

2009 Hyundai Kia SKT 300L

CNC controller: Fanuc 0iT
Swing: 29.5″
Maximum cutting diameter: 22″
Maximum workpiece length: 49.3″
Travel X axis: 14.”
Travel Z axis: 52.5″
ways: Boxed
Spindle: A2 8
Max bar work diameter: 3.54″
Spindle Bore: 4.02″
Max RPM: 3600
Rapid traverse X axis: 787 ipm
Rapid traverse Z axis: 945 ipm

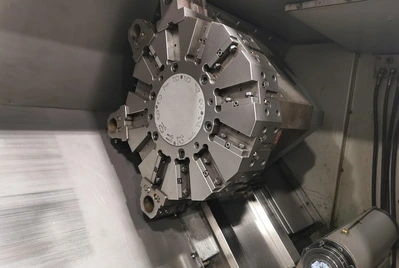

Turret: 12 Tools
Tool size (Square Shank): 1″ sq
Tool size (Round shank): 2″
Index time(1 station): .3 sec

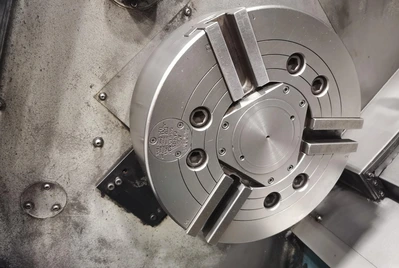

Chuck: 12″
Horsepower: 35 HP
Geared Head: 2 Gear ranges
Torque: 810 ft-lbs
Work light: Yes
Weight: 14,787 lbs
Bed: 45 deg
Coolant system: 63 psi
Autmatic Tool Setter: Yes
Tailstock quill diameter: 3.9″
Tailstock quill travel (programmable): 5.1″
Tailstock quill internal taper: MT #5
