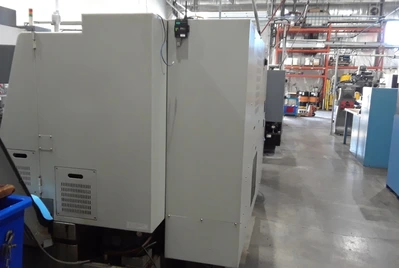

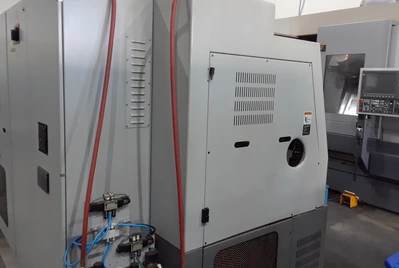

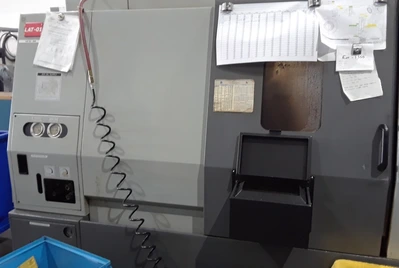

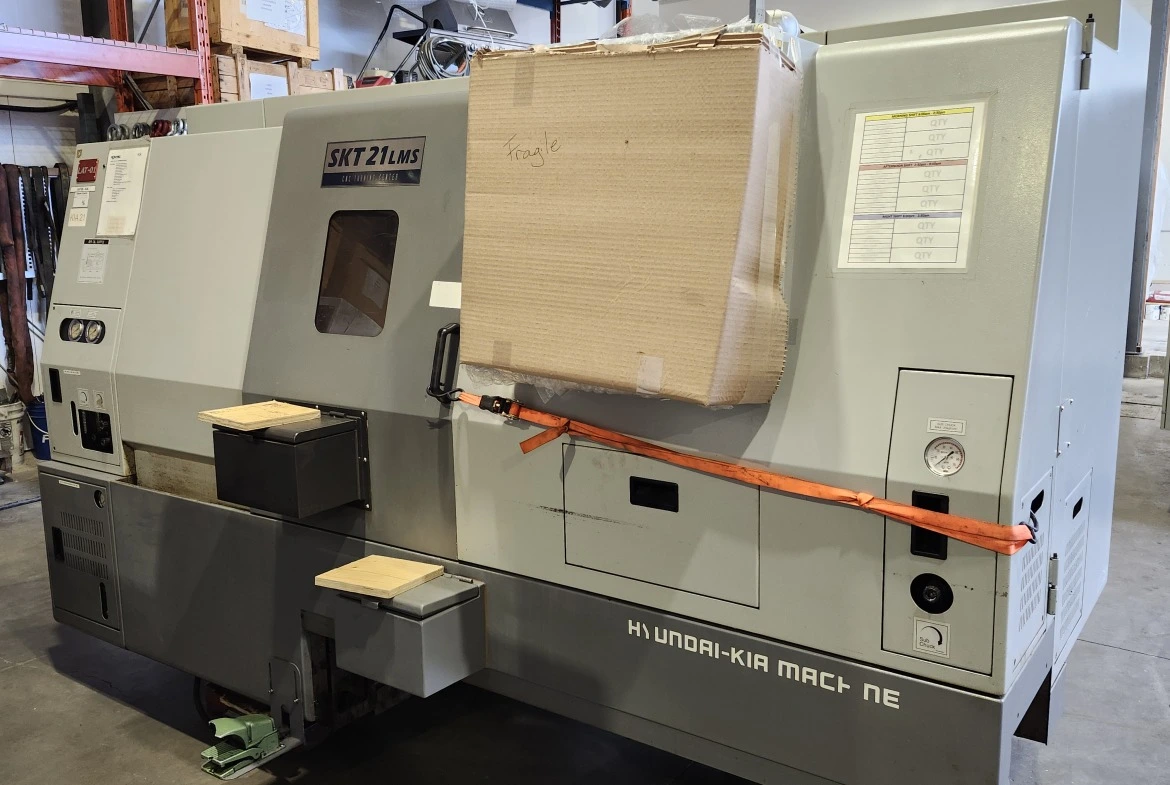

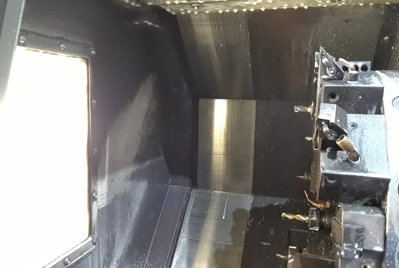

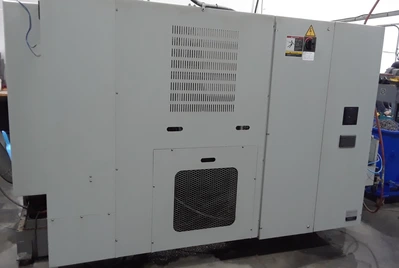

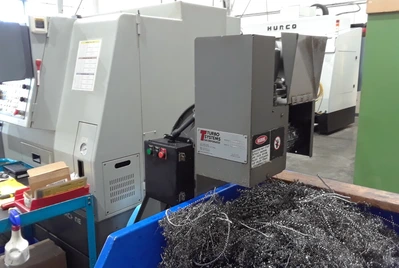

2005 Hyundai SKT 21LMS Multi-Task Turning Center

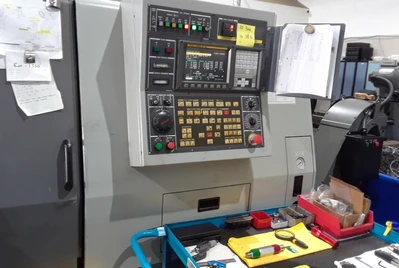

CNC controller: Fanuc
Swing: 21.7″
Maximum cutting diameter: 13.8″
Maximum workpiece length: 20.9″
Travel X axis: 8.7″
Travel Z axis: 21.7″
Ways: Schneeberger Roller Guide

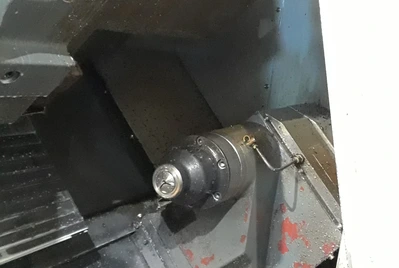

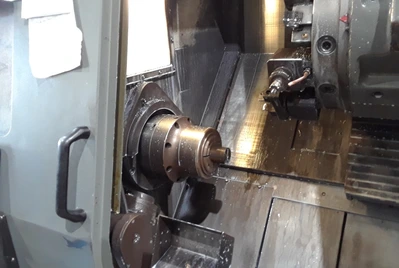

Spindle: A2 6
Second: Flat Nose
Max bar work diameter Left (spindle Length 46.36″): 2.56″
Max bar work diameter right: 1.375″
Max RPM L / R: 4000 L / 6000 R
C Axis Left spindle: C Axis
C Axis Right spindle: 5 Degree Indexing
Rapid traverse X axis: 1417 ipm
Rapid traverse Z axis: 1417 ipm

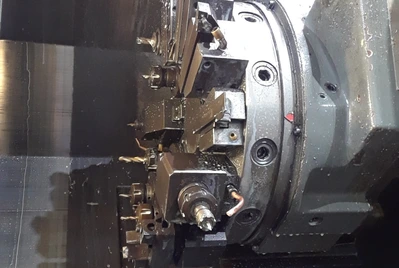

Turret: 12 Tools
Tool size (Square Shank): 1″ sq
Tool size (Round shank): 1.5″
Index time(1 station/1 full rev): .28 sec/
Chuck ( Samwoo Kitagawa ): 8″Main 5.3″ Second
Horsepower: 20 HP
Torque: 211.3 ft-lbs. (L) 17.4 ft-lbs. (R)
Work light: Yes
Weight: 9,480 lbs.
Coolant system: Yes
Automatic Tool Setter: Yes
Standard tooling package: Yes
Parts Catcher: Yes
VDI O.D. Holder-Front: 2
VDI Face Holder: 1
VDI Double OD Holder: 1
VDI Double OD / ID Holder: 1
VDI Double ID Holder: 2
VDI ID Holder: 1
VDI Live Tool Holder ( Axial ): 2
VDI Live Tool Holder ( Radial ): 2
Air Blow: Yes
