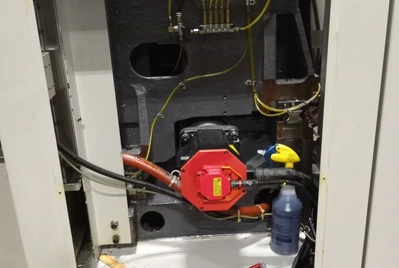

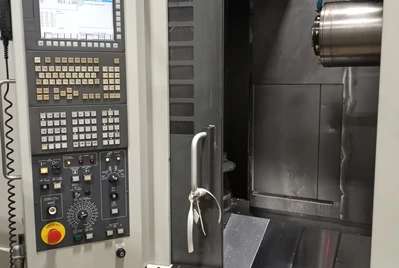

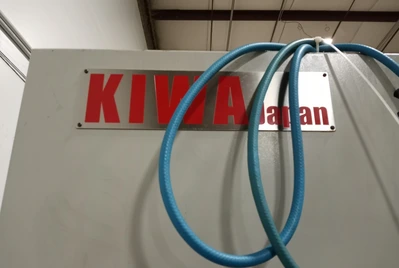

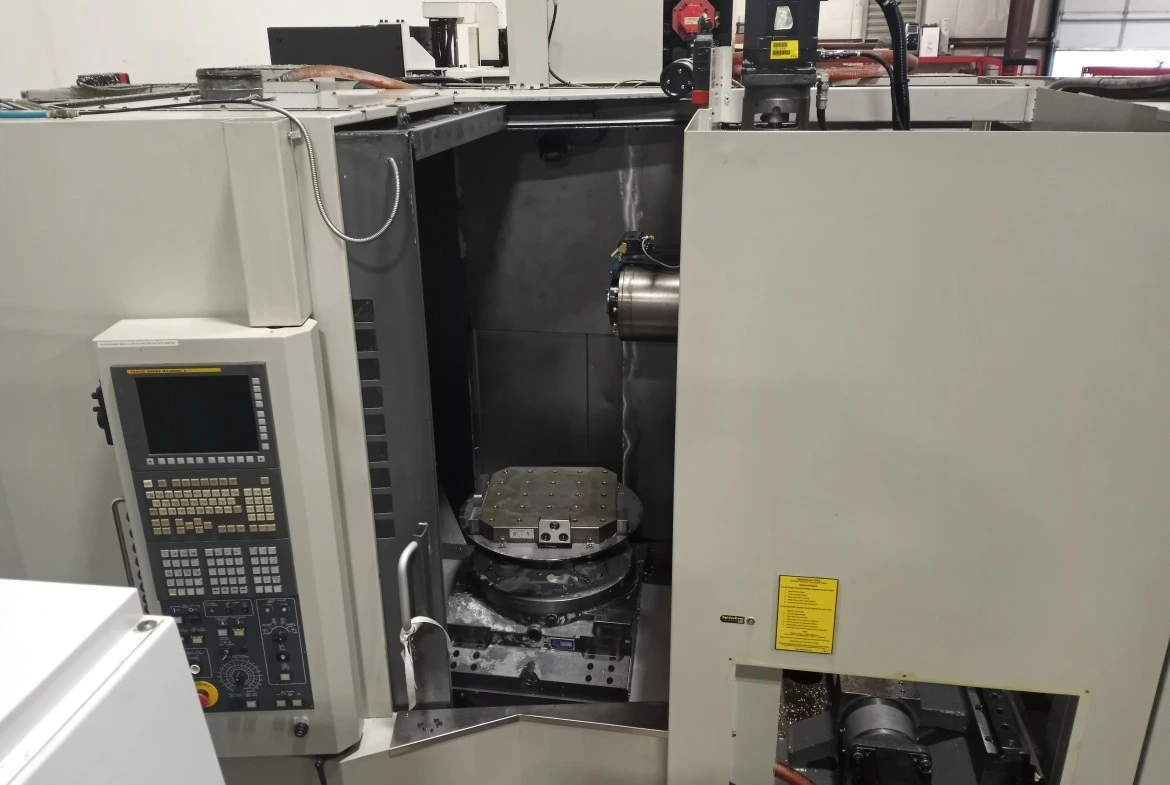

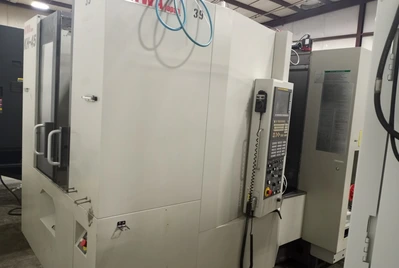

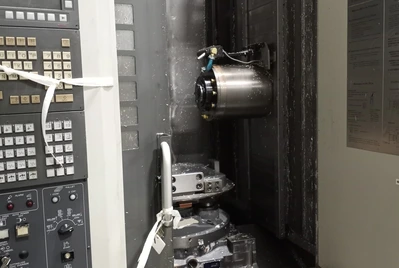

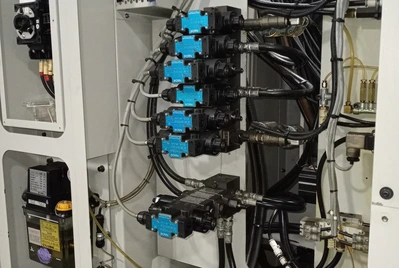

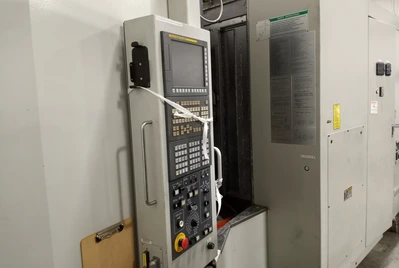

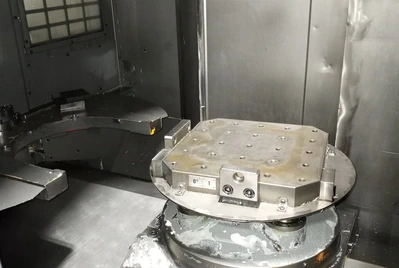

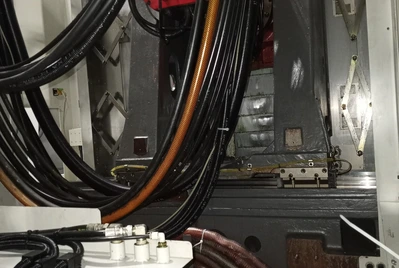

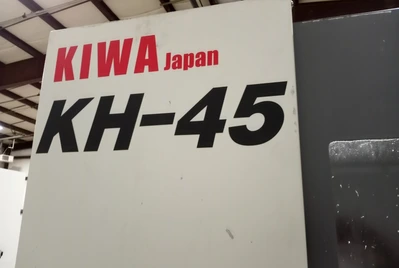

2008 KIWA KH45 Horizontal Machining Center

CONTROLLER: Fanuc 31i-MA
Table Size L x W (in.): 15.750 x 15.750
Max. Workpiece Weight (lbs: 1,100 lbs
Pallet Changer No. of Pallet: 2
Rotary Table: Full 4th
Num. Main Spindles: 1
Taper: Cat 40
Spindle Speed: 12,000 Rpm
Horse Power (30 min rating: 30hp
# Speed Ranges: 1
Type: Fixed
Primary Tool Carrier(s): ATC 60 TOOLS
Tool Change Time C-to-C: 0.90 sec tool-to-tool
Max. Tool Length: 15.700″
Max. Tool Diameter: 2.800″ (with empty adacent pockets
2.800″ (with empty adacent pockets: 17.60 LBS
Number of Axes: 4 / U Axis: None
X1 Std. 25.200: 1,181 ipm/2,362 ipm
Y1 Std. 24.000″: 1,181 ipm/2,362 ipm
Z1 Std. 26.800″: 1,181 ipm/2,362 ipm
B1 Std. 360,000 deg: 33 rpm 33 rpm
Machine Dimensions (L x W x H: 95″ x 179″ x 109
Machine Weight: 20,240 LBS
Spindle Nose To Table Edge: 30.7
Spindle To Table Center: 3.9
