USED WYSSMONT COMPANY, INC. N-22

Wyssmont Turbo Tray Dryer Model N-22, featuring 22 stainless steel trays (78” diameter) stacked on close centers for efficient continuous drying. Unit includes Aerofin steam coil heating system, HEPA-filtered inlet air system, 1.5 HP turbo fan drive, and 1 HP tray drive gearmotor. The dryer’s insulated and stainless-cladded frame provides durability and superior heat retention. Ideal for food ingredients, chemicals, catalysts, pharmaceuticals, and other heat-sensitive materials requiring gentle, consistent drying.

Stock Number: 5991640
Manufacturer: Wyssmont Company, Inc.
Model: N-22

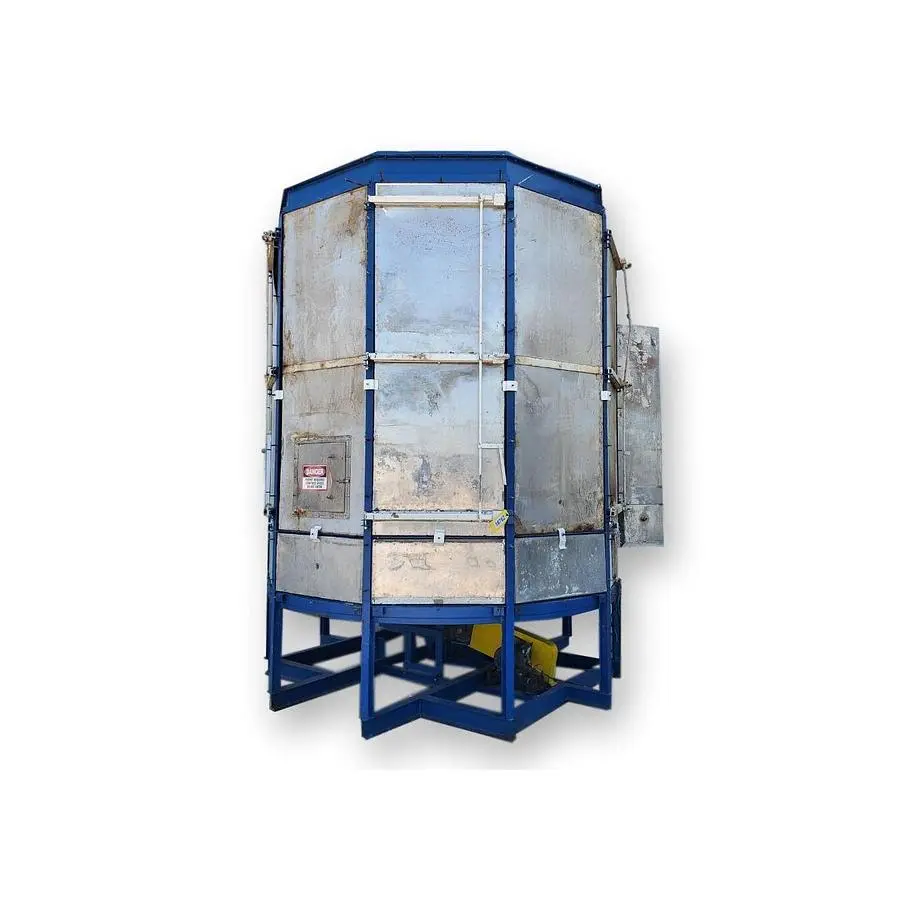

Materials of Construction: Structural steel frame with 1.5" thick insulated panels, stainless steel sheet cladded
Base Configuration: Decagon (10-sided) shape, measuring 9'-9" across corners
Overall Hight: 12'-0" roof height with 5" step-down level
Dryer Diameter: 120" (129" overall width)

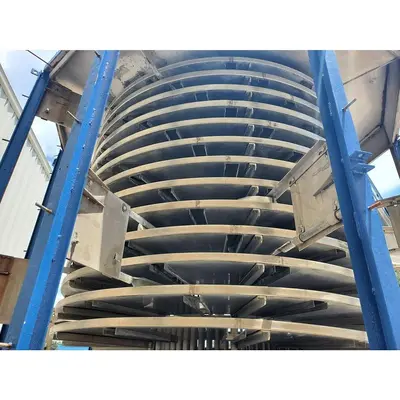

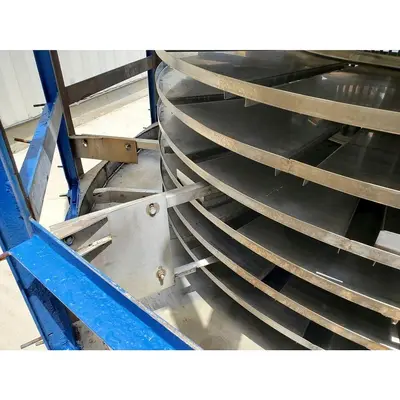

Dryer Trays: 22 trays, each 78" diameter, stacked at 4-11/16" spacing
Product Inlet: 5" x 15" sleeve @ 12'-7" elevation
Product Discharge: 5.5" x 23" opening @ 2'-5-1/4" elevation
Drying Air Outlet: 18" diameter opening @ 12'-0" elevation
Turbo Fan Drive: 1.5 HP motor with Roto-clone variable speed pulley

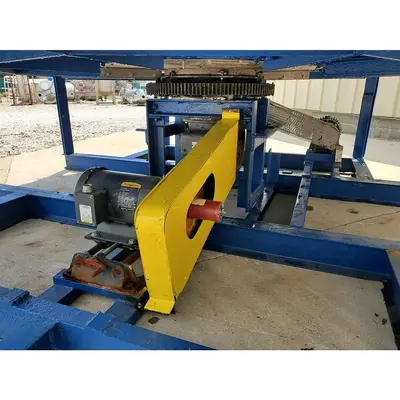

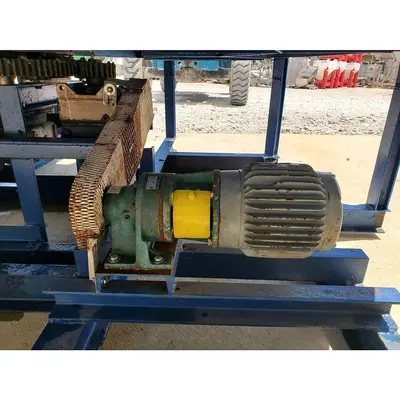

Tray Drive: 1 HP gearmotor with chain drive
Heating Coils: (3) inline Aerofin steam coil heating units
Inlet Air Filter:: Filter housing for 44"W x 35"H HEPA filters
Heater Fan: Not included
Panels: Includes cover panels
Dimensions: 120" diameter (129" overall width) x 151" high
Basis: As Is, Where Is
