USED WYSSMONT COMPANY, INC. N-16/22

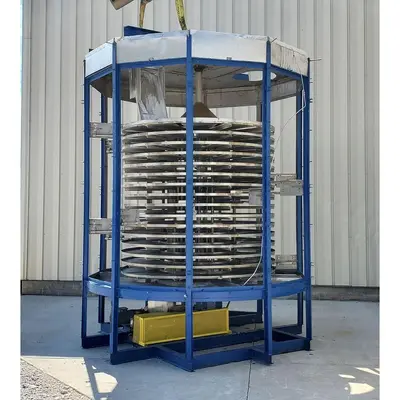

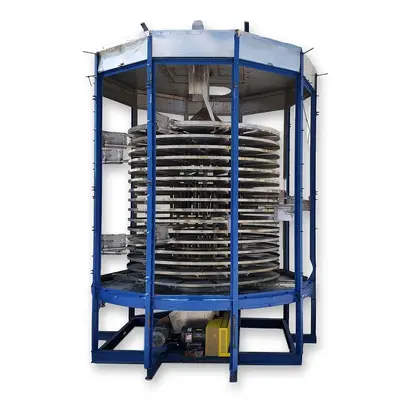

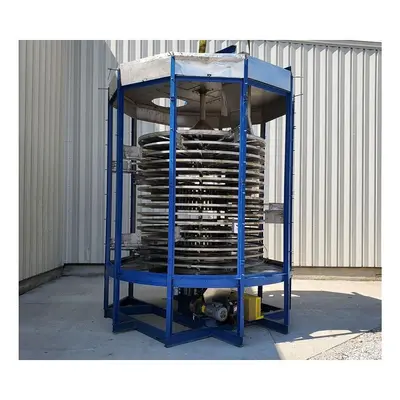

Wyssmont Turbo Tray Dryer Model N-16/22, serial number J-121, featuring 16 stainless steel trays (78” diameter), stacked for continuous countercurrent drying action. Equipped with a 1.5 HP turbo fan drive with variable speed pulley, 1 HP tray drive gearmotor, and 5 HP heater fan. Dryer utilizes three inline Aerofin steam coils for heat transfer, with HEPA-filtered inlet air housing and stainless steel air header. The unit’s insulated and stainless-steel-cladded frame ensures thermal efficiency and durability. Ideal for applications in food, chemical, and industrial drying processes requiring gentle, continuous, and uniform product drying.

Stock Number: 5991639
Manufacturer: Wyssmont Company, Inc.
Model: N-16/22
Serial Number: J-121

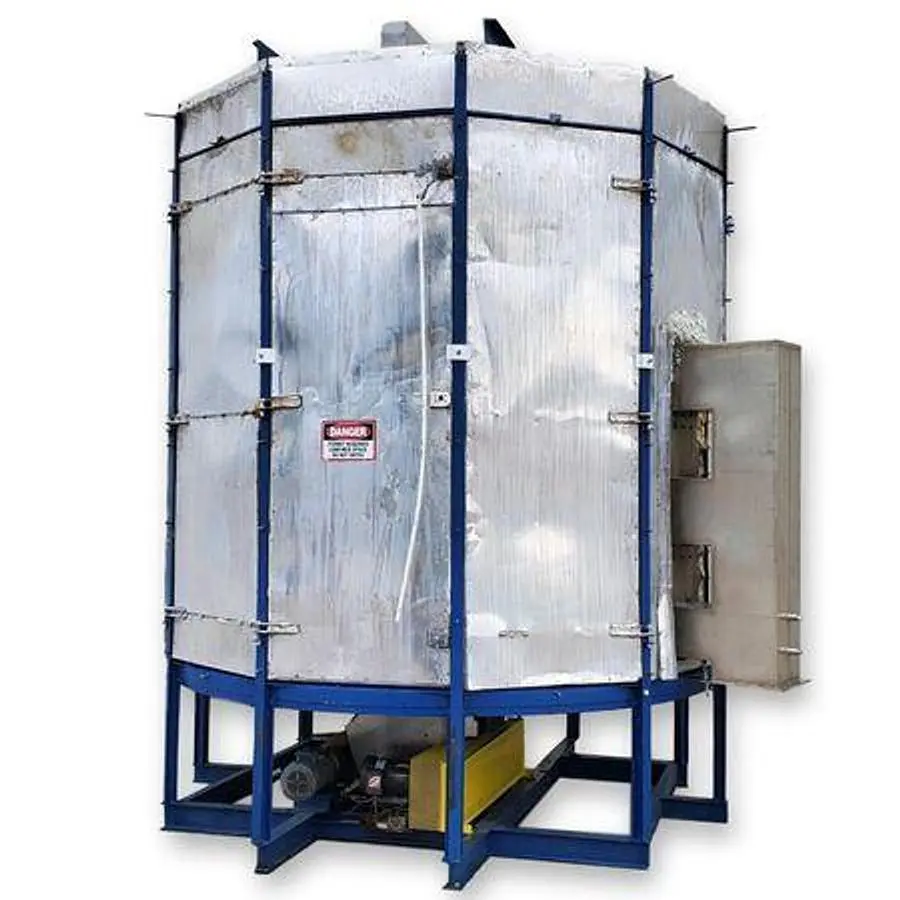

Materials of Construction: Structural steel frame with 1.5" insulated panels, stainless steel sheet cladded
Base Configuration: Decagon (10-sided) shape, measuring 9’-9” across corners
Overall Hight: 11’-7” to roof

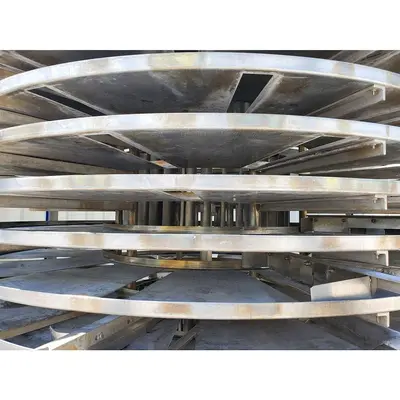

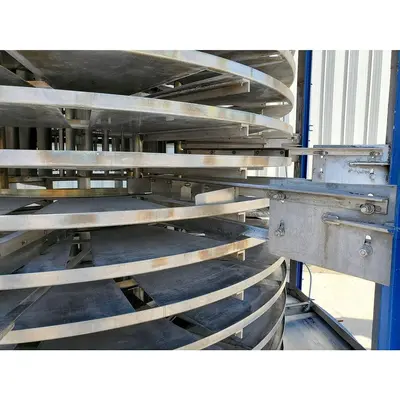

Dryer Trays: 16 trays, each 78” diameter, stacked on 4-11/16” centers
Product Inlet: 5” x 15” sleeve at 12’-7” elevation
Product Discharge: 5.5” x 25.5” opening at 2’-5.5” elevation
Drying Air Outlet: 1.5 HP motor with Roto-clone variable speed pulley

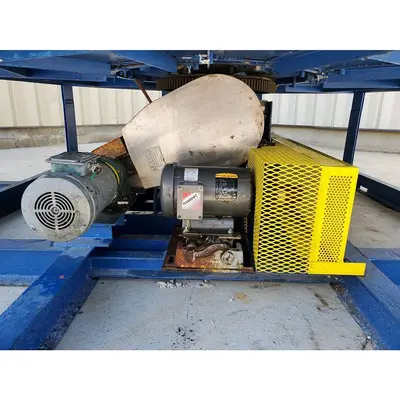

Turbo Fan Drive: 1.5 HP motor with Roto-clone variable speed pulley
Tray Drive: 1 HP gearmotor with chain drive

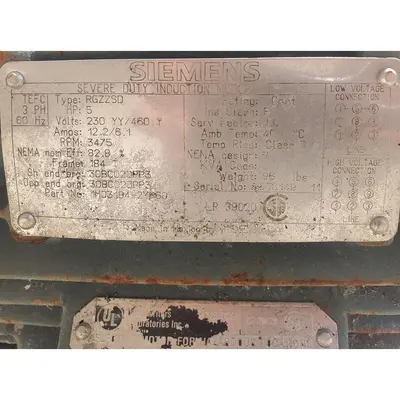

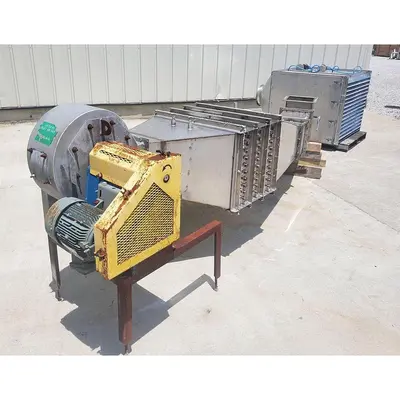

Heater Fan: 5 HP stainless steel backward-incline fan, 3475 RPM
Heating Coils: (3) inline Aerofin steam coil heating units

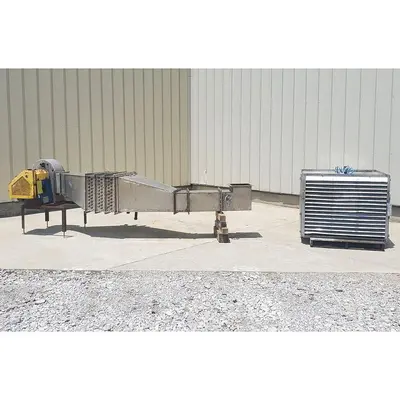

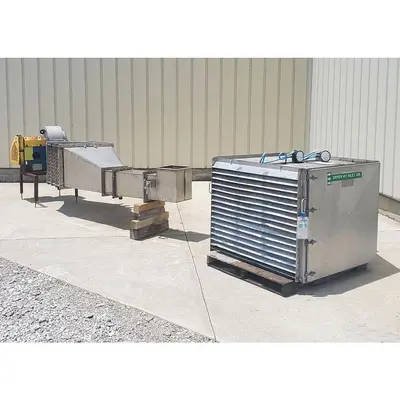

Air Filtration: Inlet air filter housing with 44” W x 35” H HEPA filters
Incudes: Inlet air header and stainless steel ducting
Basis: As In, Where Is
