USED WYSSMONT COMPANY, INC. N-28

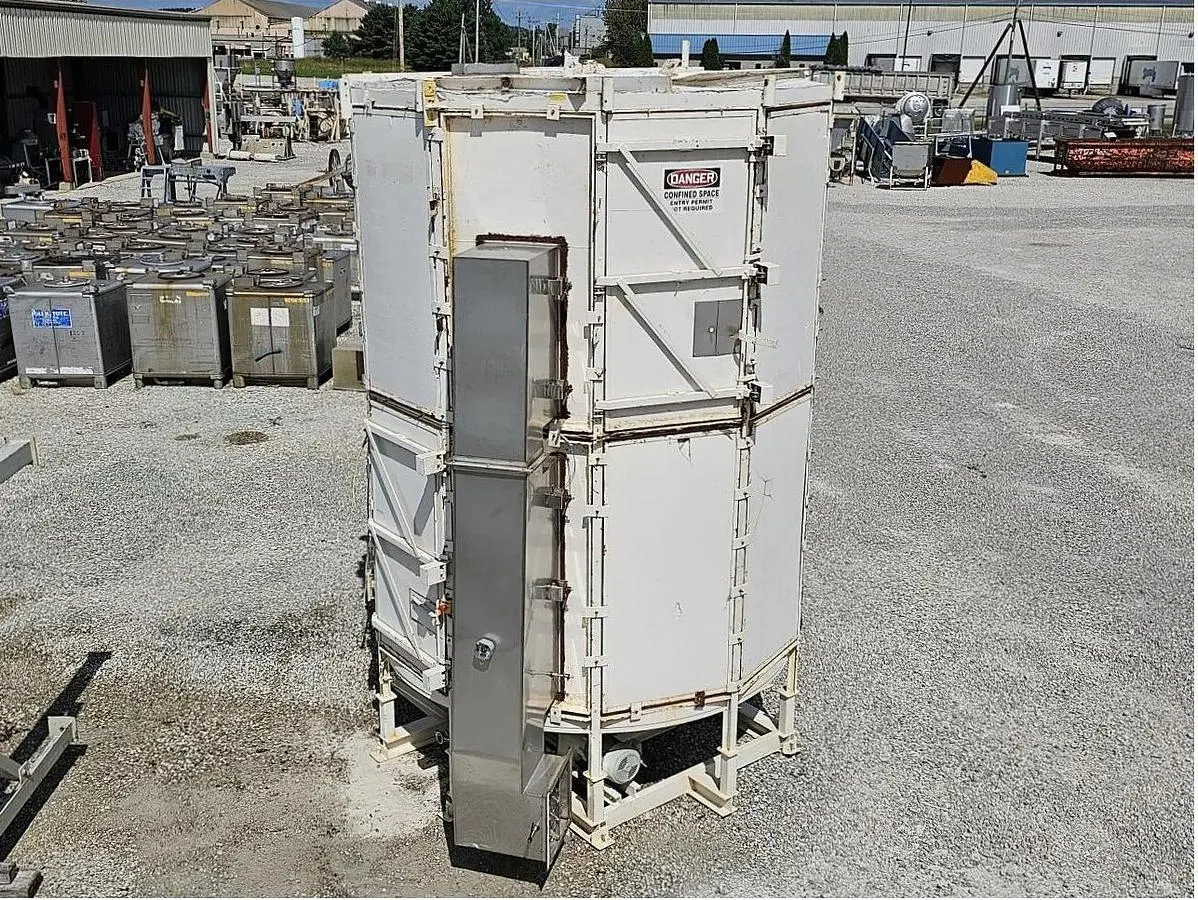

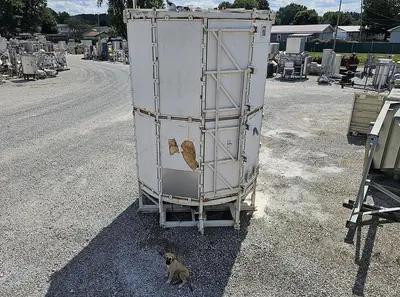

Wyssmont Turbo-Dryer Model N-28, serial number J-256, featuring 304 stainless steel product contact construction and a structural steel insulated housing. The system is equipped with 28 trays (78” diameter each), spaced at 4-5/8”, and provides continuous counterclockwise tray rotation for even drying. The ten-sided base measures 9’-6” across corners, with a total height of approximately 13’-10”. Equipped with a 1.5 HP turbo fan drive, 3 HP tray drive motor, and a stainless steel air inlet header with dampers. Suitable for a broad range of applications in the food, chemical, and industrial processing sectors

Stock Number: 5991638
Manufacturer: Wyssmont Company, Inc.
Model: N-28
Serial Number: J-256
Materials of Construction: Product contact parts in 304 stainless steel
Support Frame: Structural steel with 2” thick insulated panels

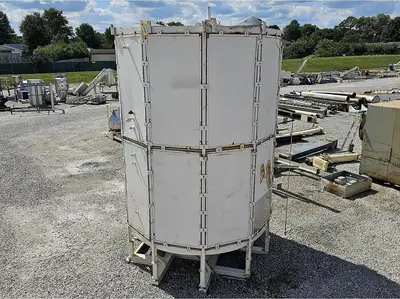

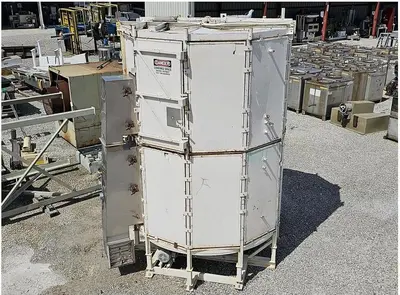

Base Configuration: Ten-sided shape measuring 9’-6” across corners
Overall Hight: 13’-10” to roof

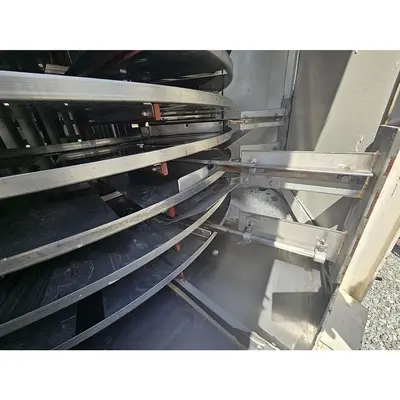

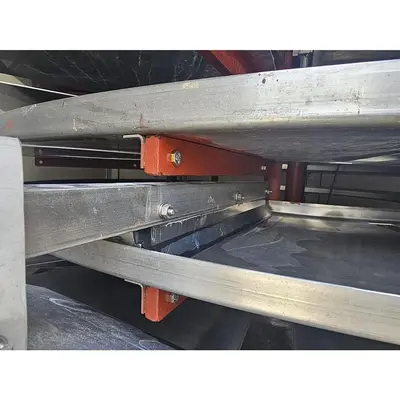

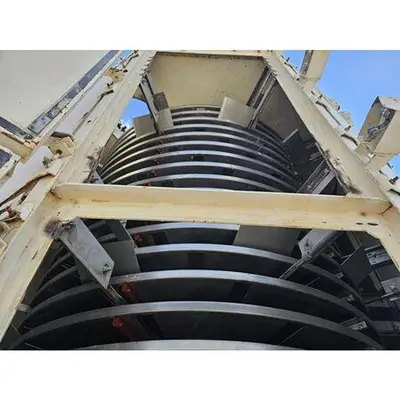

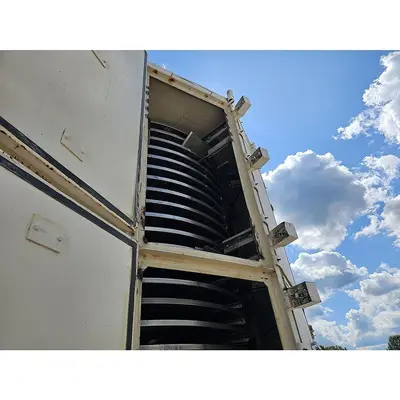

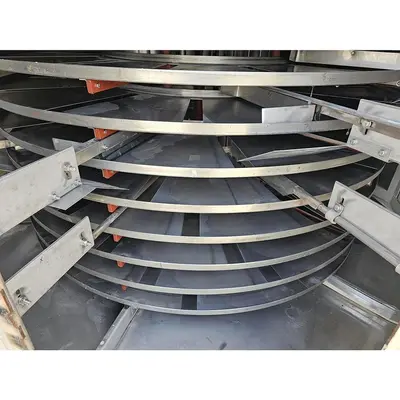

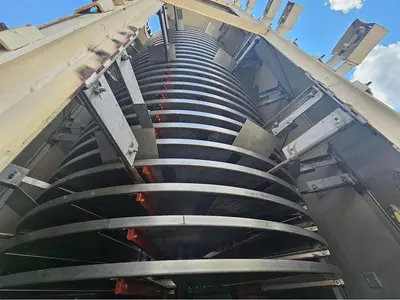

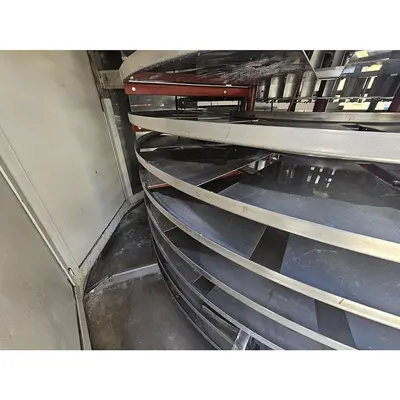

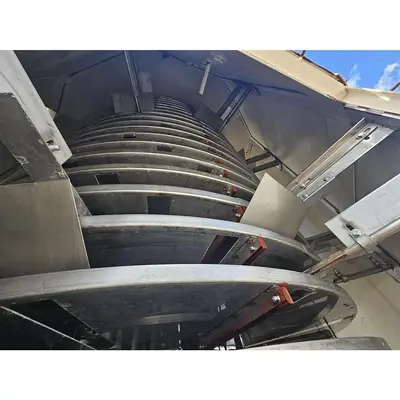

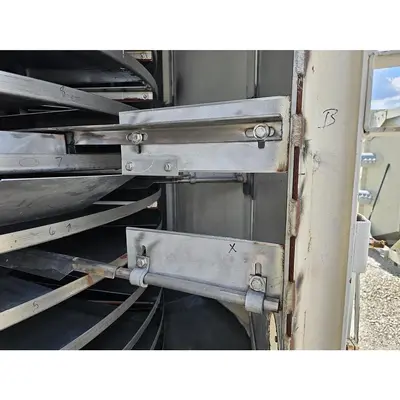

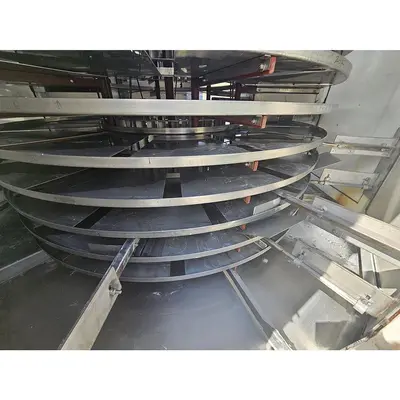

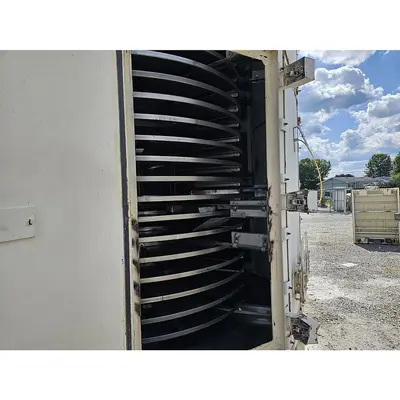

Dryer Trays: 28 trays, each 78” diameter, stacked at 4-5/8” spacing
Tray Roation: Counterclockwise (CCW)

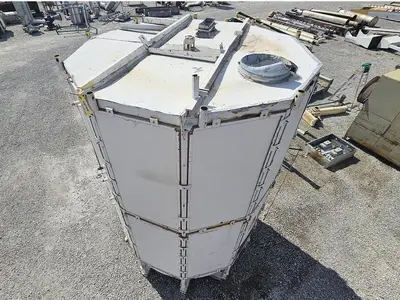

Product Inlet (Roof): 5” x 15” flange @ 14’-2” elevation

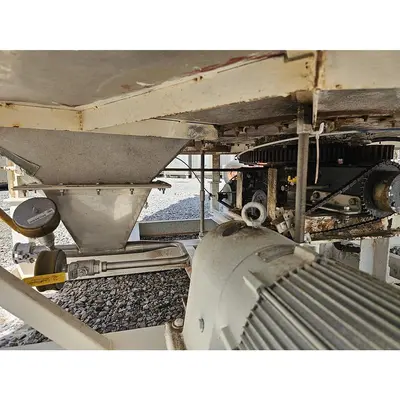

Product Discharge: 5.5” x 23” flange with pneumatic conveying adapter (2” cam-lock)

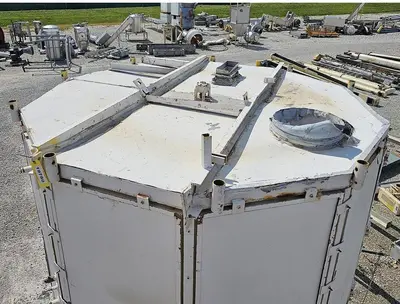

Drying Air Outlet (Roof): 18” diameter opening @ 14’-2” elevation

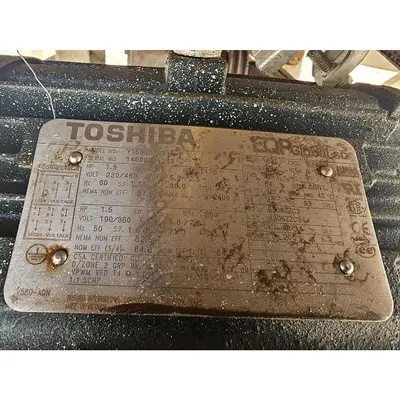

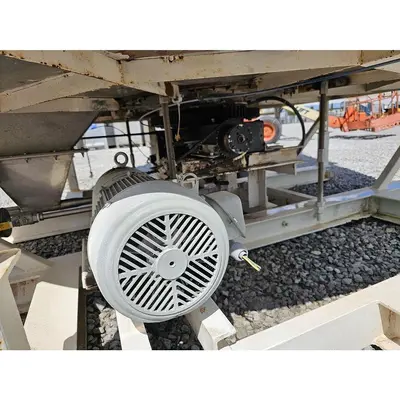

Turbo Fan Drive: 1.5 HP, 230/460V, 60Hz, 3Ph

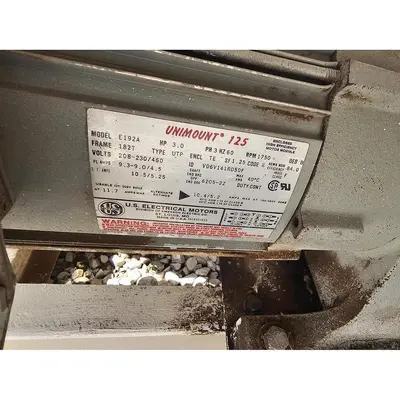

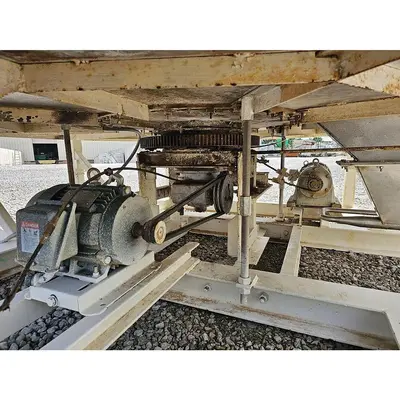

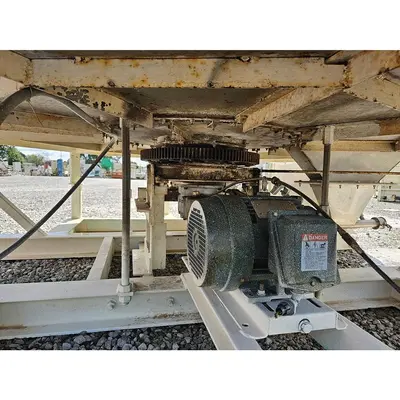

Tray Drive Motor: 3 HP, 230/460V, 60Hz, 3Ph
Includes: Stainless steel air inlet header with dampers
Basis: As Is, Where is
