USED 2015 LVD STRIPPIT DYNA PRESS 24/12

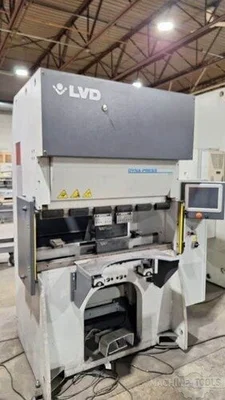

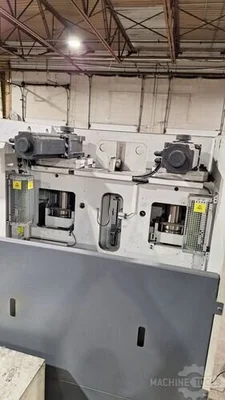

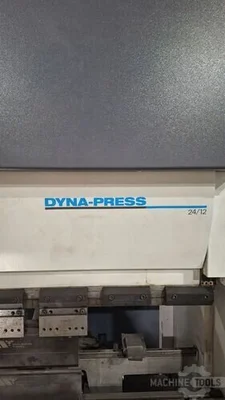

LVD Strippit Dyna Press 24/12 26 Ton x 49" CNC Press Brake (2015)

General Info

Stock #: 181250024
Location: Wyoming, MI
Brand: LVD Strippit
Model: Dyna Press 24/12
Year: 2015
Approx. Shipping Weight: 5,510 lbs
Approx. Shipping Dimensions: L 49.2", W 42.9",H 85.8"
Loading Fee: Rigging Required

Specifications

Bending Force: 26 Tons
Maximum Bending Length: 49"
Distance Between Uprights: 47"
Ram Travel: 47"
Open Height: 13.7"
Throat Depth: 3.9"
Approach Speed: Up to 236 in./min
Working Speed (Bending): Up to 59 in./min
Return Speed: 236 in./min
Backgauge System: 0.39 in./s
Backgauge X-Axis Travel: 9.8"
Backgauge R-Axis Travel: 3.9"
Main Motor Power: 8.0 HP
Voltage: Configurable (480V / 3-Phase)
Top Tooling Compatibility: Universal/W Style/US Style
Bottom Tooling Compatibility: Universal/LVD Style/US Style

Equipped With
Electric Drive Advantage: Ball-Screw Driven Ram For Unparalleled Speed, Repeatability, And Minimal Power Consumption Compared To Hydraulics, High-Speed Production: Working Speed Up To 59 Inches Per Minute Drastically Reduces Cycle Times For Small-To-Medium Parts, Compact & Relocatable: At Approximately 5,510 Lbs, The 24/12 Model Is Built To Be Easily Moved Within Your Facility Using A Standard Forklift, Precision CNC Backgauge: Features A Highly Repeatable X (Depth) And R (Height) Axis Backgauge For Complex, Accurate Part Geometry, Intuitive LVD 12" Touch Screen Control: Provides Simple, Icon-Driven Programming And Operation, Integrated Lightguard Safety System: Ensures Operator Protection During High-Speed Operation, Ergonomic Front Support Table: Allows Operator To Work Comfortably In Either A Seated Or Standing Position.

Additional Info
Inspection Upon Request
