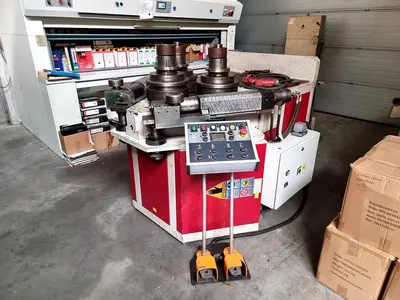

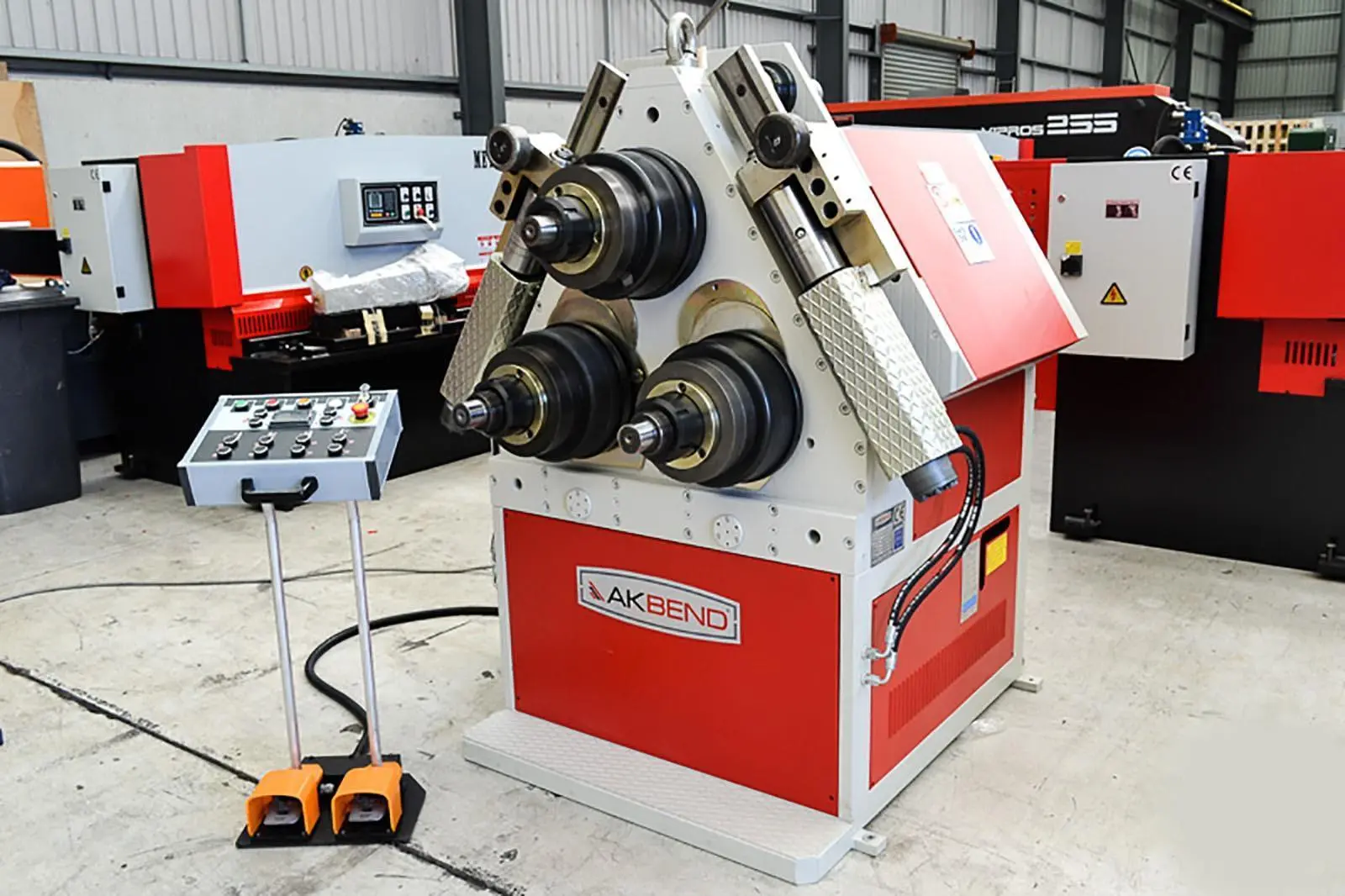

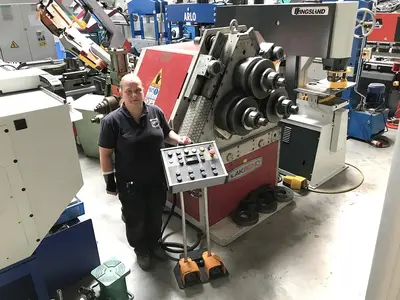

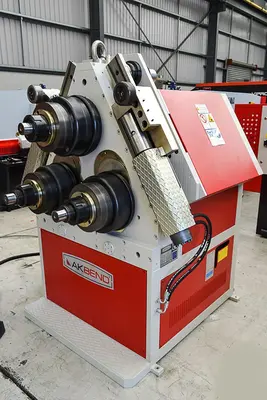

USED AKYAPAK APK 101
Overview
max section cm3: 45 > 80
• Steel (St-52) construction body
• The rolls are driven by a hydraulic motor, planetary gearbox and gears.
• Shafts are made of special steel, hardened and grinded.

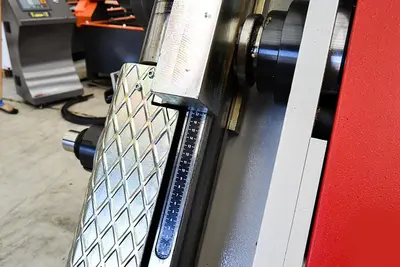

• Guide rolls are adjustable manually in one direction.
• Manual lubrication
• Hydraulically moveable lower rolls up and down.
• Digital display for lower rolls

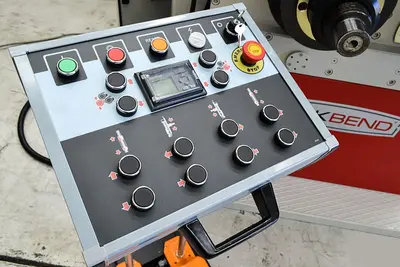

• Separate and moveable control panel
• Horizontal & vertical working
Option fitted: Hydraulic guide rolls
• Variable speed of rotation
• Hydraulically adjustable guide rolls in two directions
• Digital display for hydraulic guide rolls
• NC PIayback Control System

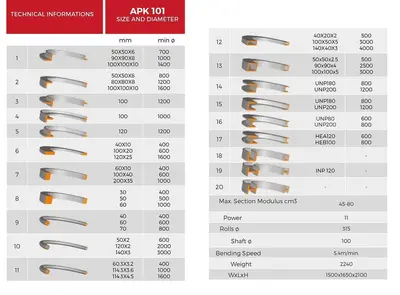

Specs
Read-out: yes
Dia rolls: 315 mm
Dia of die mandrel: 100 mm
Rotationspeed: 5,4 m/min
Motorpower: 11 kW
Length: 1500 mm
Depth: 1650 mm
Height: 2100 mm
Weight: 2240 kg
