Overview
Type:
Measuring Machines
Manufacturer:
MAHR
Model:
DIGIMAR 816 CL
Stock #:
W.05 12497
Description

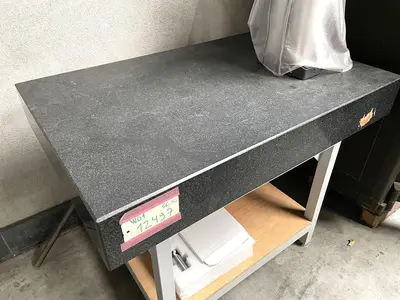

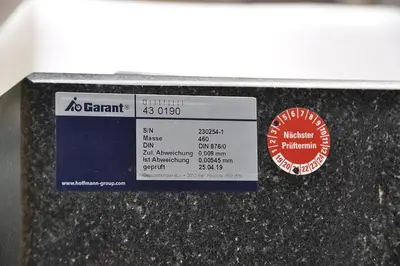

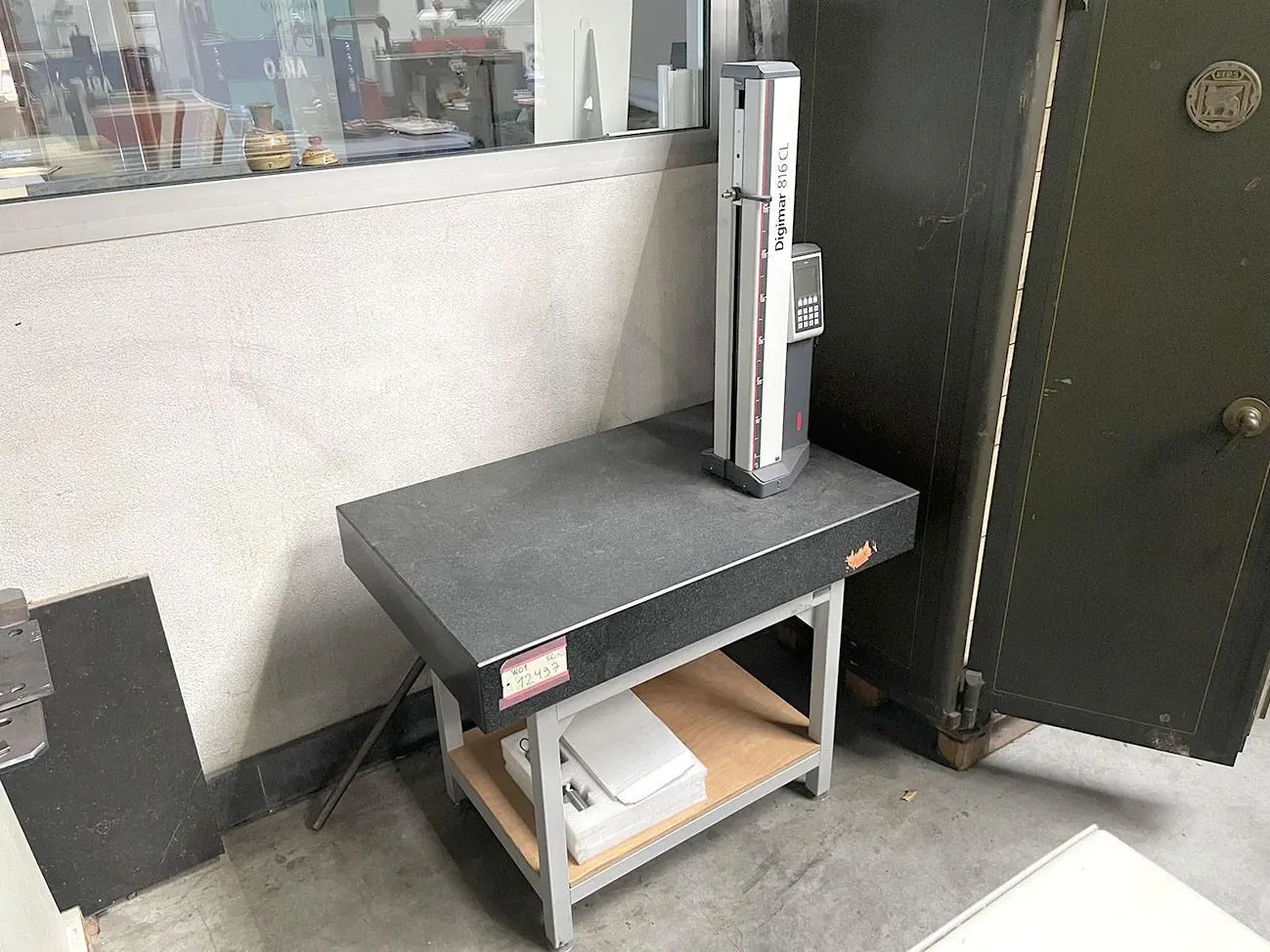

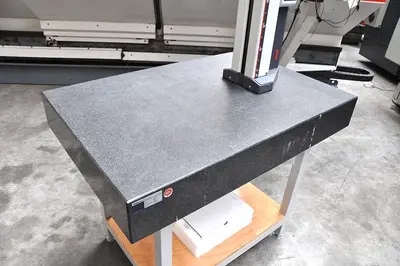

Height measuring instrument + marble table

Measuring range mm: 0 > 600 mm

Resolution: 0.001 mm / 0.01 mm

Error limit: (2.8+L/300) L in mm

Repeatability bores: 3 µm

Repeatability plane: 2 µm

Perpendicularity error in µm: 20 µm

Measuring force (N): 1.0 +/- 0.2 N

Product weight: 30 kg

Standard Data interface: Opto RS-232C / USB / wireless

> Excellent accuracy and reliabilty due to the optical incremental measurement system with the double reader head

> Dynamic probing system enabling high repeatability

> Air bearings system for light and smooth movement

> Precise measuring head on stainlees steel guideways

> Motorized measuring carriage simplifies measurement runs

> Temperature compensation with an integrated temperature sensor

> Probe constant remains after the instrument is switched off

> Integrated rechargeable battery with a long operating time span for power source independent measurement

Operating and display unit
> Easy to read backlit graphic LCD

> Clear function keys

> Language-neutral operator guidance with self-explanatory symbols

> Possible to set additional zero points

> Memory can store up to 99 measured values
