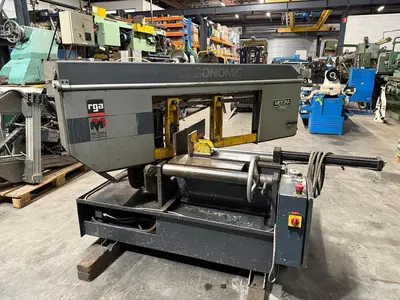

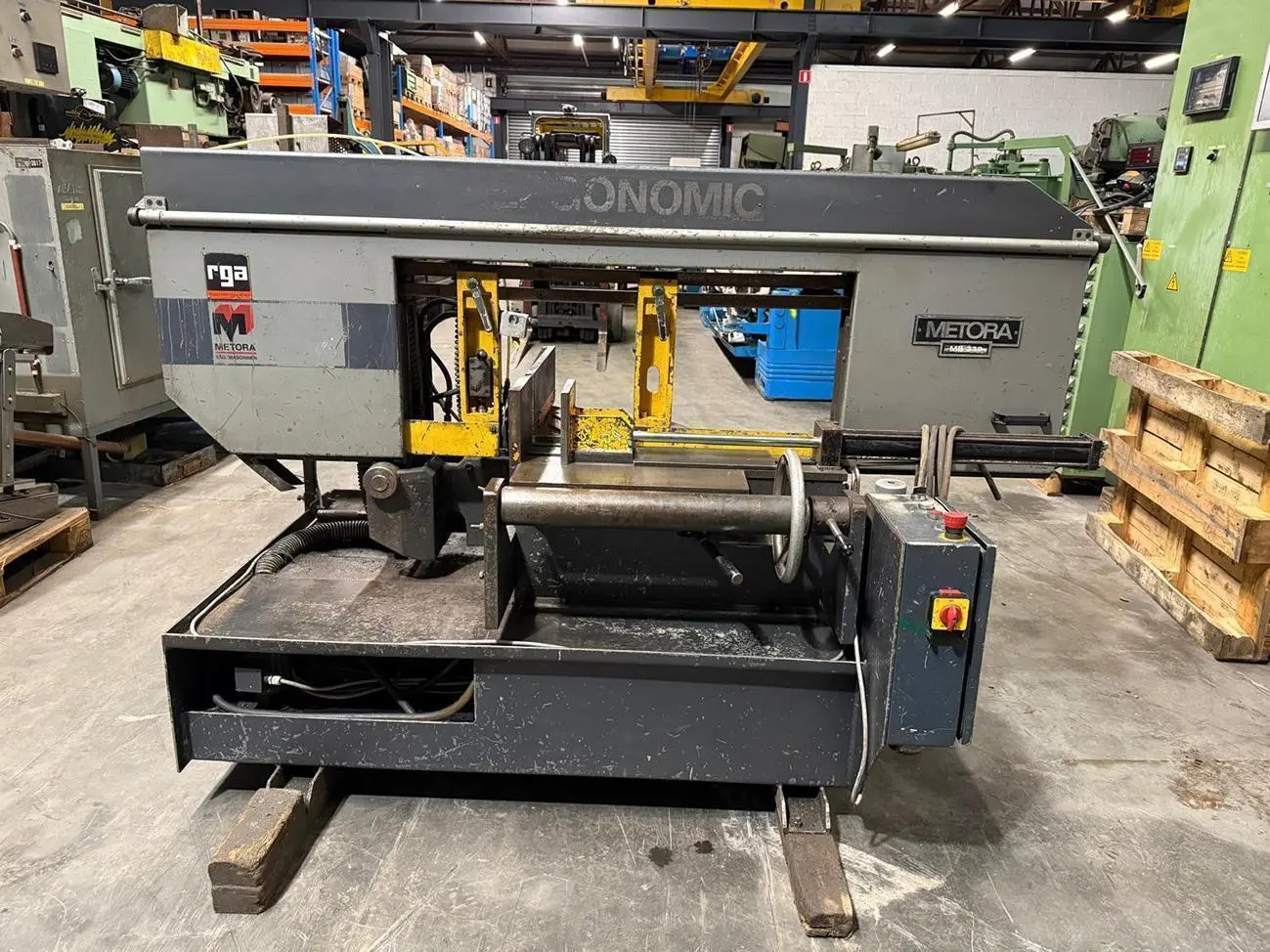

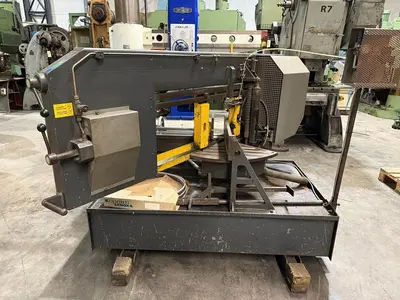

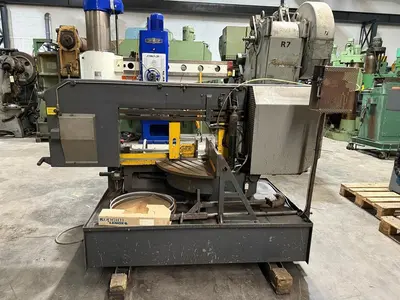

USED METORA MB330

Cutting range:

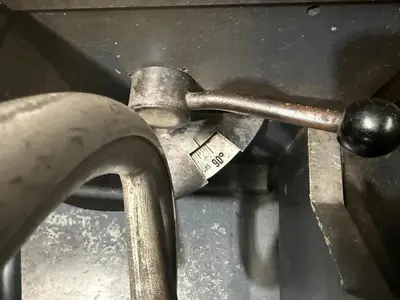

Round 90° and 45° - 320 mm / 30° - 250 mm

Square 90° and 45° - 320 x 320 mm / 30° - 240 x 240 mm

Max. profiles 90° - 500 x 320 mm / 45° - 330 x 320 mm / 30° - 320 x 230 mm
- Saw frame in torsion-free steel construction

- Integrated coolant and hydraulic tank

- Continuous cutting speed regulation on the control panel

- Hydraulic controlled cutting feed adjustable on the control panel

- Automatic hydraulic cutting pressure regulation through band back control

- Carbide-tipped saw band guides combined with ball bearings

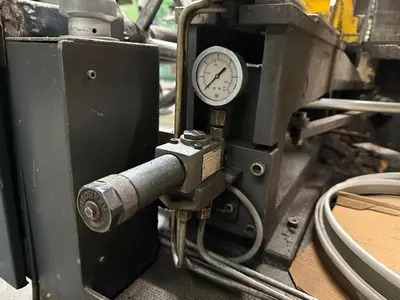

- Band tensioning device with control gauge

Depth of throat: 520 mm

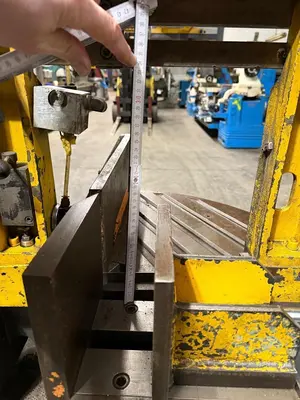

Max height of workpiece: 320 mm

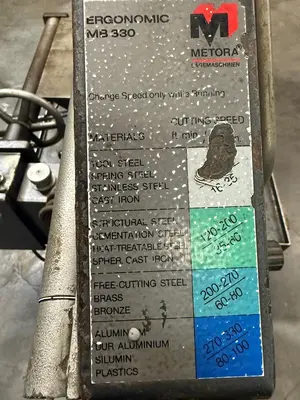

Sawspeed: 16 > 96 m/min
Length of band saw: 4600 x 32 x 1,1 mm
Power needed: 1,5 kW
Length: 2200 mm
Depth: 1400 mm
Height: 1400 mm
Weight: 780 kg
