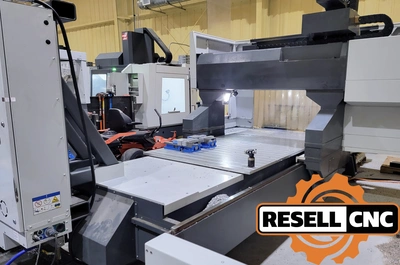

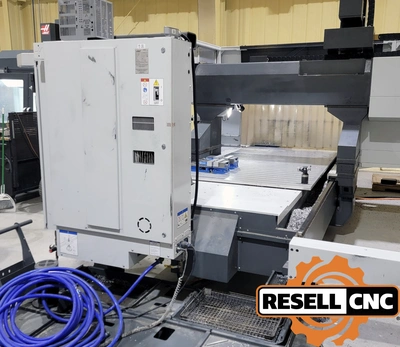

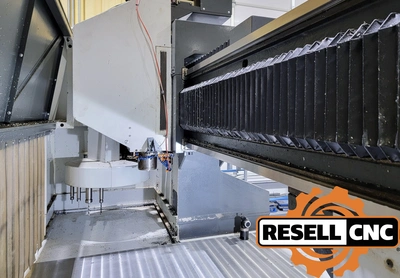

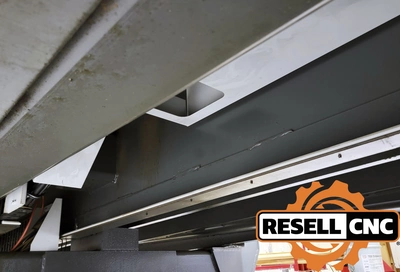

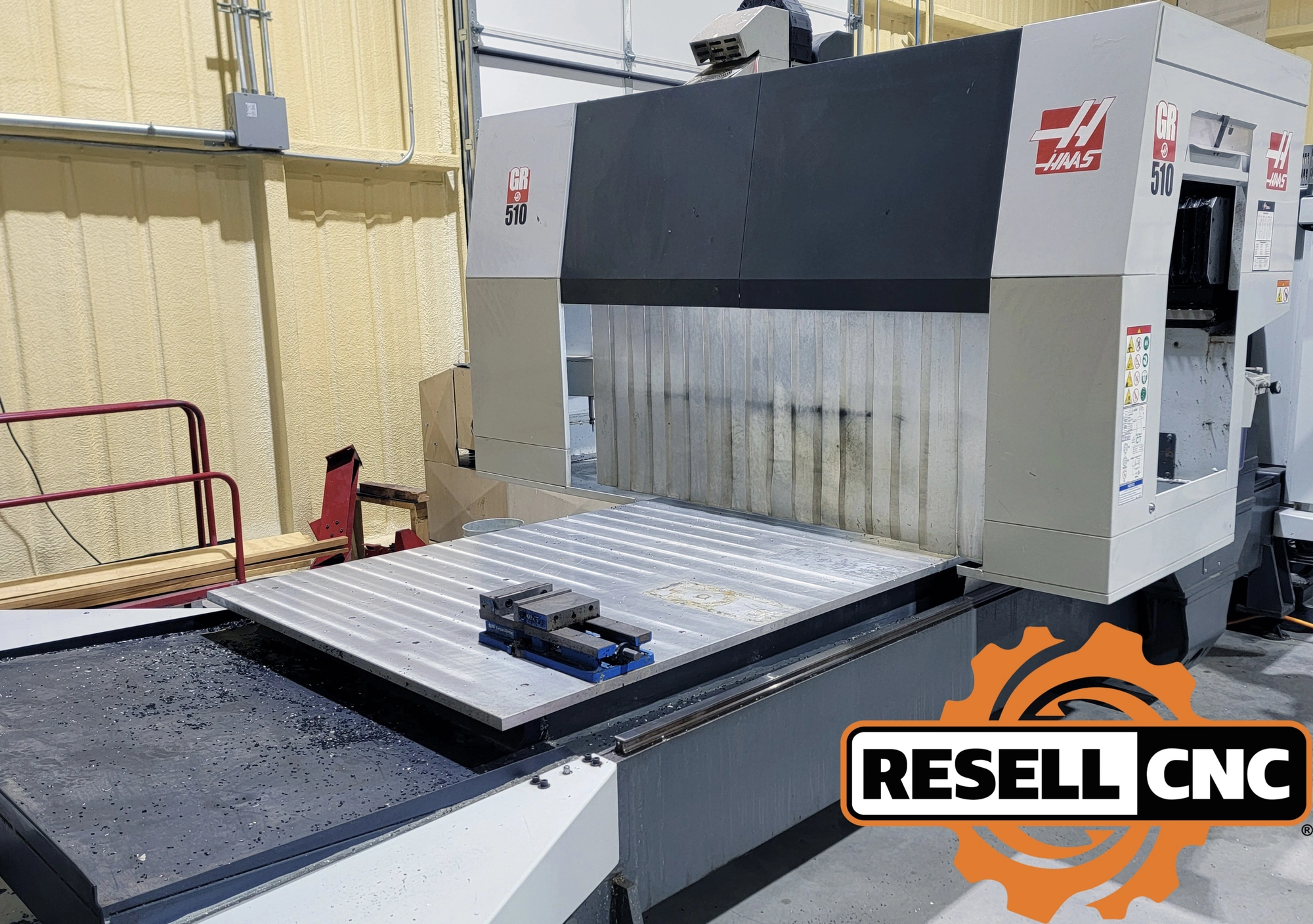

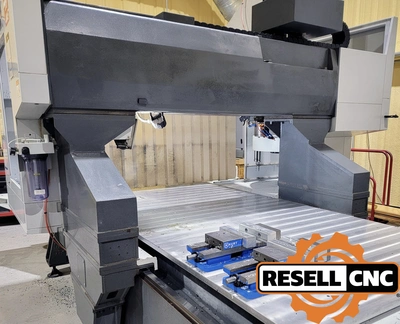

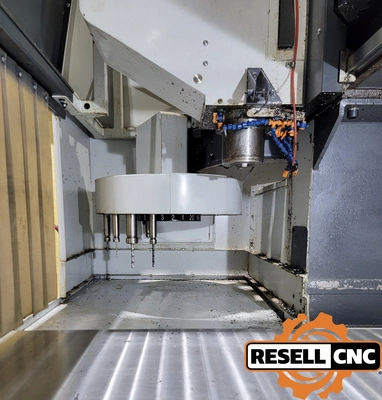

USED 2021 Haas GR-510

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Control Options: Visual Parts Programming

WIPS

Auto Air Gun

Additional Machine Specs: 6" Riser Blocks with Extended Clearance

Early Power Detection Module

Coolant System Through Gantry

Chip Tray Filter Kit

B Axis: false
C Axis: false
Control Make Model: Haas CNC Control
Control Options: High Speed Machining, Remote Jog Handle, Rigid Tapping, Spindle Orientation, Ethernet / LAN, Macros, Rotation and Scaling
Coolant Type S: Programmable Coolant
Cutting Feed Rate: 800
Electrical: 220V
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 6000.0
Max Tool Diameter: 3.5
Max Tool Weight: 12.0
Probe Make Model: Renishaw Probe
Programmable Tailstock: false
Rapid Traverse: 800/2100/1100
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 15
Spindle Nose To Table Top: 2.5-13.5
Spindle Speed: 8100.0
Spindle Taper Type: 40 Taper
Sub Spindle: false
Tailstock: false
Tool Changer Type: Carousel
Tool Magazine Capacity: 20.0
Tool Positions: 10.0
Twin Turret: false
Vertical Table Pallet Size: 122" x 53
X Travel: 121.0
Y Axis: false
Y Travel: 61.0
Z Travel: 11.0
