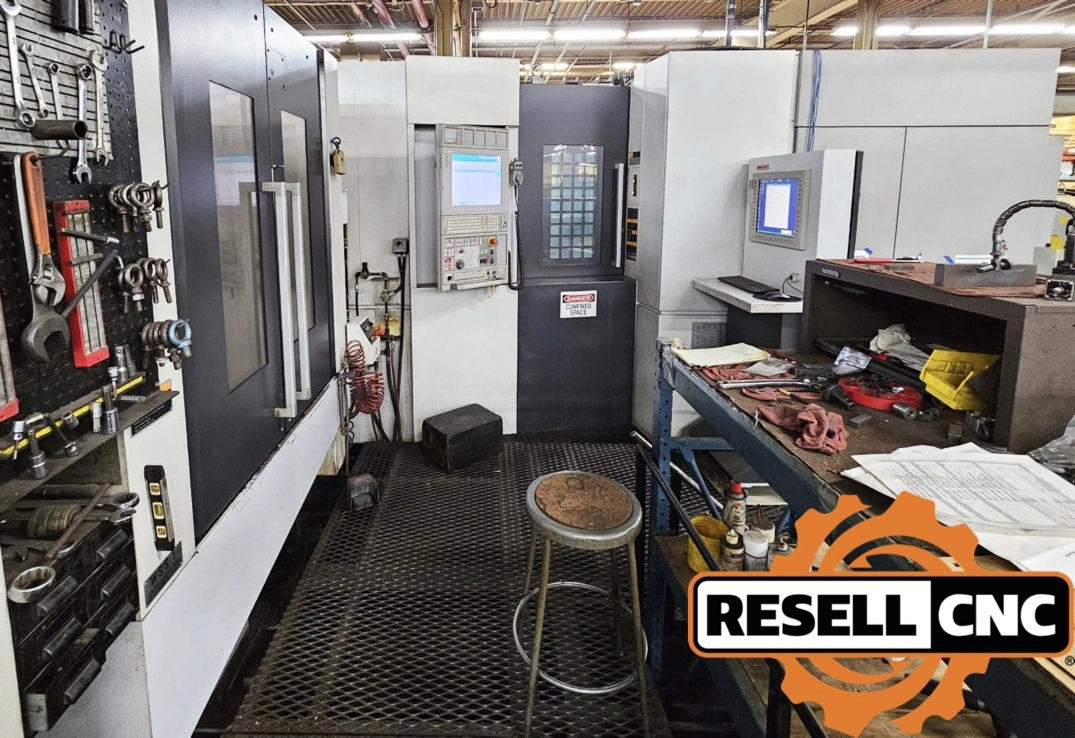

USED 2013 Mori Seiki NH6300DCGII

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Distance From Floor Surface To Pallet Surface: 49.2″

Max. Workpiece Swing Diameter: 41.3″

Max. Workpiece Height: 51.1″

Pallet Surface Configuration: 24 Holes, M16 Tap, Pitch 5″

Minimum Pallet Indexing Angle: 1°

Pallet Indexing Time (Including Clamping And Unclamping): 2.0 Seconds (90°), 2.5 Seconds (180°)

Workpiece Setup Specifications: 45 Degree Turn Table System

Number Of Spindle Speed Ranges: 1

Spindle Bearing Inner Diameter: 3.9″

Max. Rotational Speed: B: 38.5 RPM

Jog Feedrate: 0 – 197.0 Ipm (20 Steps)

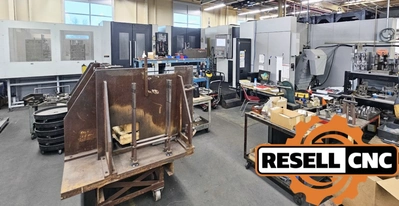

**Includes over (300) Assorted CAT50 Tapered Tool Holders consisting of: Collet Chucks, Endmill holders, Shellmill holders, indexable Boring mills, Morse tapered chucks and Custom made Welded Steel-Platform**

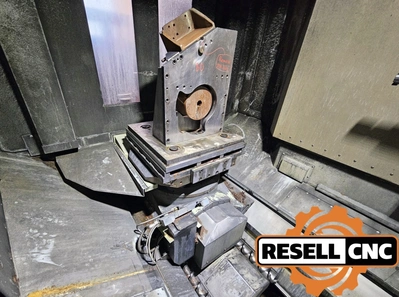

Pallets, Tombstones, Control Panel, Pendant and Manuals

B Axis: false
C Axis: false
Chip To Chip Time: 4.4

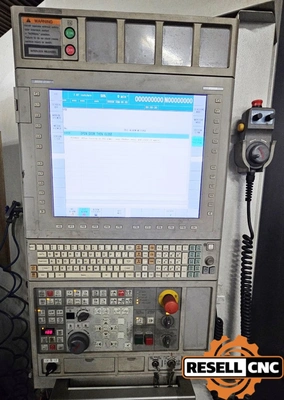

Control Make Model: F31iA CNC Control
Control Options: Remote Jog Handle
Cutting Feed Rate: 0.04/1968.5
Horizontal Table Pallet Size In MM: 630.0
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 3300.0
Max Tool Diameter: 4.3
Max Tool Diameter Adjacent: 12.5
Max Tool Length: 24.8
Max Tool Weight: 66.0

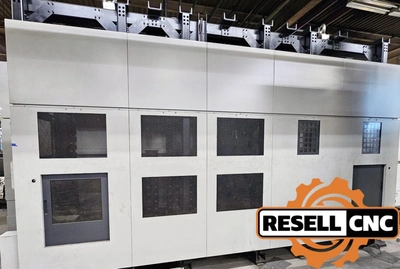

Number Of Pallets: 12.0
Programmable Tailstock: false
Rapid Traverse: 1968.5
Single Turret: false
Single Turret Live Tooling: false
Spindle Center To Table Top: 3.9-39.4
Spindle Motor: 40
Spindle Speed: 10000.0
Spindle Taper Type: CAT#50
Sub Spindle: false
Table Pallet Indexing: 1 Degree
Tailstock: false
Tool Changer Type: Chain
Tool Change Time: 1.7
Tool Magazine Capacity: 330.0
Twin Turret: false
X Travel: 41.3
Y Axis: false
Y Travel: 35.4
Z Travel: 38.6
