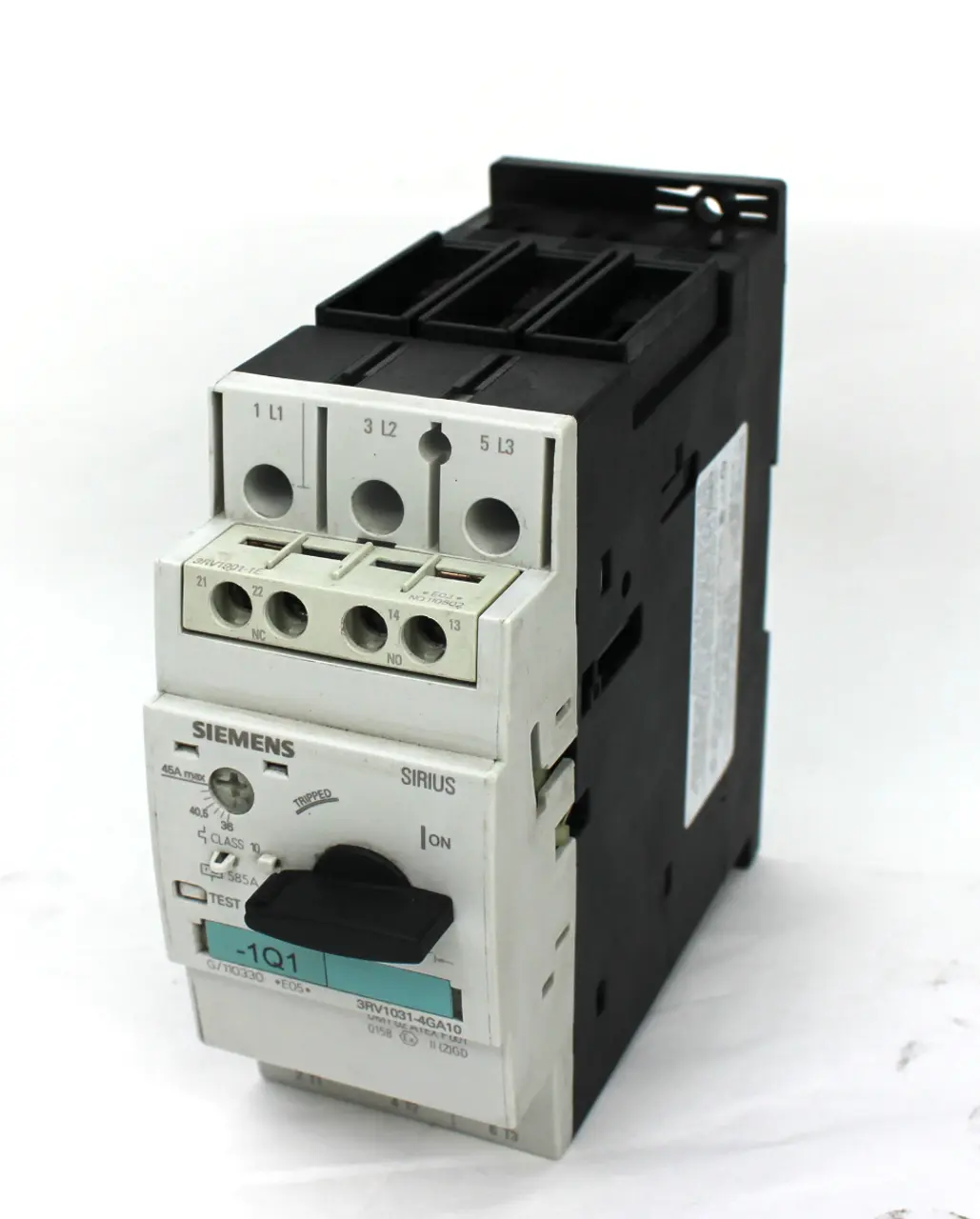

USED SIEMENS 3RV1031-4GA10

Siemens 3RV1031-4GA10 Molded Case Breaker 600 Volts
- Breaking Capacity : 4 kA @ 690 V
- Current Rating : 36 to 45 A
- For Use With : Class 10 Electrical Motor
- Number of Poles : 3
- Series : 3RV1 Series
- Terminal Type : Screw
- Voltage Rating : 690 V
Torque :
- 3...4,5 Nm
- 27 to 40 LB.IN
- 0,8...1,2 Nm
- 7 to 10.3 LB.IN
MADE IN GEMRANY

SKU: IP12785
UPC: 635510922506
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 635510922506
Mounting Style: DIN Rail
Country/Region of Manufacture: Germany
Constant Stall Torque: 27-40/7-10.3 IB.IN
Manufacturer: Siemens
Poles: 3
Phase: 3
Part Number: 3RV1031-4GA10
Nm: 3...4,5Nm / 0,8...1,2Nm
Hz: 50/60Hz
Shelf: J-17
Model: 3RV1031-4GA10
MPN: 3RV1031-4GA10
Voltage: 600V
Type: Case Breaker
Hertz: 50/60Hz
Neuton Meter: 3...4,5Nm / 0,8...1,2Nm
