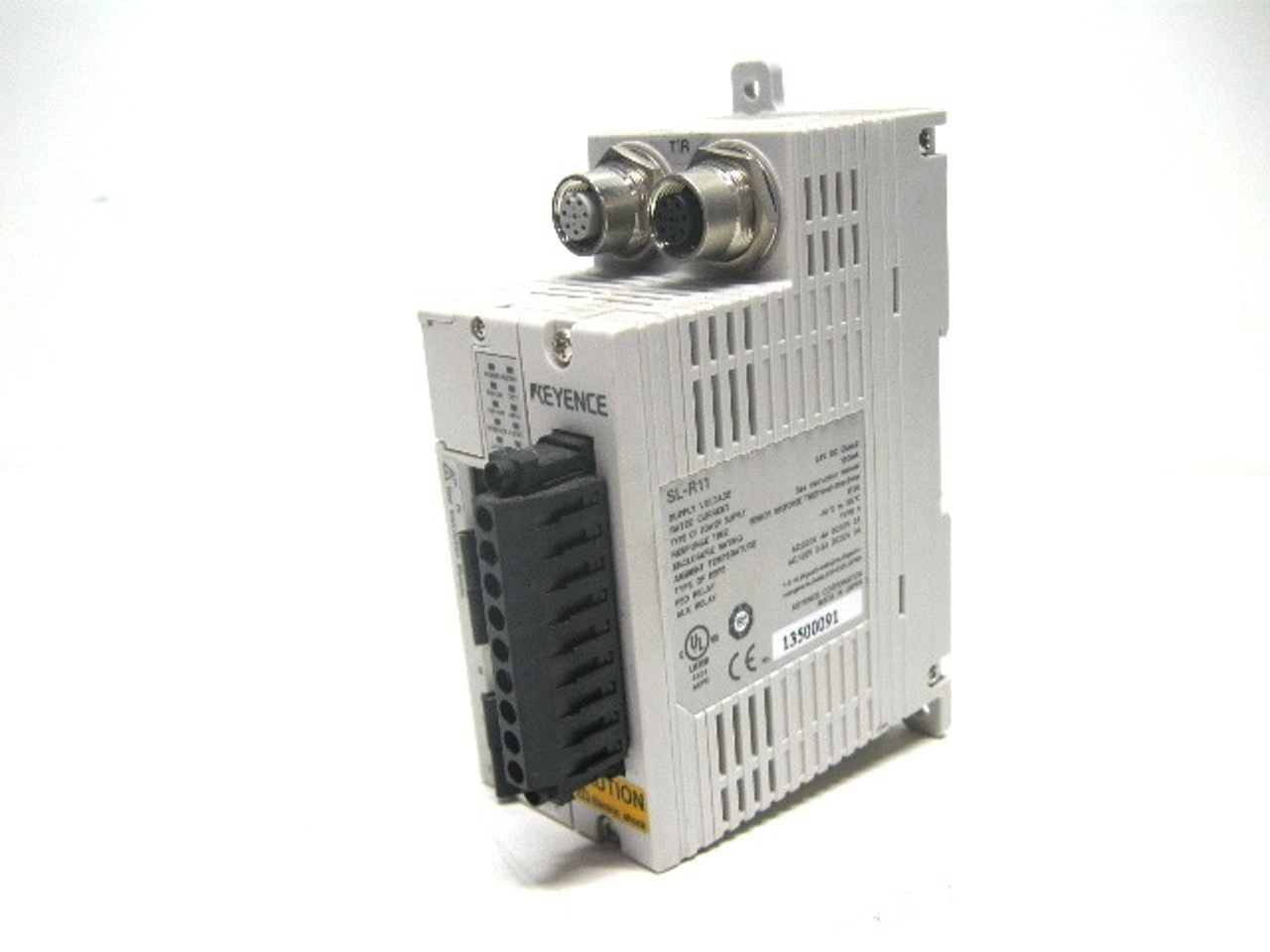

USED KEYENCE SL-R11

Keyence SL-R11 Light Curtain Safety Relay
Model
SL-R11
Rating
Power voltage
24 VDC å±10% ripple (P-P) å±10% max.
Current consumption.
150 mA max. (for SL-R11 only)
OSSD output
Output type
‰Û¥
Max. load current
OFF-state voltage
Leakage current
Max. capacitive load
Load wiring resistance
Safety light curtain
SL-C Series
FSD 1,2
230 VAC 4 A 30 VDC 2 A (resistive load)
230 VAC 2 A (cos Ì÷ = 0.3) (inductive load)
30 VDC 1 A (cos Ì÷ = 0.3) (inductive load)
SL-R11 output
Lifespan
Mechanical life: 10 million times min.
Electrical life: 100000 times min.
Response speed when E-STOP is input
20 ms
AUX
125 VAC 0.5 A 30 VDC 2 A (resistive load)
125 VAC 0.25 A (cos Ì÷ = 0.3) (inductive load)
30 VDC 1 A (cos Ì÷ = 0.3) (inductive load)
Response speed FSD1, 2 AUX
24 ms (including sensor response time)
*1
Environmental resistance
Enclosure rating
IP20 (IEC60529) (Install in control panels which is equal to or greater than IP54)
Ambient temperature
-10 to +55å¡C (14 to 131å¡F), No condensation
Ambient temperature for storage
-10 to +60å¡C (14 to 140å¡F), No freezing
Relative humidity
35 to 85%RH (no condensation)
Storage relative humidity
35 to 95%RH (no condensation)
Vibration
10 to 55 Hz double amplitude 0.7 mmåÊ
0.03"
, 20 sweeps each for X, Y, Z directions
Shock resistance
100 m/s
2
åÊ(Approx 10G) 16 ms pulse, in X, Y, Z directions 1000 times each axis
Material
Polycarbonate
Approved standards
EMC
EMS
UL61496-1
*2
EMI
FCC Part 15 Class A
*2
Safety
UL61496-1 (type 4 ESPE)
UL61496-2 (type 4 AOPD)
UL508
*2
Weight
Approx 380 g

SKU: IP3647
UPC: 646412778498
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Shelf: F-19 TUB 1
GTIN: 646412778498
Country/Region of Manufacture: Japan
Manufacturer: Keyence
Part Number: SL-R11
Series: SL-C
Model: SL-R11
MPN: SL-R11
Voltage: 24VDC
Type: Light Curtain Safety Relay
