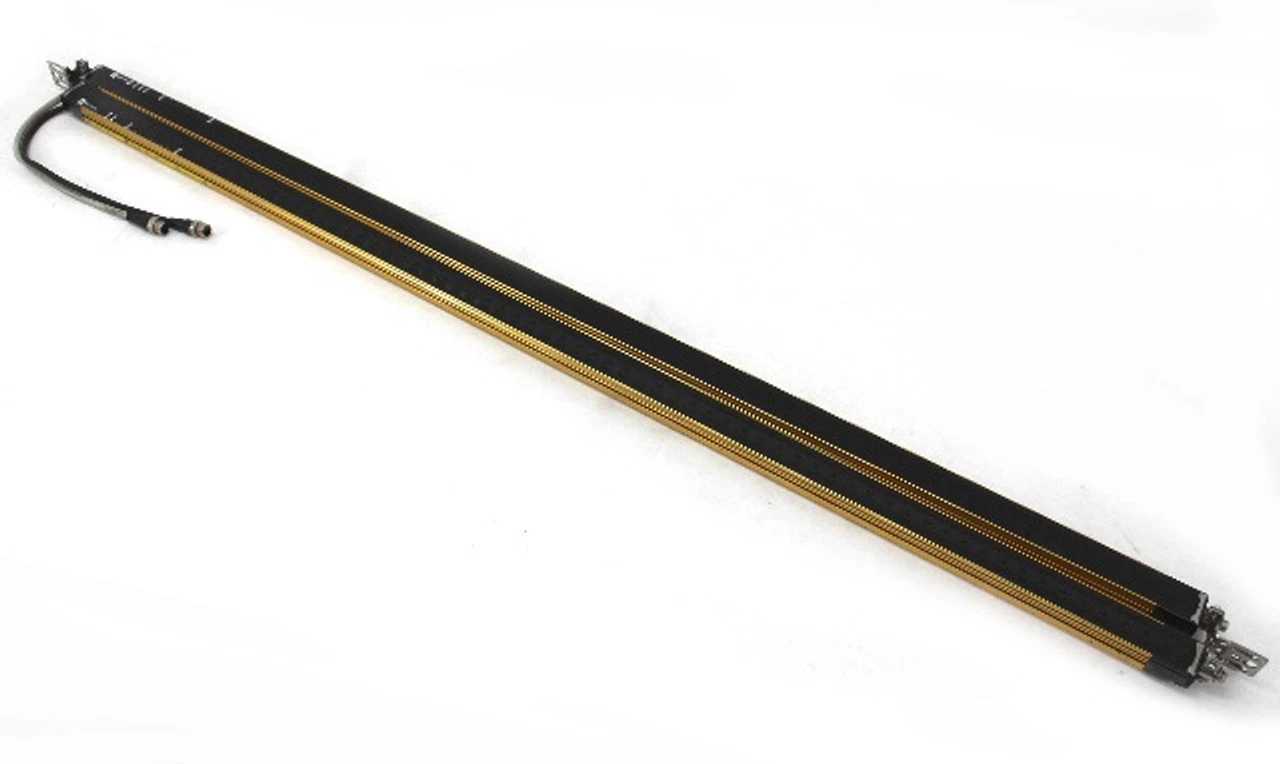

USED OMRON F3SJ-A1115P20

Omron F3SJ Series Light Curtains F3SJ-A1115P20 Emitter and Receiver 1115mmåÊProtective Height
Number of Beams: 61
Protective Height: 1115mm
Performance
Resolution: 14 mm, 20 mm, 25 mm, 30 mm, 55 mm
Protected Height: 14 mm ‰ÛÒ 245 to 1631 mm (9.6 to 64.2 in.)
20 mm, 25 mm and 30 mm ‰ÛÒ 245 to 2495 mm (9.6 to 98.2 in.)
55 mm ‰ÛÒ 270 to 2470 mm (10.6 to 97.2 in.)
Operating Range: 0.2 to 9 m for all protective heights up to 1640 mm (64.6 in.)
0.2 to 7 m for all protective heights longer than 1640 mm (64.6 in.):
Effective Aperture Angle: å±2.5å¡ maximum, transmitter and receiver at operating range greater than 3 m (9.8 ft.)
Response Time: For 14 mm resolution systems up to 983 mm (38.7 in.) protected height
‰ä_
17.5 ms
For 14 mm resolution systems above 983 mm (38.7 in.) protected height
‰ä_
25 ms
For 20 mm resolution systems up to 1205 mm (47.4 in.) protected height
‰ä_
15 ms
For 20 mm resolution systems above 1205 mm (47.4 in.) protected height
‰ä_
22.5 ms
For 25 mm resolution systems up to 1600 mm (63.0 in.) protected height
‰ä_
15 ms
For 25 mm resolution systems above 1600 mm (63.0 in.) protected height
‰ä_
20.0 ms
For 30 mm resolution systems, all protected heights
‰ä_
17.5 ms
For 55 mm resolution systems, all protected heights
‰ä_
13 ms
Safety Output Rating: Two 24 VDC PNP outputs sourcing 300 mA max.
Auxiliary (Non-Safety) Output Ratings: One 24 VDC PNP output sourcing 300 mA max.
Light Source: Infrared LED, 870 nm
Indicators: Transmitter: 5 LED Light Level Indicators, 3 LED Error Indicators, Power, Interlock, EDM, Blanking/Test
Receiver: 5 LED Light Level Indicators, 3 LED Error Indicators, Machine Run, Machine Stop
Mechanical
Enclosure: Anodized aluminum housing
Cable Length: Optional cables are available up to 20 m (65.6 ft.) in length
Transmitter and Receiver Cable
Connections:åÊM12, 8-pin
Electrical
Power Supply: 24 VDC å± 20%
Environmental
Protection Rating: IP65
Operating Temperature: -10 to 55å¡C (14 to 131å¡F)
Storage Temperature: -30 to 70å¡C (-22 to 158å¡F)
Relative Humidity: 35 to 85% non-condensing
Vibration: 10 to 55 Hz, double amplitude of 0.7 mm, 20 sweeps in X, Y, and Z directions
Shock: 100 m/s
2
, 1000 times each in X, Y and Z directions
Approvals ESPE Type 4 (IEC 61496-1/ -2)
Category 4 / PL e (EN ISO 13849-1)
SIL3 / SIL3 CL3 (IEC 61508)UL508, UL1998, CAN/CSA-C22.2 No. 14, CAN/CSA-C22.2 No. 0.8
Be sure to view our other light curtains

SKU: IP6287
UPC: 641752903128
Condition: Used
Availability: In Stock
Weight: 8.00 LBS
Width: 6.00
(in)
Height: 6.00
(in)
Depth: 50.00
(in)
Shipping: Calculated at Checkout
Type: Light Curtain
Voltage: 24Vdc
MPN: F3SJ-A1115P20
Model: F3SJ-A1115P20
Series: F3SJ
Manufacturer: Omron
Country/Region of Manufacture: Japan
Sensor Type: Solid State
GTIN: 641752903128
