USED SUNX NA40-12

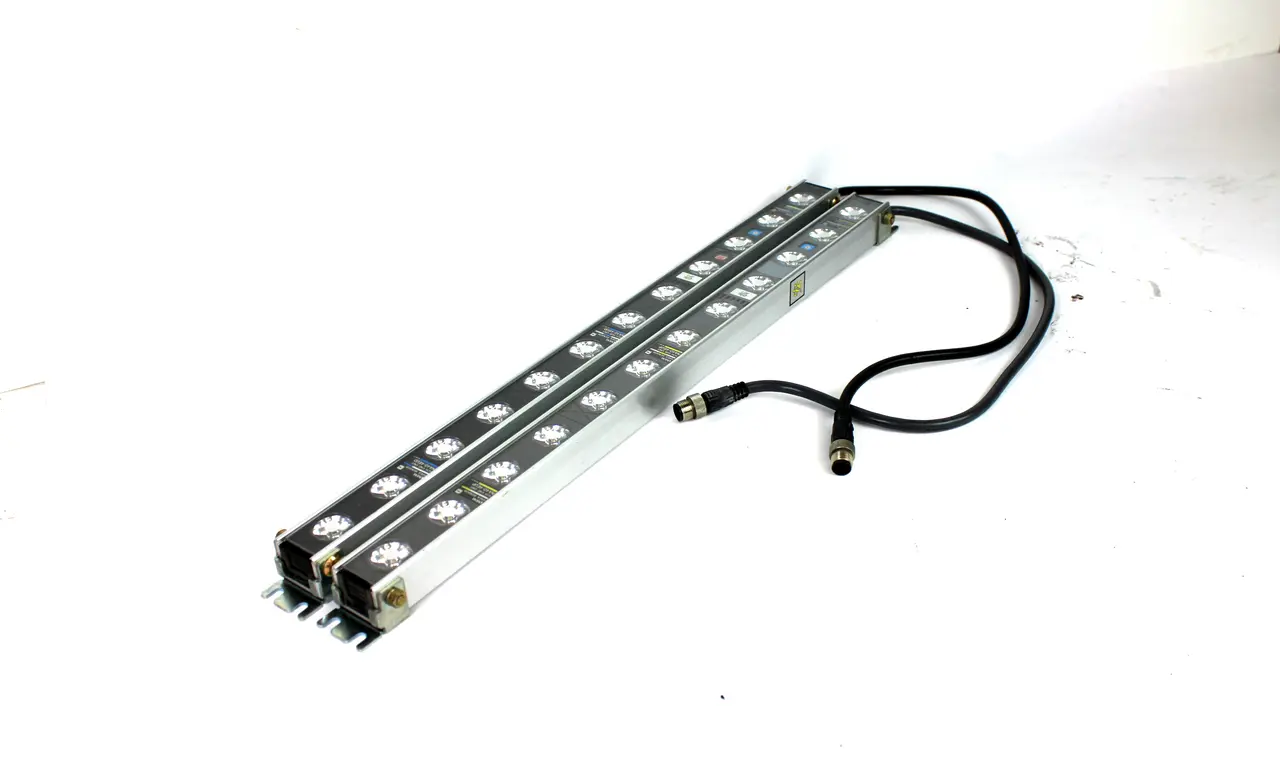

Sunx NA40-12 P/D Area Sensor Emitter and Receiver, 440mm Sensing Height
-Sensing Height: 440 mm
-Sensing Range: 5m
-Beam Pitch: 40mm
-Sensing Object: Ø60mm
-Supply Voltage: 12-24V DC ±10% Ripple
-Current Consumption: Emitter- 35mA or less   Receiver- 90mA or less
-Sensing Output: NPN open-collector transistor
      -Maximum sink current: 100mA
      -Applied Voltage: 30V DC or less
      -Residual Voltage: 1.6V or less (at 100 mA sink current)
-Response Time: 12ms or less
-IP65 IEC
-Ambient Temp.: -10 to +50°C
-Voltage Withstandability: 1000 V AC for one min. between all supply terminals connected together and enclosure
-Vibration Resistance: 10-55Hz
MADE IN JAPAN

SKU: IP11247
UPC: 646412854567
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 6.00
(in)
Height: 6.00
(in)
Depth: 23.00
(in)
Shipping: Calculated at Checkout
Type: Area Sensor Receiver and Emitter
MPN: NA40-12
Model: NA40-12
Shelf: LC Bin
Response Time: 12ms
Part Number: NA40-12
Manufacturer: Sunx
Sensible Object: 60mm
Country/Region of Manufacture: Japan
Sensor Type: Solid State
