USED OMRON F3SN-B1207P25

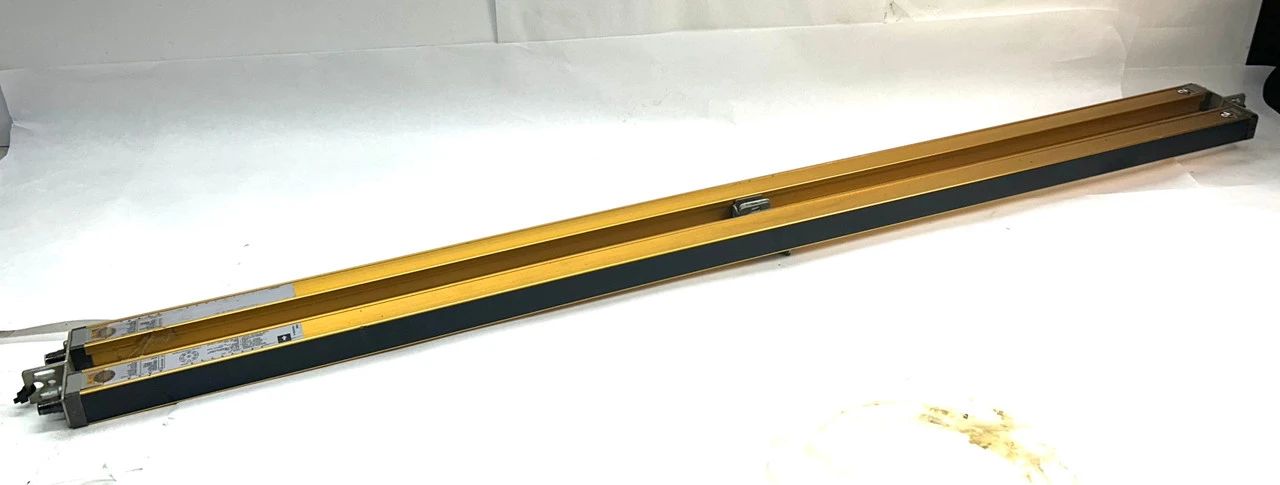

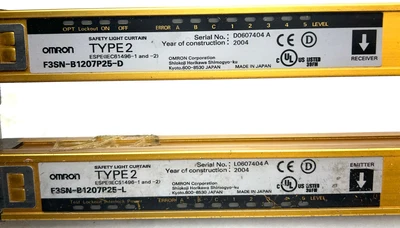

Omron F3SN-B1207P25-L & F3SN-B1207P25-D Safety Light Curtain Set, 1200mm, 25mm Resolution
Protective Height:
1200 mm
Number of Beams:
48
Beam Pitch (Resolution):
25 mm
Sensing Range:
Up to 7 meters (depending on model and alignment)
Response Time:
Approx. 10 ms
Light Source:
Infrared LED
Safety Category:
Type 2 (EN 61496-1 / EN 61496-2)
Enclosure Rating:
IP65 (Dust-tight and water jet resistant)
Power Supply Voltage:
24 VDC ±10%
Current Consumption:
Emitter: ~50 mA
Receiver: ~100 mA
Output Type:
PNP or NPN (varies by wiring)
Output Capacity:
100 mA (max), short-circuit protected
Operating Temperature:
-10°C to +55°C (14°F to 131°F)

SKU: IP15445
UPC: 721814244465
Condition: Used
Availability: In Stock
Weight: 15.00 LBS
Width: 6.00
(in)
Height: 60.00
(in)
Depth: 6.00
(in)
Shipping: Calculated at Checkout
Manufacturer: Omron
Part Number: F3SN-B1207P25
Shelf: LC Bin 3
Model: F3SN-B1207P25
MPN: F3SN-B1207P25
Type: Safety Light Curtain Set
GTIN: 721814244465
