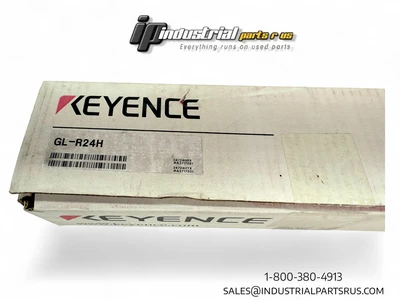

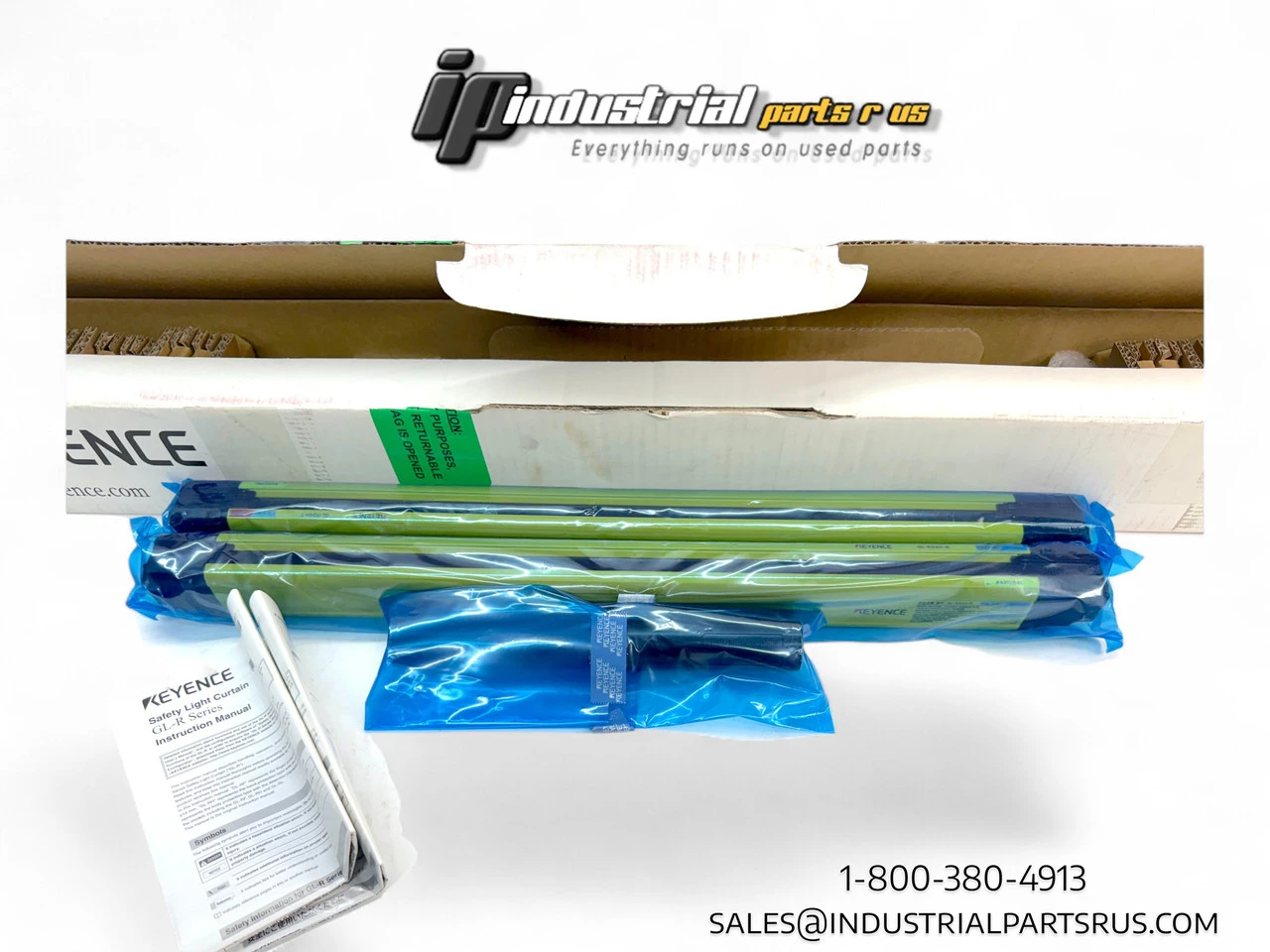

NEW KEYENCE GL-R48H

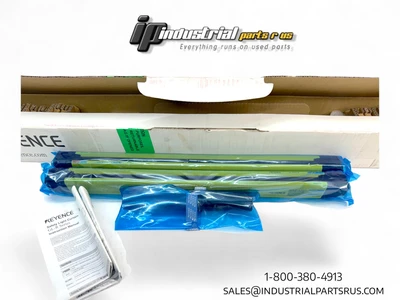

Keyence GL-R24H Safety Light Curtain Hand-protection Type, 24 Optical Axes New
Specifications
Model
GL-R24H
Detection capability
ø0.98"

ø25 mm
Total length
18.90"

480mm
No. of beam
24
Detection height
18.11"

460mm
Protection height
19.88"

505mm
Beam axis spacing/Lens diameter
20 mm / ø5

0.79" / ø0.20"
Detecting distance
0.66 to 49.21'

0.2 to 15 m
*1
Effective aperture angle
Max. ±2.5° (When operating distance is

9.84'

3 m or more)
Light source
Infrared LED (870 nm)
Response time (OSSD) (ms)
Wire synchronization, One-line or
Optical synchronization system (Channel 0)
ON→OFF
7
OFF→ON
49.3
*2
All blocked→ON
64.9
*3
Optical synchronization system
(Channel A or B)
ON→OFF
9.5
OFF→ON
53
*2
All blocked→ON
74.7
*3
Detection mode
Turns on when no interruptions are present in the detection zone
Synchronization between the transmitter and receiver
Optical synchronization or Wire synchronization (Determined by wiring)
Light interference prevention function
Prevents mutual interference in up to two GL-R systems.
Optical synchronization: prevented by Channel A and B with setting switch
Wire synchronization: prevented automatically
Control output
(OSSD output)
Output
2 transistor outputs. (PNP or NPN is determined by the cable type)
Max. load current
500 mA
*4
Residual voltage (during ON)
Max. 2.5 V (with a cable length of

16.40'

5 m)
OFF state voltage
Max. 2.0 V (with a cable length of

16.40'

5 m)
Leakage current
Max. 200 µA
Max. capacitive load
2.2 µF
Load wiring resistance
Max. 2.5 Ω
Supplemental output
(Non-safety-related output)
AUX
transistor outputs. (PNP or NPN is determined by the cable type)
Load current: Max. 50 mA, Residual voltage: Max. 2.5 V (with a cable length of

16.40'

5 m)
Error output
Muting lamp output
Incandescent lamp (24 VDC, 1 to 5.5 W)
LED lamp (load current: 10 to 230 mA) can be connected.
External input
When using a PNP output cable
EDM input
Wait input
Reset input
Muting input 1, 2
Override input
ON voltage: 10 to 30 V
OFF voltage: Open or 0 to 3 V
Short circuit current: Approx. 2.5 mA (Approx. 10 mA with EDM input only)
When using an NPN output cable
ON voltage: 0 to 3 V
OFF voltage: Open or 10 V or more
Up to the power voltage
Short circuit current: Approx. 2.5 mA (Approx. 10 mA with EDM input only)
Power supply
Power voltage
24 VDC ±20%, ripple (P-P) 10% or less, Class 2
Current
consumption
(Max.) (mA)
Transmitter
57
Receiver
72
Protection circuit
Reverse current protection, short-circuit protection for each output, surge protection for each output
Approved standards
EMC
EMS
IEC61496-1, EN61496-1, UL61496-1
EMI
EN55011 ClassA, FCC Part15B ClassA, ICES-003 ClassA
Safety
IEC61496-1, EN61496-1, UL61496-1 (Type 4 ESPE)
IEC61496-2, EN61496-2, UL61496-2 (Type 4 AOPD)
IEC61508, EN61508 (SIL3), IEC62061, EN62061 (SIL CL3)
EN ISO13849-1:2015 (Category 4, PLe)
UL508
UL1998
Environmental resistance
Enclosure rating
IP65/IP67 (IEC60529)
Overvoltage category
II
Ambient light
Incandescent lamp: 3,000 lux or less., Sunlight: 20,000 lux or less
Operating ambient temperature
-10 to +55 °C

14 to 131 °F

(No freezing)
Operating relative humidity
15 to 85 % RH (No condensation)
Storage temperature
-25 to +60 °C

-13 to 140 °F

(No freezing)
Storage relative humidity
15 to 95 % RH
Vibration resistance
10 to 55 Hz, Double amplitude 0.7 mm

0.03"
, 20 sweeps in each of the X, Y, and Z directions
Shock resistance
100 m/s
2

(Approx. 10 G), 16 ms pulse, 1,000 times in each of the X, Y, and Z directions
Material
Main unit case
Aluminum
Upper case/lower case
Nylon (GF 30%)
Front cover
Polycarbonate, SUS304
Weight
Transmitter
660 g
Receiver

SKU: IP15831
UPC: 721814245158
Condition: New
Availability: In Stock
Weight: 7.00 LBS
Width: 7.00
(in)
Height: 40.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814245158
Country/Region of Manufacture: Japan
Manufacturer: Keyence
Series: GL
Shelf: Light Curtain-31
Model: GL-R48H
MPN: GL-R48H
Type: Safety Light Curtain
