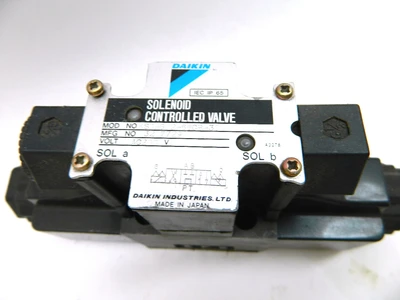

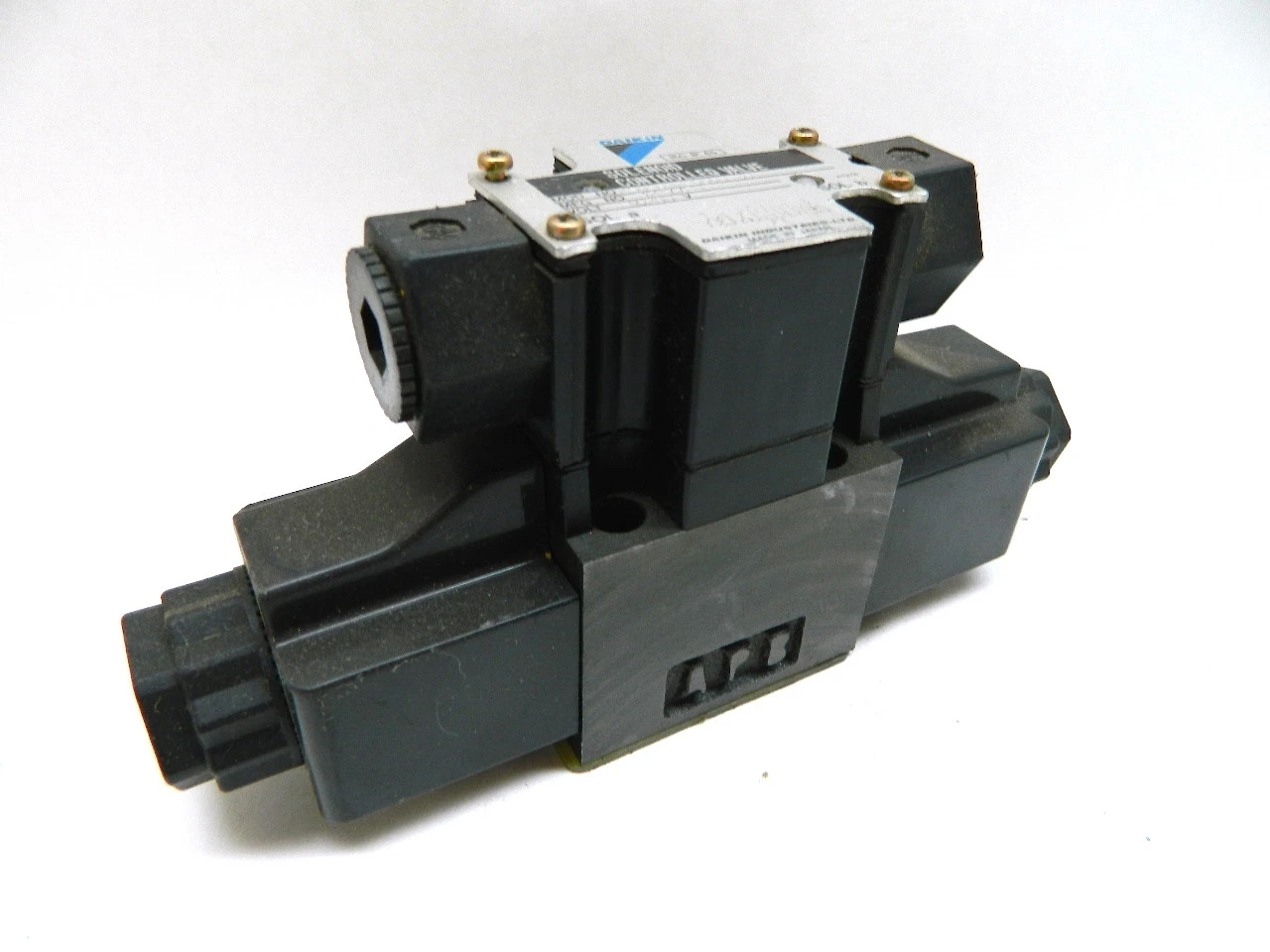

NEW DAIKIN KSO-G02-66CB-30

Daikin KSO-G02-66CB-30 Solenoid Operated Hydraulic Valve 200Vac Spring Center Spool with Indicator Lamps.
Item Features:
Caution: Sub-plate is not attached to the valve.
Ground Terminal: Nothing
Wiring System: Terminal box shape
Indicator Lamp: With
Protection Structure: IEC Pub529 IP65
Rating Time: Continuity
Spool Spring Type: Spring center
Insulation Resistance (Mohm): 50
Insulation Assortment: Class B (winding: H species)
Power Supply Voltage (V): AC200(50/60Hz)AC220(60Hz)
Strarting Current (A): AC200V(50Hz):1.21AC200V(60Hz):1.07AC220V(60Hz):1.18
Holding Power (W): AC200V(50Hz):21.5AC200V(60Hz):18AC220V(60Hz):22.5
Tolerable Voltage Fluctuation: AC200V (50Hz): 80 to 110% AC200V (60Hz): 90 to 121% AC220V (60Hz): 82 to 110%
Maximum Working Pressure (MPa [kgf/cm2]): 25[250]
Actuation: Spool: Spring center type
Withstand Voltage: 1 minute AC1500V
Peak Flow Rate (L/min): 100
Surge Suppressor: Nothing
Nominal Diameter: 1/4
Mass (kg): 1.8
Allowable Back Pressure (MPa[kgf/cm2]): 17.5[175]
Switching Frequency (Times): 240
Connection Method: Gasket type
Operating Time (Seconds): Operating direction (excitation): 0.01 to 0.025 operating direction (spring return): from 0.01 to 0.045
Holding Current (A): AC200V(50Hz):0.26AC200V(60Hz):0.19AC220V(60Hz):0.22

SKU: IP5412
UPC: 641752899728
Condition: New
Availability: In Stock
Weight: 3.00 LBS
Width: 10.00
(in)
Height: 9.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 641752899728
Country/Region of Manufacture: Japan
Manufacturer: Daikin
Shelf: A-16
Model: KSO-G02-66CB-30
MPN: KSO-G02-66CB-30
Voltage: 200Vac
Type: Hydraulic Control Valve
