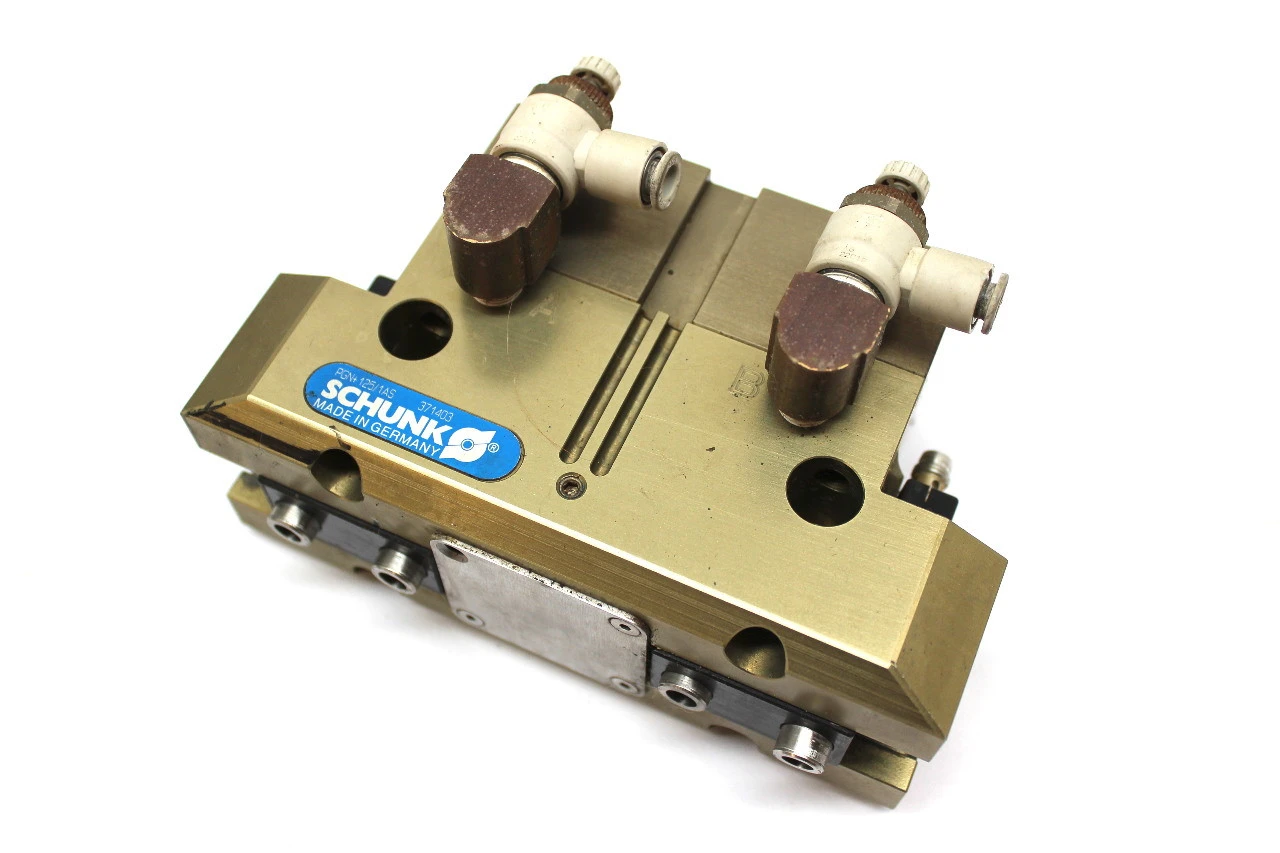

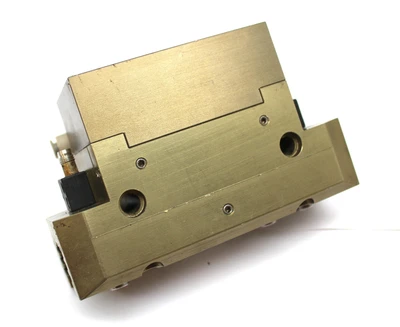

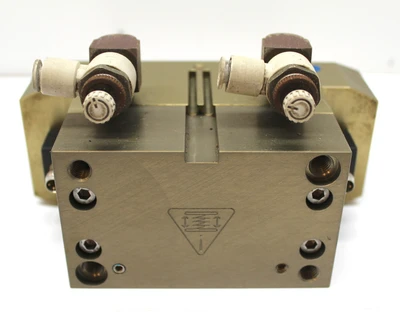

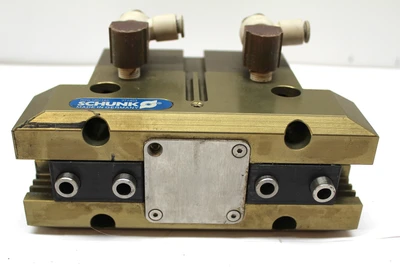

USED SCHUNK PNG 125-1-AS
Overview
Description
Schunk PGN 125/1AS Parallel Gripper Assembly 13mm Stroke Per Jaw 371403
Stroke Per Jaw: 13mm Stroke
Closing/Opening Force: 1470N
Weight: 1.85 Kg
Recommended Workpiece Weight: 5.4 Kg
Fluid Consumption Double Stroke: 119cm3
Operating Pressure: 0.5/1 Bar
Closing/Opening Time: 0.08/0.12s
Closing/Opening Time with Spring: 0.30s
Max. Admissible Finger Length: 170mm
Max. Admissible Weight Per Finger: 2.1 Kg
Repeat Accuraccy: 0.01mm
Specifications
| Weight | 4.00 LBS | 4.00 LBS |
|---|
SKU: IP505773535
UPC: 646412772328
Condition: Used
Availability: In Stock
Weight: 4.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Type: Parallel Gripper
MPN: 371403
Model: PNG 125-1-AS
Google Manufacturers Part Number: 371403
Stroke: 13 mm
Shelf: A-2
PSI: 0.5-1 Bar
Part Number: 371403
Manufacturer: Schunk
Country/Region of Manufacture: Germany
GTIN: 646412772328
GPS Manufacturers Part Number: 371403
