USED FANUC A05B-2400-C06

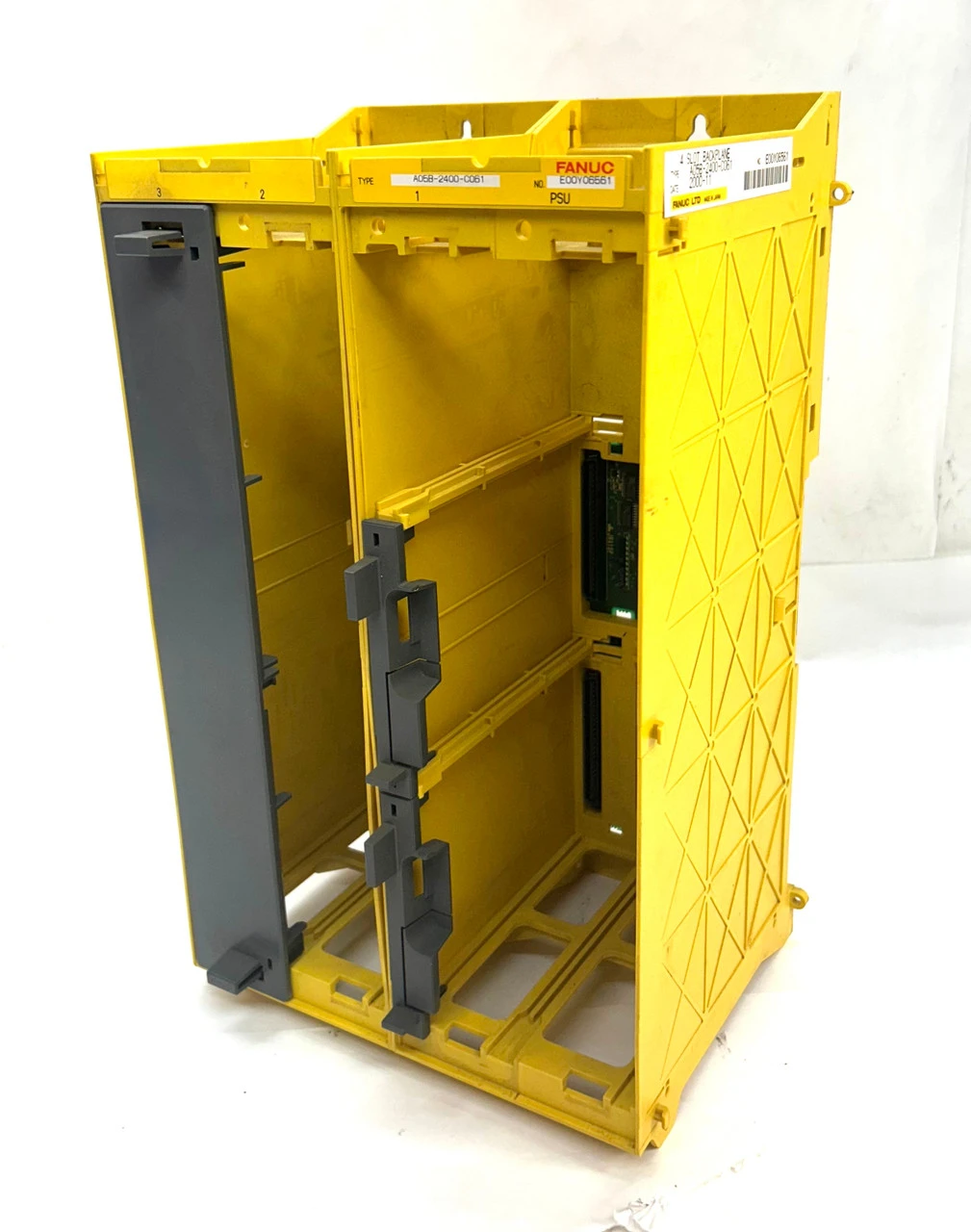

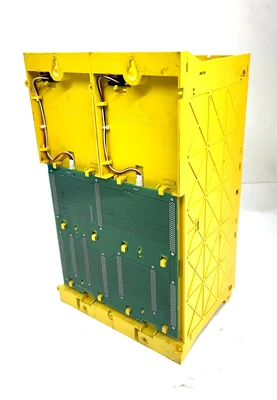

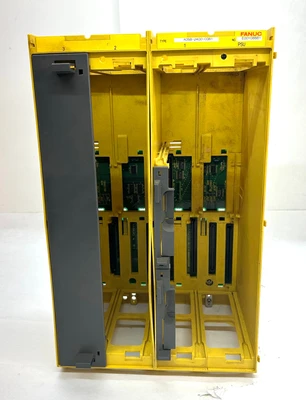

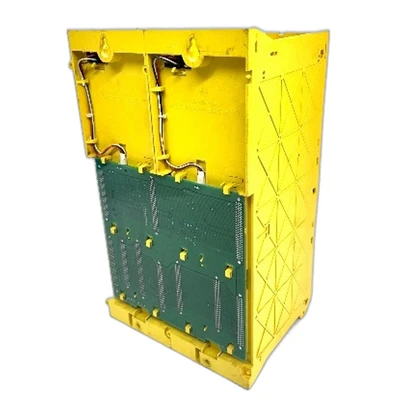

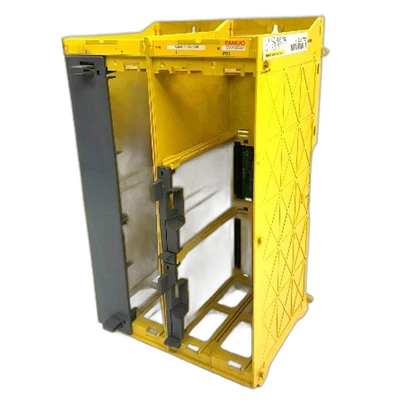

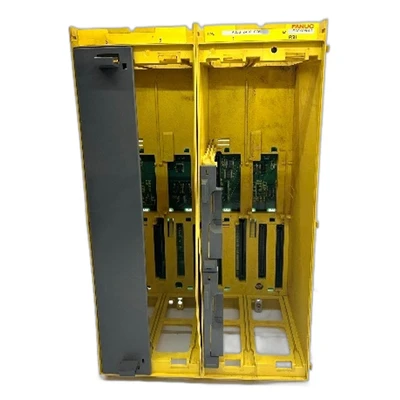

The "Used" Fanuc A05B-2400-C061 is a 4-slot backplane chassis designed for use within FANUC R-J3iB robot controller systems. It serves as the structural mounting and electrical interconnection platform for plug-in control modules including the CPU main board, power supply unit, and option PCBs such as the DeviceNet interface board. This backplane is a core component of FANUC's A05B-2400 series controller infrastructure, supporting robotics, CNC milling, commodity production, and advanced machining applications.
Specification
Value
Brand
Fanuc
Model / Part Number
A05B-2400-C061
Product Line / Series
A05B-2400
Type
4-Slot Backplane Chassis
Number of Slots
4
Compatible Controller
FANUC R-J3iB (RJ3iB)
Compatible CPU Board
A16B-3200-0412
Compatible PSU
A16B-2203-0370
Compatible Option PCB
A16B-2203-0190 (DeviceNet I/F)
Included Fan Units
2x A02B-0260-C021
Mounting Type
Control Cabinet / Rack Mount
Connectivity
Integrated PCB backplane and slot connectors
Applications
Robotics, CNC Milling, Advanced Machining, Commodity Production
Operating Temperature
0°C to 40°C
Operating Humidity
80% RH max (non-condensing)
Environment
Clean indoor (no corrosive chemicals)
Related 2-Slot Backplane
A05B-2400-C060
We warranty all items for 30 days from date of purchase.
