Equivalent input calibration makes easy calibration by putting the rated & # 118alue of a sensor by ten keypad.
Analog wave form is digitally analyzed by ultra-high speed sampling (2000Hz Max.)
Peak / Bottom hold, Auto inflection hold, Auto hill-top / valley hold function.
A choice of frequency characteristics is available to minimize atmospheric degradation of accuracy.
Self check function detecting the trouble on CPU, ROM and internal circuit contributes to the improvement of reliability.

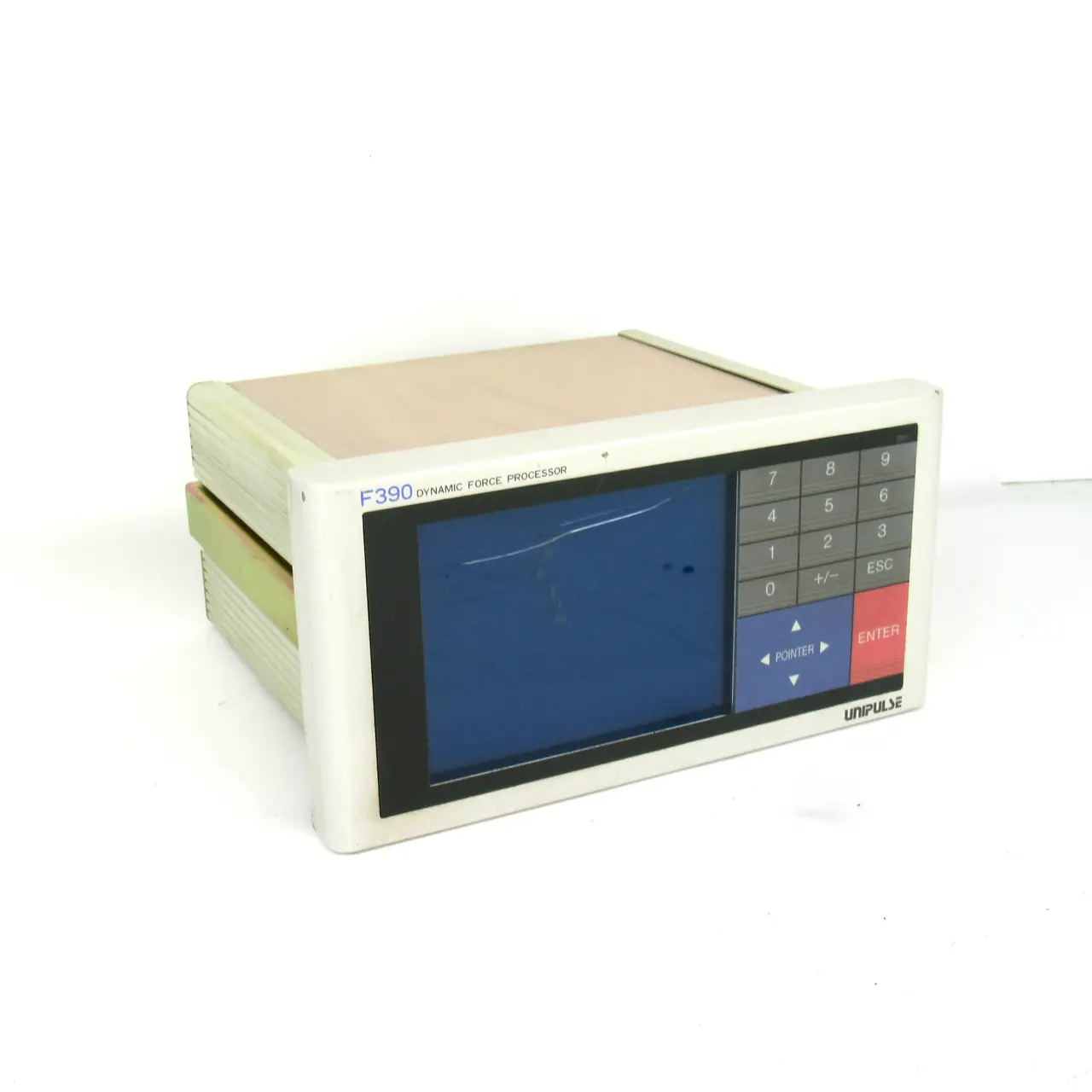

F390 Dynamic Force Processor
åÊ
F390 is a Dynamic Force Processor which supports the controlling various forces of the automatic
åÊ
assembling machines. Thus F390 are employed in a significant number of plants and tremendously
åÊ
contribute to the quality control throughout the assembly process. F390 enables to display the analog
åÊ
waveform in graphics from various analog sensors such as load, pressure, torque, acceleration,
åÊ
displacement, flow etc, analyze them and control the machines instantaneously. Besides these
åÊ
characteristics F390 correspond to variation of waveform controlling with Multi Hold Mode and
åÊ
simplify the calibration process through the equivalent input calibration by putting the rated value of
åÊ
a sensor by key pad.
Main features:
åÊ
* Equivalent input calibration makes easy calibration by putting the rated value of a sensor by ten key
pad
åÊ
* Analog wave form is digitally analyzed by ultra-high speed sampling (2000Hzmax.)
åÊ
* Peak / Bottom hold, Auto-inflection hold, Auto hill-top / valley hold function
åÊ
* A choice of frequency characteristics is available to minimize atmospheric degradation of accuracy ...
åÊ
Bessel type low-pass filter which elements mechanical vibration or moving average digital filter.
åÊ
* Communication interface RS-232C / RS-485 is available for suitable communication with PC or PLC.
åÊ
* Self-check function detecting the trouble on CPU, ROM and internal circuit contributes to the
åÊ
improvement of reliability.
åÊ
* World-wide type with operational Voltage from AC100 to 220V
| Weight | 4.00 LBS | 4.00 LBS |
SKU: IP4718
UPC: 646412775121
Condition: Used
Availability: In Stock
Weight: 4.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
Type: Dynamic Force Processor
Voltage: 100~220V AC In
MPN: F390
Model: F390
Shelf: D-18
Controller Platform: F390
Manufacturer: UniPulse
Country/Region of Manufacture: Japan
GTIN: 646412775121
