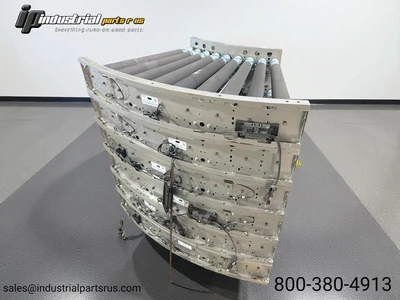

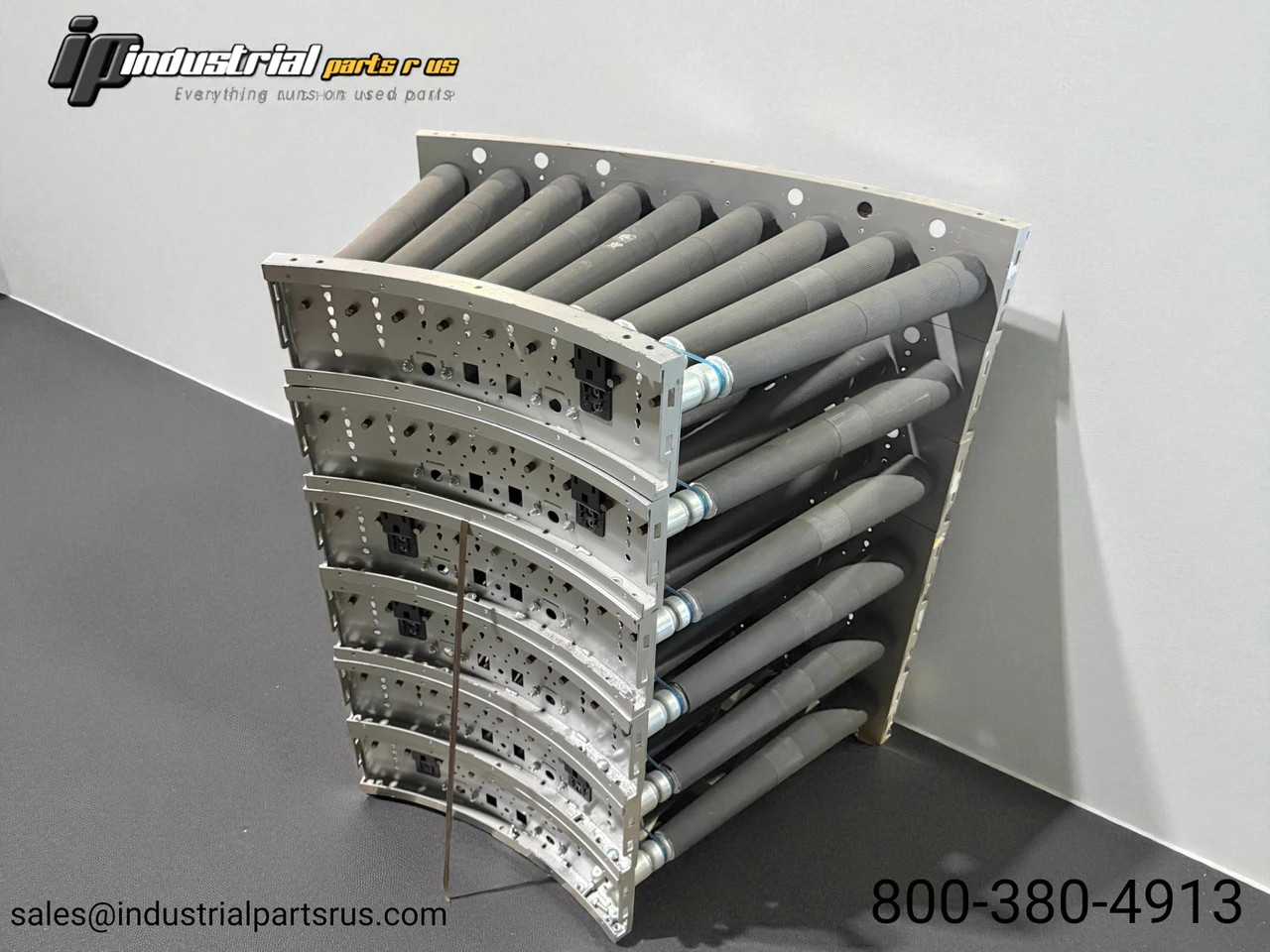

Hilmot Trew 1500 Series 27" MDR Curved Conveyor System 45 Degree Section Featuring Zero Pressure Zones for Accumulation and Non-Contact Product Flow.
Type: 45 Degree Curve Powered Roller Conveyor
Voltage: 24Vdc
Number of Zones: 6

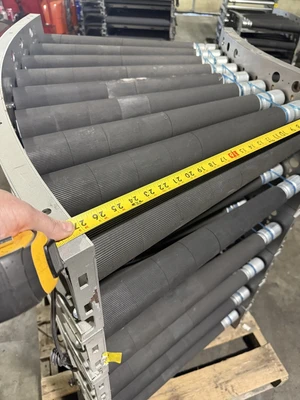

Roller Width: 26" Wide
Roller Diameter: 2" Diameter
Zone Depth Each: 23" Long
Clearance Between Rails: 27" Wide
Overall Width: 30"

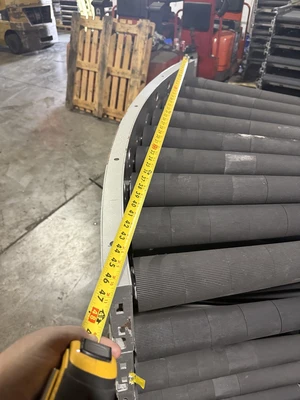

Conveyor Length: Approx. 46 1/2" Long Around Outter Radius
Conveyor Speed: 180 FPM
Weight Capacity: 75 Lbs.
These conveyors require both a 24V Power Supply and an ASI Master Control (see link below). We have these in stock in our store.
MDR Conveyor 80 Amp Power Supply
MDR Conveyor ASI Gateway Controller
We currently have 26" Wide and 20" Wide Conveyors available including MDR Curve Conveyors, MDR Spur Conveyors, MDR Merge or "Y" Conveyors, and MDR Belted Intermediate Conveyors In Stock.
Be sure to view our other components including Conveyor Legs, Power Supplies, Railing, and ASI Controls!!
Motorized Roller Conveyor
Motorized roller conveyor is used in distribution, fulfillment and manufacturing for tote, tray, and case handling applications, often when interfacing with automation equipment, teammate workstations, flexibility is needed, the most energy efficient system is desired or non-contacting product flow solution is preferred.
MDR System Overview
MDR technology is the fastest growing conveyor technology since the advent of the line-shaft conveyor in the late '60s. Trew’s design provides the benefits of MDR with the widest range of standard modules.
All Electric – 24VDC design
Less Power – uses 30-50% less energy
Quiet – run on demand with low noise
Modular – flexible solutions and layouts
Flexibility – 20+ standard modules
Fast – factory ready for fast installation
The MDR product line is highly versatile and easily configured with a wide range of pre-wired conveyor modules driven by 24VDC motorized drive rollers. MDR has a weight capacity of less than 75 lbs. and typically runs at speeds up to 180 FPM.
| Weight | 150.00 LBS | 150.00 LBS |
SKU: IP15888
UPC: Does Not Apply
Condition: Used
Availability: In Stock
Weight: 150.00 LBS
Width: 40.00
(in)
Height: 14.00
(in)
Depth: 40.00
(in)
Shipping: Calculated at Checkout
GTIN: Does Not Apply
Country/Region of Manufacture: United States
Manufacturer: Trew Solutions
Series: MDR
Model: 26x12
MPN: 26x12
Voltage: 24V
Type: Powered Roller Conveyor
Communications: ASI Gateway
