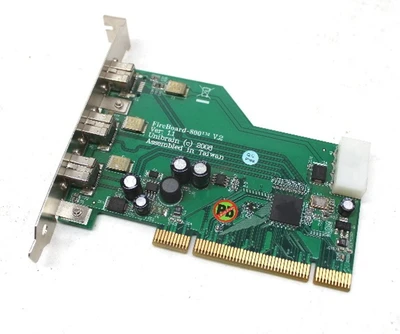

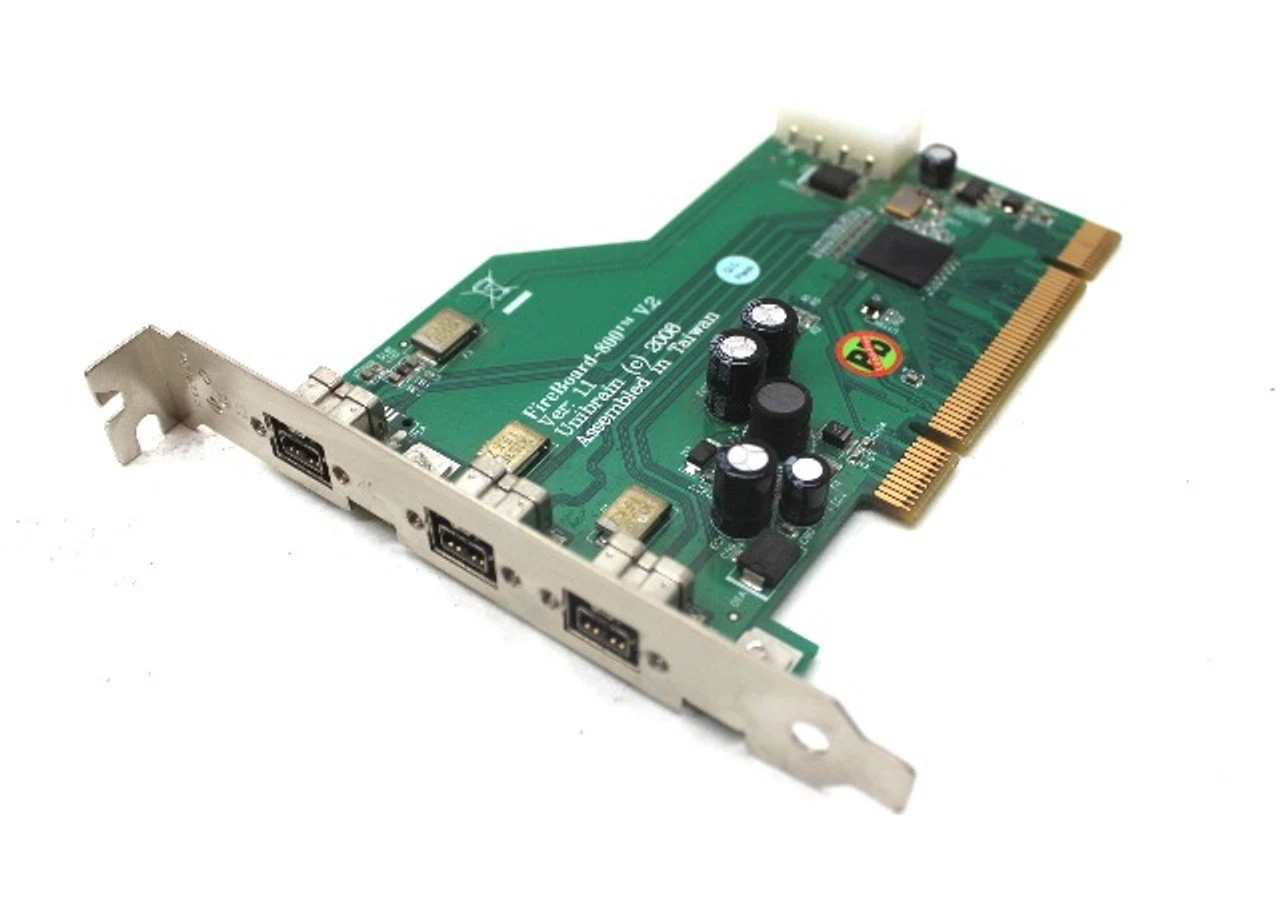

USED UNIBRAIN FIREBOARD 800 V.2

FireBoard-800™

V.2 is Unibrain’s next generation of 1394b PCI adapter and is based on the new Texas Instruments TSB83AA23 chipset, which combines both PHY and Link functionalities under a single silicon.
The Fireboard-800™

V.2 adapter incorporates some new functionality features like 1394b screw lock cables support and improved external power connectivity, adding further stability and usability in industrial and machine vision environments.
OS Supported:
Windows XP/Vista/7/8, 2003/2008 Server, 32/64 bit.
Mac OS X 10.4.x or later.
Linux.
Part numbers:
Fireboard-800 V.2 bulk:
1234
Fireboard-800 V.2 with embedded hardware FireAPI™/Fire-i API SDK™ license:
1721
Texas Instruments TSB83AA231394b to PCI integrated Link/PHY host controller.
33-MHz/32-Bit PCI Interface.
OHCI Compliant/Compatible with any FireWire device or peripheral.
Serial data rates: 400Mbps and 800Mbps.
Three (3) fully backward compatible, (1394a-2000 Fully-Compliant) Bilingual 1394b, 9 pin ports at up to 800 Megabits per second (Mbit/sec).
Internal ‘big IDE’ 4 pin power connector.
PCI burst transfers and deep FIFOs to tolerate large host latency.
RoHS and WEEE compliance.
Operating Temperature: 0~65′ C, Storage Temperature: -20 ~ 100′ C.
Operating Humidity: 0 ~ 80% RH, Non-condensing.
Fireboard-800™ is ideal for IIDC industrial and machine vision applications. Using Unibrain’s Fire-i™ Software you can connect up to 63 firewire cameras and simultaneously control and display up to four of them or more, using Unibrain’s MultiDMA functionality, thus providing an advanced interface solution for machine vision, security, GPS mapping and other professional applications.
You can connect a multiple array of external FireWire devices such as CD-R/W or DVD drives easily. Just plug-in any SBP2 FireWire External Hard Drive to the installed Fireboard-800™ adapter and immediately add storage to your PC. Unibrain’s Fireboard-800™ has been thoroughly tested to operate seamlessly with Unibrain’s entire range of External FireWire Hard Drives as well as any third party external storage devices.
Simply connect any DV or HD-DV camcorder to your PC or Mac via Unibrain Fireboard-800™ Host Adapter. Capture, produce and share your digital video, with any digital video application fast and seamlessly.

SKU: IP494980057
UPC: 646412769823
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
MPN: Fireboard-800 V.2
Model: Fireboard 800 V.2
Google Manufacturers Part Number: Fireboard-800 V.2
Shelf: File Cab 1-10
Manufacturer: Unibrain
Country/Region of Manufacture: Taiwan
GTIN: 646412769823
GPS Manufacturers Part Number: Fireboard-800 V.2
