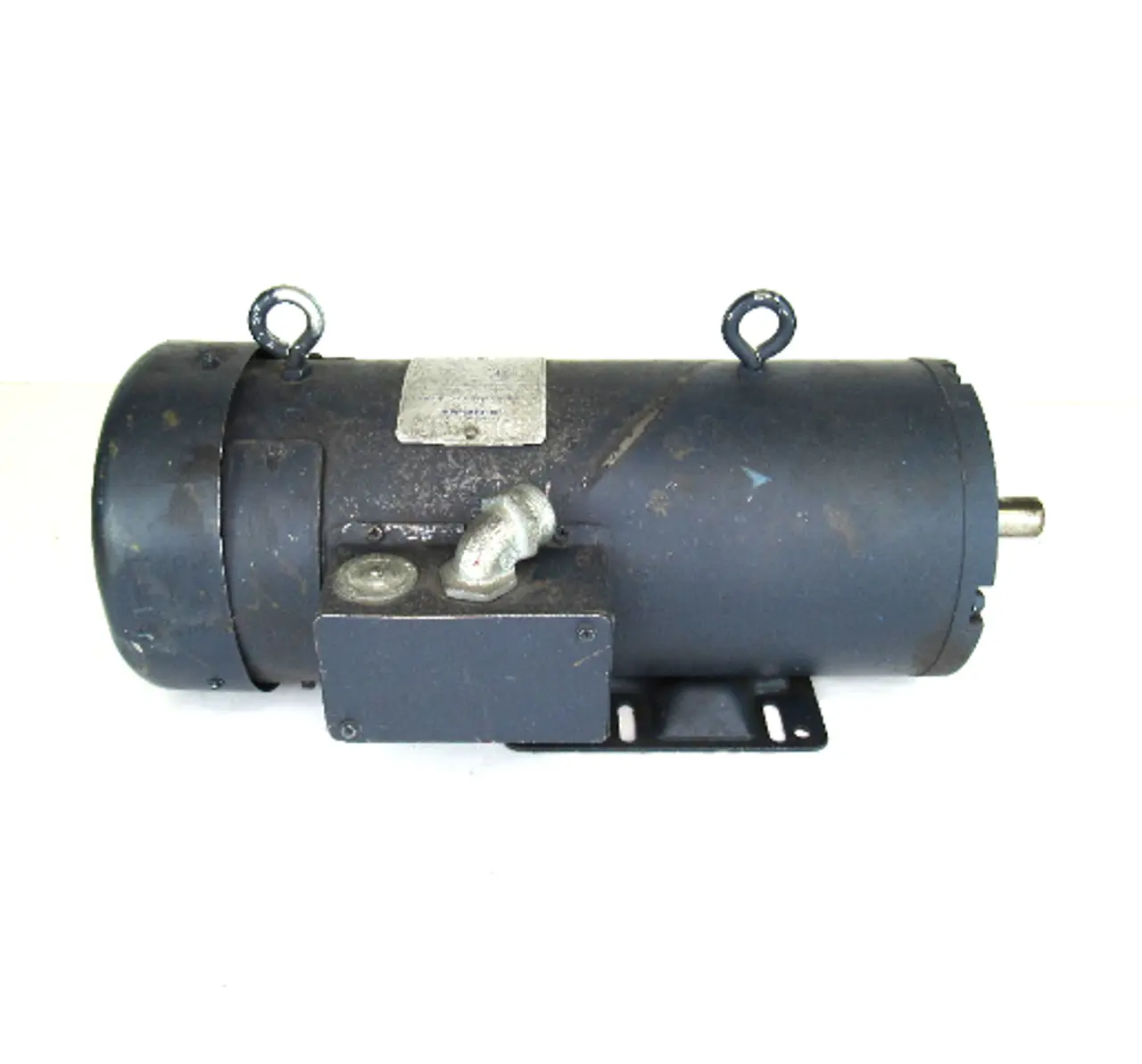

USED MARATHON ELECTRIC Z615 145TEFR5326

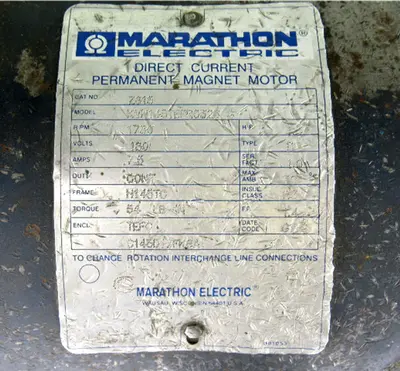

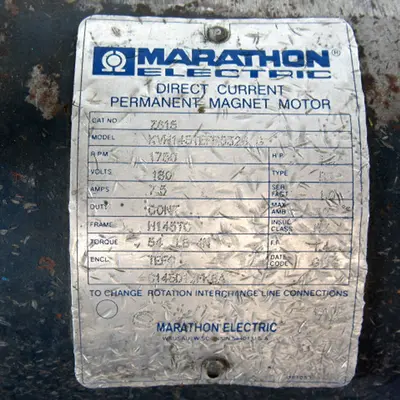

Marathon Electric Z615 145TEFR5326 Direct Current Permanent Magnet Electric Motor, 1.5Hp, 1750 RPM, 180V DC, 7.5 Amp

Used, 30 day warranty included!

-Totally enclosed fan cooled
-7/8" shaft output diameter
-Class F insulation
-NEMA C-Face with removable rigid base
-Oversized brushes for extra long life
-Permanently lubricated sealed ball bearings
-Linear speed/torque characteristics over entire speed range
-High starting torque, high peak current capability
-Usable on PWM type DC adjustable speed drives at higher HP rating
-Easy brush access with unique brush holder design
-UL Recognized and CSA Certified

SKU: IP08185
UPC: 646412824171
Condition: Used
Availability: In Stock
Weight: 66.63 LBS
Width: 20.00
(in)
Height: 20.00
(in)
Depth: 20.00
(in)
Shipping: Calculated at Checkout
Type: Electric Motor
MPN: Z615 145TEFR5326
Horsepower: 1.5
Model: Z615 145TEFR5326
Shelf: H-4
Frame: 145TC
RPM: 1750
Part Number: Z615 145TEFR5326
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Shaft Diameter: 7/8 in
Manufacturer: Marathon Electric
Full Load Amps: 7.5
Country/Region of Manufacture: United States
GTIN: 646412824171
