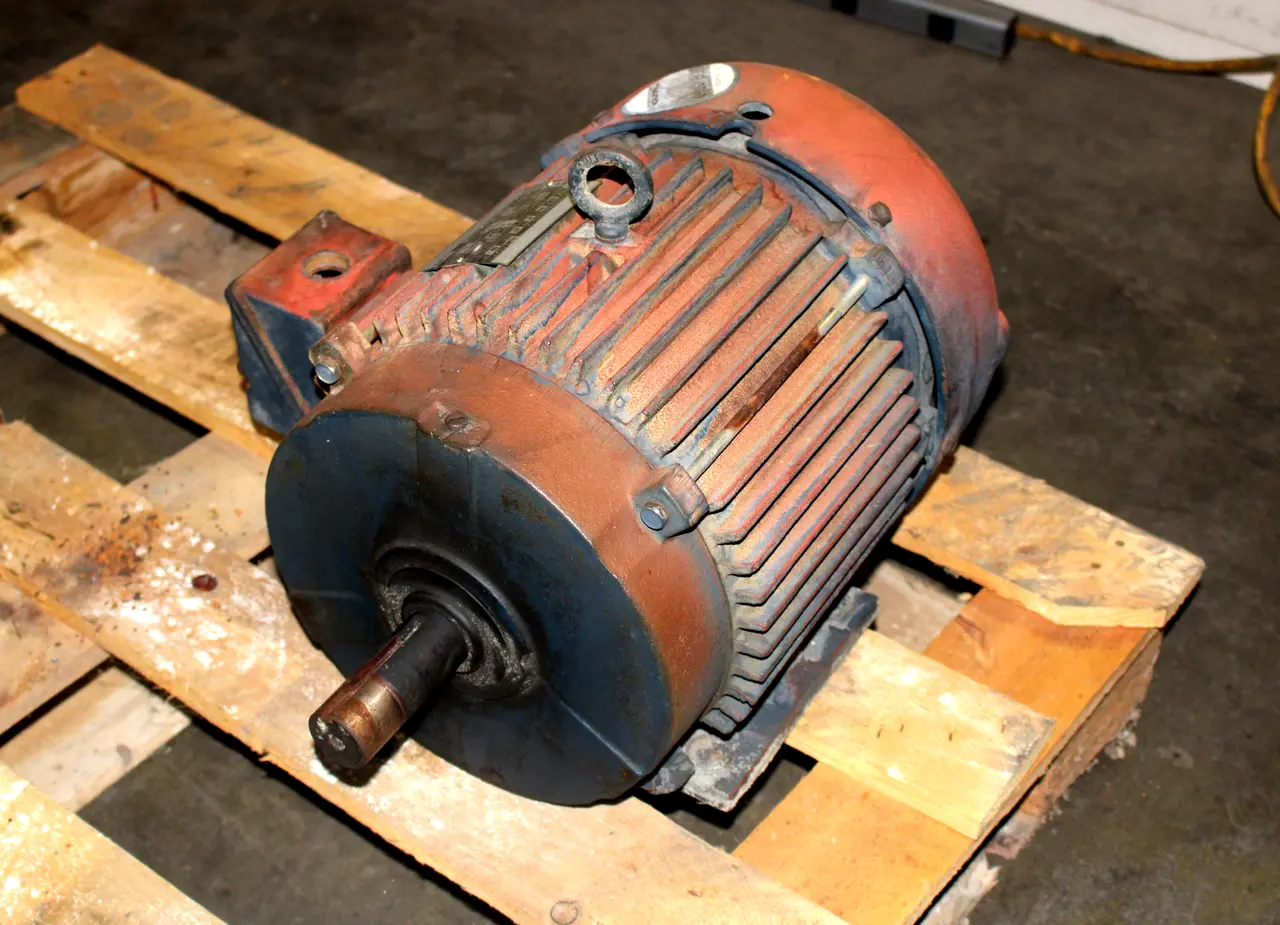

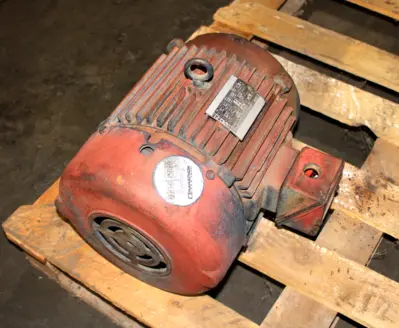

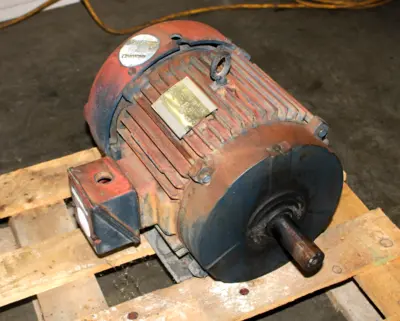

USED MARATHON ELECTRIC 5VB213TTFS4532AN L

Marathon 5VB213TTFS4532AN L Ser. E Electric Motor, 7 1/2 - 5 HP, 1760/1470 RPM
-High Efficiency
-Frame: 213T
-Type: TFS
-Design: B
-3 Phase
-Insulation Class: F3
-Cont.
-40°C Max. Amb.
-Enclosure: TEFC
-Cooling Tower Service - C11 620/25750
FOR 7 1/2 HP:
-230/460V
-60Hz
-Service Factor: 1.15
-1760 RPM
-FL Amps: 20/10
-Code: H
-NEMA Nom. Eff.: 89.5
-NOM. P.F.: 78.0
FOR 5 HP:
-190/380V
-50Hz
-Service Factor: 1.15
-FL Amps: 17/8.5
-1470 RPM
-Shaft End Brg.: 307
-Opp. End Brg.: 206
-Severe Duty

SKU: IP12232
UPC: 646412864344
Condition: Used
Availability: In Stock
Weight: 185.00 LBS
Width: 22.00
(in)
Height: 25.00
(in)
Depth: 25.00
(in)
Shipping: Calculated at Checkout
Type: High Efficiency Electric Motor
MPN: 5VB213TTFS4532AN L
Horsepower: 5 - 7 1/2
Model: 5VB213TTFS4532AN L
Shelf: Freight
Frame: 213T
RPM: 1760/1470
Part Number: 5VB213TTFS4532AN L
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Phase: 3
Manufacturer: Marathon Electric
Full Load Amps: 20/10-17/8.5
GTIN: 646412864344
