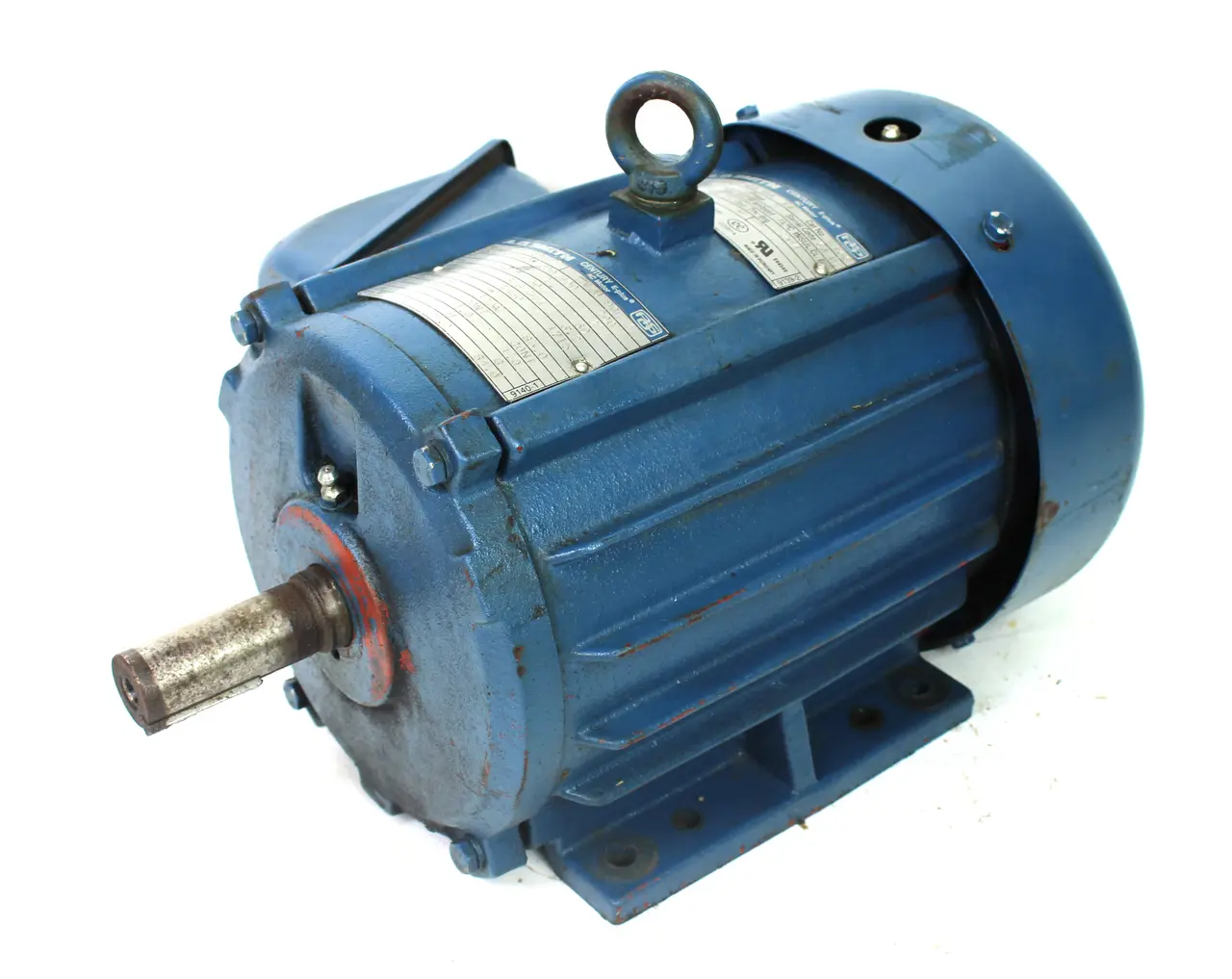

USED A.O. SMITH F-391319-63

A.O. Smith F-391319-63 AC Motor, 2HP, 3 Phase

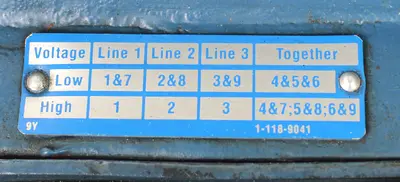

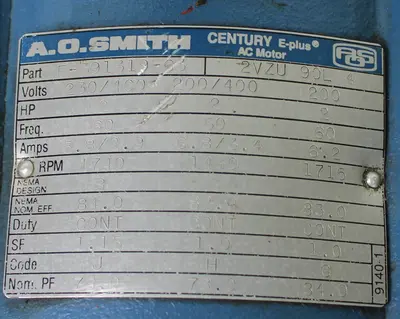

For 230/460 Volts:
- Hp : 2
- Freq : 60
- Amps : 5.8/2.9
- RPM : 1740
- Nema Design : B
- Nema Nom Eff : 84.0
- Duty : Cont
- SF : 1.15
- Code : J
- Nom PF : 76.0
For 200/400 Volts :
- Hp : 2
- Freq : 50
- Amps : 6.8/3.4
- RPM : 1430
- Nema Nom Eff : 82.0
- Duty : Cont
- Sf : 1.0
- Code : H
- Nom PF : 78.0
For 200 Volts :
- Hp : 2
- Freq : 60
- Amps : 6.2
- RPM : 1715
- Nema Nom Eff : 83.0
- Duty : Cont
- SF : 1.0
- Code : G
- Nom PF : 84.0

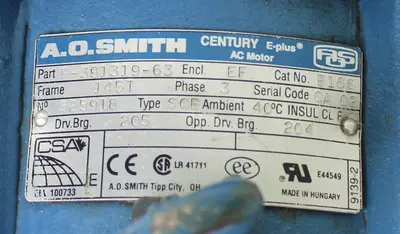

Encl : EF
Cat No : E166
Frame : 145T
Phase : 3
Serial Code : CA02
No : 525918
Type : SCE
Ambient : 40°C
Insul Cl : F
Drv.Brg : 205
Opp Drv Brg : 204
MADE IN HUNGARY

SKU: IP12397
UPC: 635510918745
Condition: Used
Availability: In Stock
Weight: 48.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 16.00
(in)
Shipping: Calculated at Checkout
Type: AC Motor
MPN: F-391319-63
Horsepower: 2
Model: F-391319-63
Shelf: H-6
Hz: 50/60Hz
Frame: 145T
RPM: 1740-1430/1715
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Phase: 3
Shaft Diameter: 0.88in
Manufacturer: A.O. Smith
Country/Region of Manufacture: Hungary
GTIN: 635510918745
