USED TOSHIBA TKKH

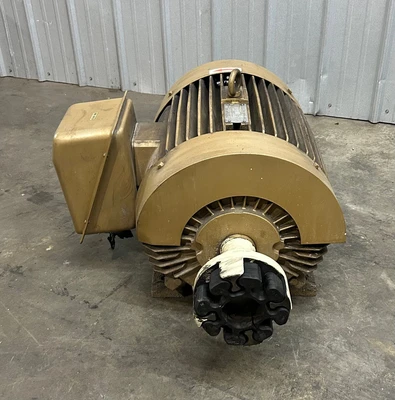

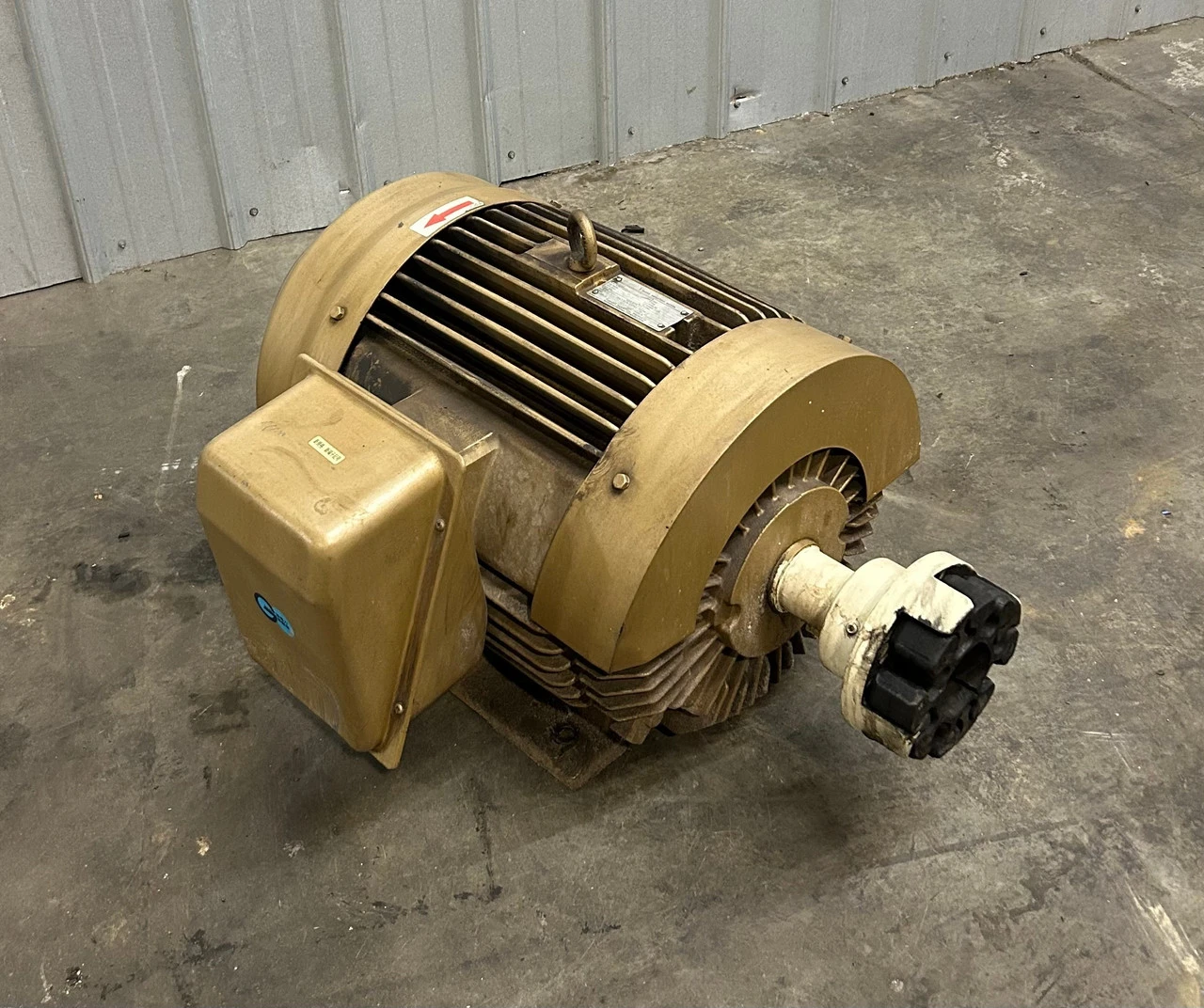

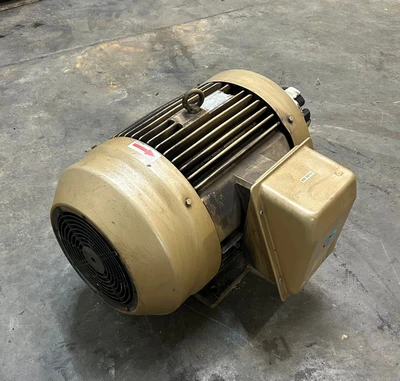

Toshiba TKKH Electric Motor, 75HP, 1770rpm, 225S Frame, 60Hz

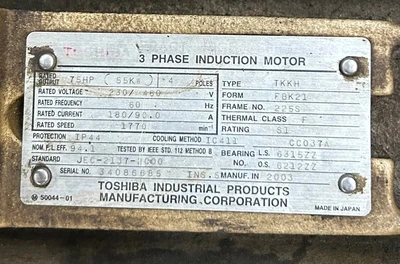

- Rated Output : 75 HP
- Rated Voltage : 230/460 V
- Rated Frequency : 60 Hz
- Rated Current : 180/90.0 A
- Rated Speed : 1770 min
- Type : TKKH
- Form : FBK21
- Frame No. : 225S
- Thermal Class : F
- Protection : IP44
- Rating : S1
MADE IN JAPAN

SKU: IP15397
UPC: 721814241280
Condition: Used
Availability: In Stock
Weight: 800.00 LBS
Width: 34.00
(in)
Height: 28.00
(in)
Depth: 41.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814241280
Country/Region of Manufacture: Japan
Hertz: 60
Kw: 55
Manufacturer: Toshiba
Shaft Diameter: 64.9mm
Output Hz: 60
Poles: 4
Amperage: 180/90
Phase: 3 Phase
Part Number: TKKH
RPM: 1770
Frame: 225S
Hz: 60
R/Min: 1770
Shelf: Freight Pallet
Model: TKKH
Horsepower: 75 HP
MPN: TKKH
Voltage: 230/460 V
Type: Electric Motor
