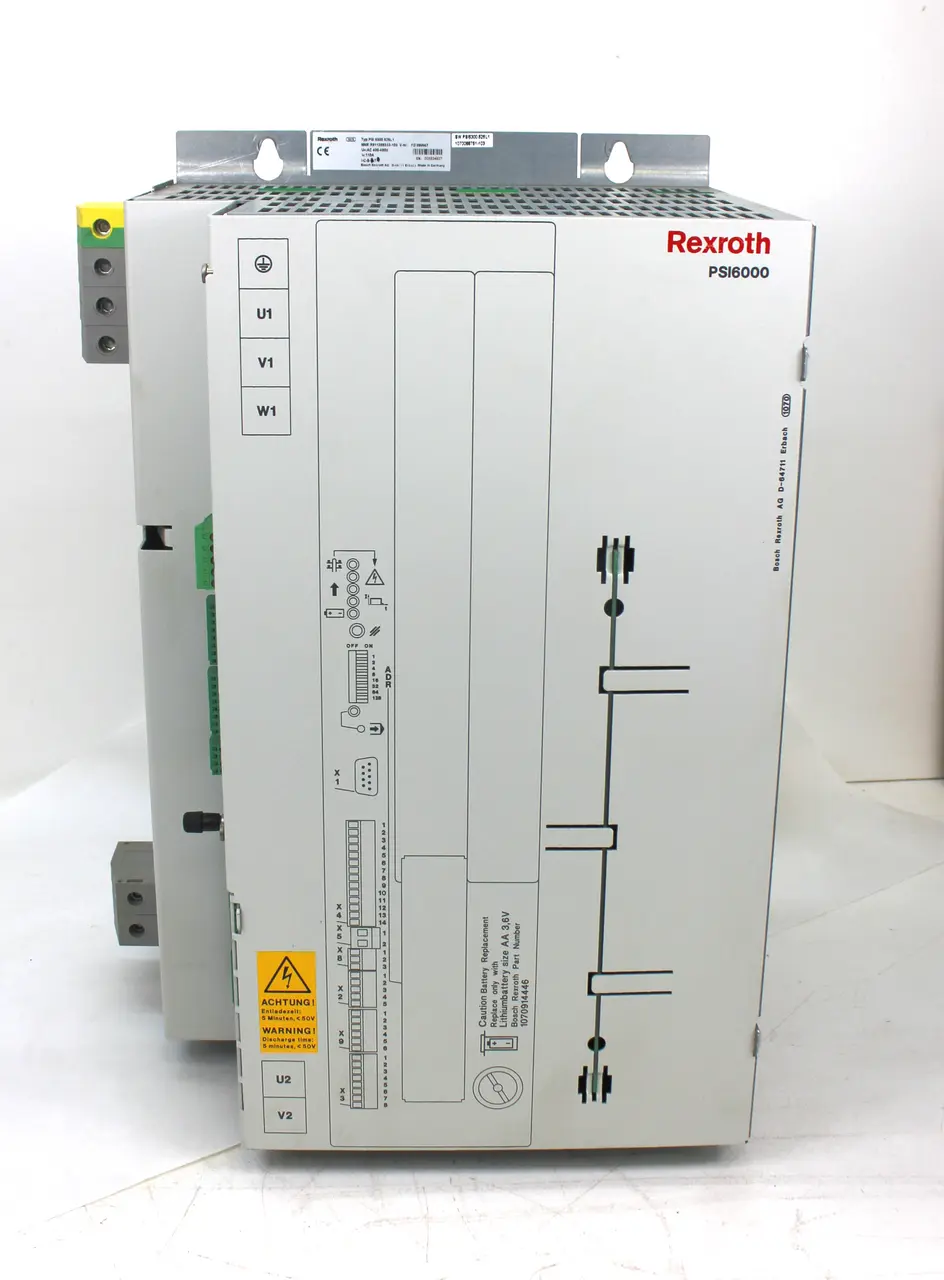

USED BOSCH REXROTH PSI6000

Rexroth PSI 6000 Welding Inverter PSI 6300.626L1 400-480VAC 110A
Bosch Rexroth AG D-64711 Erbach
MNR: R911309353-105
Medium-frequency inverter 6 to 36kA D
Air cooling (L1)
Integrated control function
Rated voltage 400 to 480 Volt, 50/60 Hz
Rated current 110 A (continuous thermal current)
Preferably for connecting welding transformers
Type: 3-phase MF inverter, module designed for recessed mounting
Weld timer: integrated
I/O interface: Slot for parallel, serial or fieldbus interface
Quality module: Slot prepared for retrofitting
Degree of protection: IP 20; designed for modular enclosure or for installation in switchgear cabinets with IP 54
Inverter ambient temperature: max. 55° C
Cooling L1/L2: air, max. 45° C with Bosch fan cowl, temperaturecontrolled through inverter
Temperature monitoring: integrated
Storage temperature: -25° C to +70° C
Corrosion: The ambient air must be free of acids, caustic solutions, corrosive agents, salts and metal vapors of any major concentration
Humidity: Humidity class F as per DIN 40040; 20° C at 90% relative humidity; 40° C at 50% relative humidity (as per VDE 0113); Moisture condensation on the MF inverters must be prevented.
Air pressure: Any within a range of up to 2000 m above sea level
Line voltage connection grounded TN or TT system: L1/W1: 400 V −20% to 480 V +10%; 50/60 Hz
Nominal system current; max. continuous thermal current: 110 A
Max. output current: 800 A
Max. secondary current; depending on the transformer used: 36 kA (PSG 3100)
Voltage supply; Weld timer CPU; I/O interface: 24 V DC; min. 19 V DC up to max. 30 V DC as per EN 61131-2, (external power supply), or, alternatively, power supply from the weld current system (internal power supply)
Clock frequency: 1 kHz
Overvoltage protection: MOV; Metal Oxide Varistor
Electrical connection, mains supply and transformer: via box terminal; max. 50 mm2
Wire range: 35 mm2
Basic switchgear: cabinet loss L1/W1: 69 W

SKU: IP12968
UPC: 635510924234
Condition: Used
Availability: In Stock
Weight: 50.00 LBS
Width: 14.00
(in)
Height: 14.00
(in)
Depth: 20.00
(in)
Shipping: Calculated at Checkout
Type: Medium-Frequency Inverter
Voltage: 400-480V
MPN: PSI 6300.626L1
Model: PSI6000
Hz: 50/60HZ
Part Number: PSI 6300.626L1
Phase: 3
Amperage: 110A
Manufacturer: Bosch Rexroth
Frequency: 3-36KA
Country/Region of Manufacture: Germany
Shelf: D-9
GTIN: 635510924234
