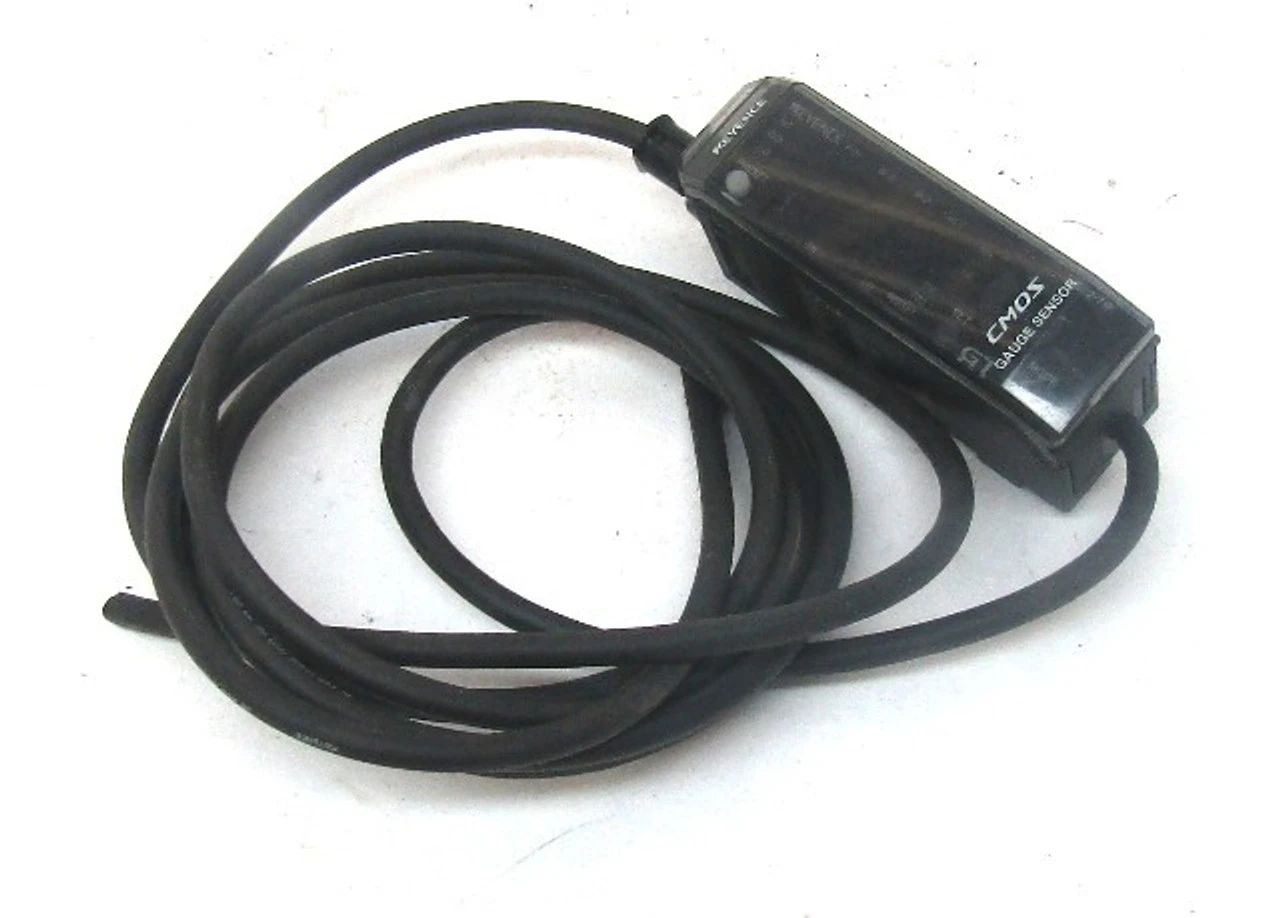

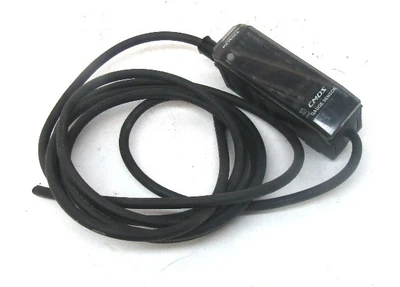

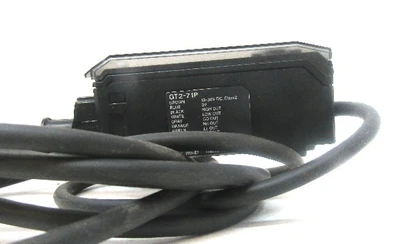

USED KEYENCE GT2-71P

Keyence CMOS Gauge Sensor GT2-71P High-Accuracy Digital Contact Sensor 10-30V
Model
GT2-71P
Output
PNP output
Mounting method
DIN-rail mount
Main unit/expansion unit
Main unit
Power supply voltage
10 to 30 VDC, including 10% ripple (P-P), Class 2
*1
Power
consumption
Normal
2200 mW max. (30 V, 73.3 mA max.)
Power saving (Eco)
1700 mW max. (30 V, 56.7 mA max.)
Display power
Measured value display
6 + 1/2-digit 7-segment LED (red)
Other displays
2-color, 13-level bar LED display (red, green), indicators (red, green)
Display range
-199.999.9 to 199.999.9
Display resolution
0.1 ë_m
åÊ
0.004 Mil
Sampling rate
1000 times/sec.
Control input
Timing/preset/
reset/bank input
No-voltage input
Control output
HH/HI/GO/LO/LL
PNP open collector, 30 V 50 mA or less, residual voltage 1 V or less
*1
*2
Analog output
‰Û¥
Response time
hsp (3 ms), 5 ms, 10 ms, 100 ms, 500 ms, 1 s
Environmental resistance
Ambient temperature
-10 to +50 å¡C
åÊ
14 to 122 å¡F
åÊ
(No freezing)
Relative humidity
35 to 85 % RH (No condensation)
Vibration resistance
10 to 55 Hz, Double amplitude 1.5 mm
åÊ
0.06"
, 2 hours in each of the X, Y, and Z directions
Materials
Main body case: Polycarbonate, Key top: Polyacetal, Front sheet: PET, Cable: PVC
Weight
Approx. 140 g (including power cable)

SKU: IP506096935
UPC: 646412772564
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Shelf: J-9
Type: Digital Contact Sensor
Voltage: 10-30 Vdc
MPN: GT2-71P
Model: GT2-71P
Google Manufacturers Part Number: GT2-71P
Series: CMOS
Manufacturer: Keyence
Country/Region of Manufacture: Japan
GTIN: 646412772564
GPS Manufacturers Part Number: GT2-71P
