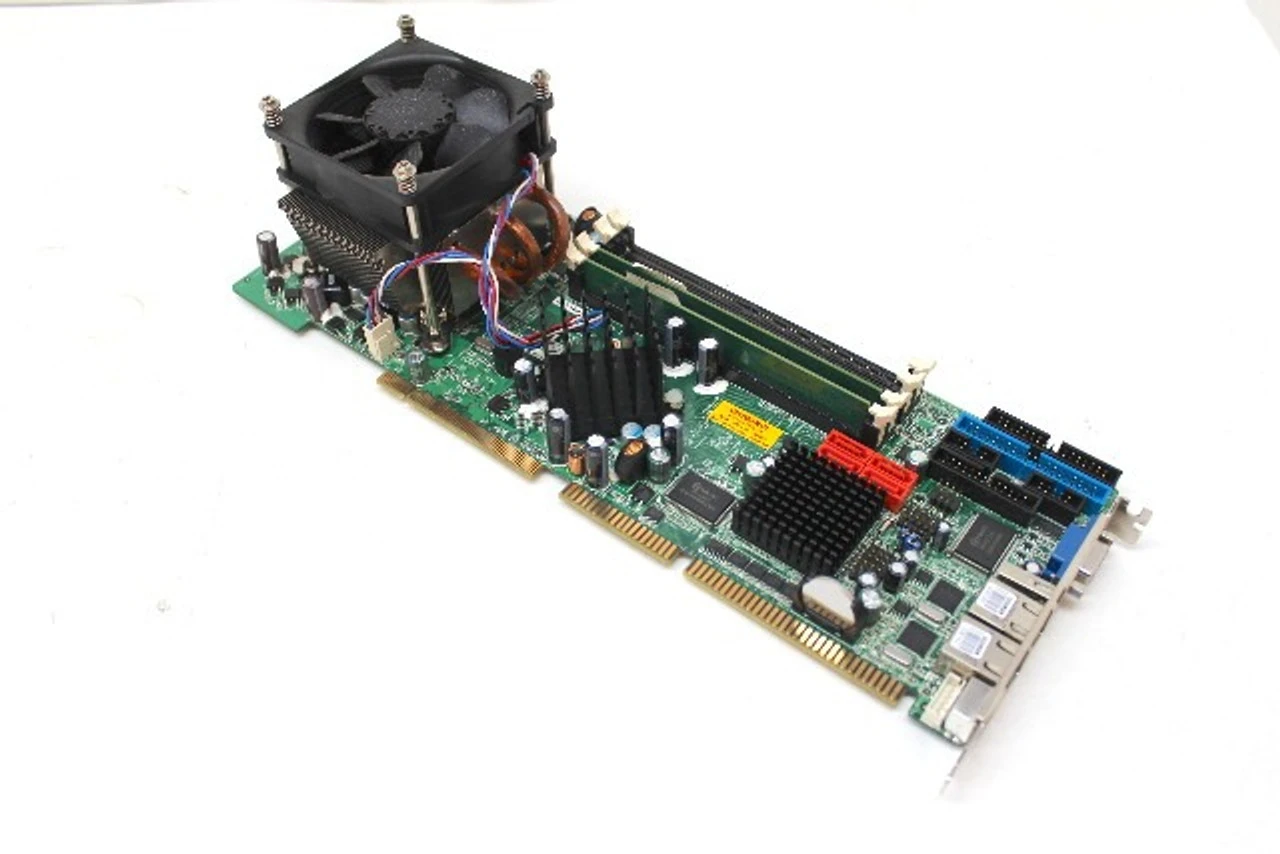

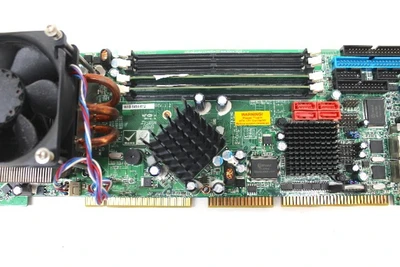

WSB-9454-R12 Single Board Computer Motherboard Intel945G 3.4GHz

WSB-9454-R12 Single Board Computer Motherboard Intel945G 3.4GHz
Full-size PICMG 1.0 CPU card supports LGA775 Intel Core 2 Duo, Pentium D, Pentium 4 and Celeron  D processors and comes with VGA or DVI, dual PCIe GbE LAN and 3.0 Gbps SATA II interfaces
CPU LGA775 Intel Core 2 Duo, Pentium D, Pentium 4, and Celeron D desktop processors with a 533 MHz, 800 MHz or 1066MHz FSB
System Chipset Intel 945G+ ICH7
BIOS AMI Flash BIOS
System Memory Four 240-pin 1 GB (max.) 667 MHz, 533 MHz or 400 MHz dual-channel DDR2 SDRAM DIMM supported (system max. 4 GB)
Ethernet Dual Broadcom BCM5787M PCIe GbE chipset with ASF2.0
I/O Interface 2 x RS-232 7 x USB 2.0 (1 on bracket, 6 on board) 1 x IDE 1 x FDD 1 X LPT 4 x SATA II 1 x Infrared 1 x Keyboard and mouse (PS/2) 1 x 5-pin header for keyboard
Digital I/O 8-bit digital I/O,4-bit input/4-bit output
Display Interface VGA integrated in Intel 945G DVI by Silicon Image SIL1362 (WSB-9454DVI only)
Audio 5.1 Channel AC’97 audio kit with realtek ALC655 codec 7.1 Channel HD audio kit with realtek ALC883 support dual audio streams
Watchdog Timer Software programmable supports 1~255 sec. system reset
Power Supply AT/ATX power
Power Consumption 5 V @ 6.75 A, 12 V @ 7.24 A running 3D Mark with a 3 GHz Intel Pentium 4 processor and 4 GB of 533 MHz DDR2 SDRAM
Temperature Operating: 0°C~ 60°C (32°F~140°F)
Humidity Operation: 5% ~ 95% non-condensing
Dimensions 338 mm x 122 mm
Weight GW:1.2 Kg

SKU: IP05386
UPC: 679523692896
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 10.00
(in)
Height: 10.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523692896
Country/Region of Manufacture: Japan
Part Number: WSB-9454-R12
Shelf: File Cabinet 1 Shelf 9
Model: WSB-9454-R12
MPN: WSB-9454-R12
Type: Single Board Computer
