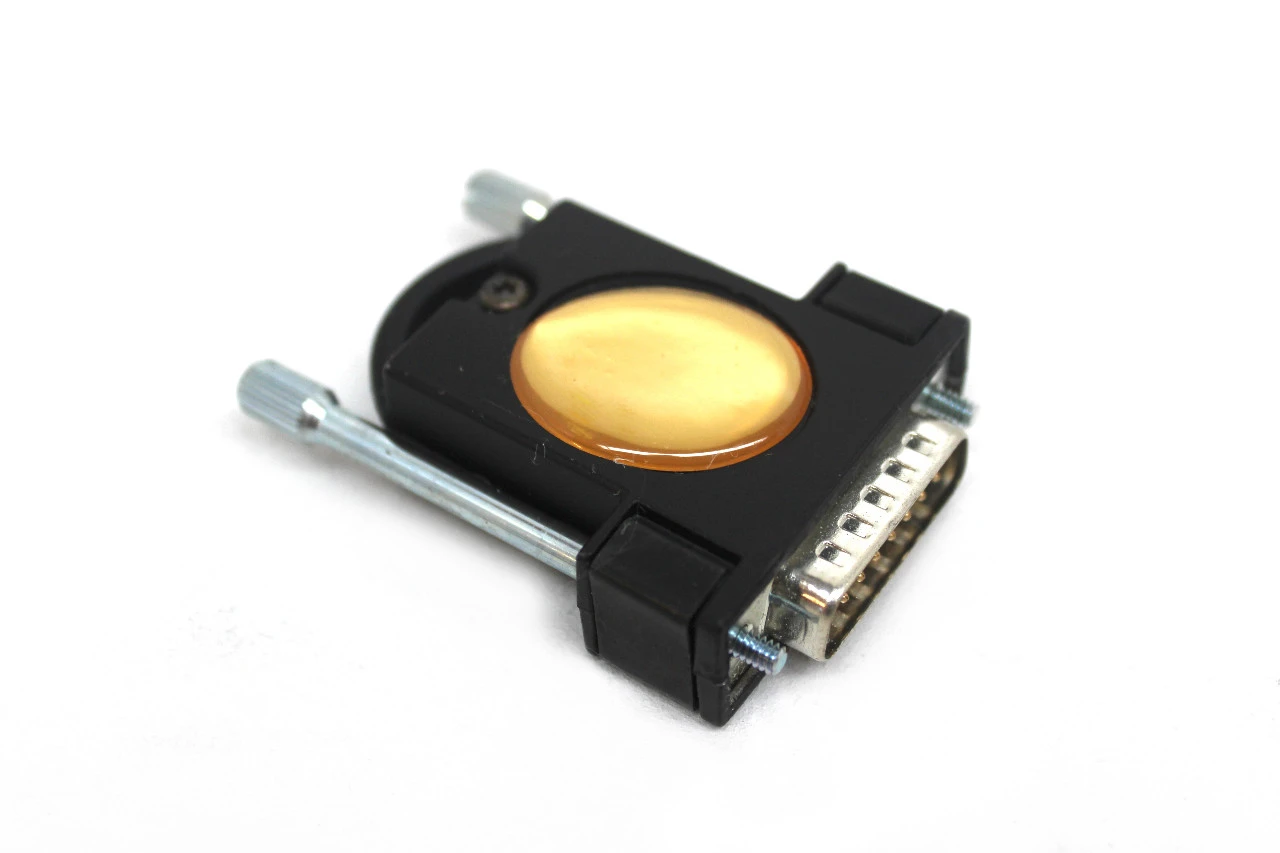

Rbu-Gold
Atlas CopcoÛªs patented Rapid Backup Unit (RBU) concept transfers functionality to a non-configured hardware unit, ensuring that hardware can easily be upgraded should functionality requirements change. The RBU also acts as back-up for programming and configuration. If a change of hardware is required, just fit the RBU to the new hardware, switch on the unit and youÛªre ready. All programming and network configurations are transferred in seconds. The RBU cuts downtime to a minimum.
Features:
Run tools Tensor S, ST, STB and STR
Store up to 64 program settings (default) maximizing productivity in the station and reducing the need for additional tools
Count batch: counts numbers of bolts to be tightened, to increase error proofing in assembly operations
Open-end tools supported for tube nut applications, reducing assembly time
Quick programming function to reduce program set-up time
Cross thread and rehit detection to increase quality during assembly process
Tool service indicator to help user plan preventive maintenance, reducing costs on run-to-fail
Autoset function allows controller to adjust itself to joint conditions during set-up
Lock tool on reject to reduce operator's influence on decisions, reducing quality related costs
Store up to 5,000 (default) tightening status (OK/NOK) for short/mid term traceability
Store up to 5,000 (default) tightening data for short/mid term traceability
Store up to 8 (default) tightening traces for short term analysis
Real time statistics, including statistical process control (SPC) to monitor the process, detecting deviations sooner
Two stage/quick step/ergoramp tightening strategies to reduce joint relaxation, decrease tightening time and increase operator comfort
Torque control and angle monitoring to detect if joint is properly tightened, securing tightening process
Auto zoom step in ergoramp tightening automatically controls motor braking in different joint conditions
CW (clockwise) and CCW (counter clockwise) operations supported
Rundown angle, self tap and prevailing torque (PVT) monitoring to secure tightening process
Reverse angle to loosen a bolt in a controlled manner
Rotate spindle forward supported
Click wrench input supported for operation backup, assuring the assembly process
Torque and angle control stop the tool when both targets are reached for maximum process control
Angle control and torque monitoring for better control during tightening process
RS232 port for programming
USB port for programming (Power Focus 4000 only)
Discrete I/O to interface with a production line
Remote start for fixture application
QIF (error proofing modules) connectivity, such as socket selectors for easy installation in demanding error proofing applications
Parallel printer port
Expandable I/O (up to 124 in/124 out)
Open protocol serial
| Weight | 1.00 LBS | 1.00 LBS |
SKU: IP487965729
UPC: 646412767546
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 646412767546
Country/Region of Manufacture: Sweden
Manufacturer: Atlas Copco
Series: Tensor
Shelf: Q-5
Model: RBU-Gold
MPN: 8433-0020-20
Type: Rapid Backup Unit
