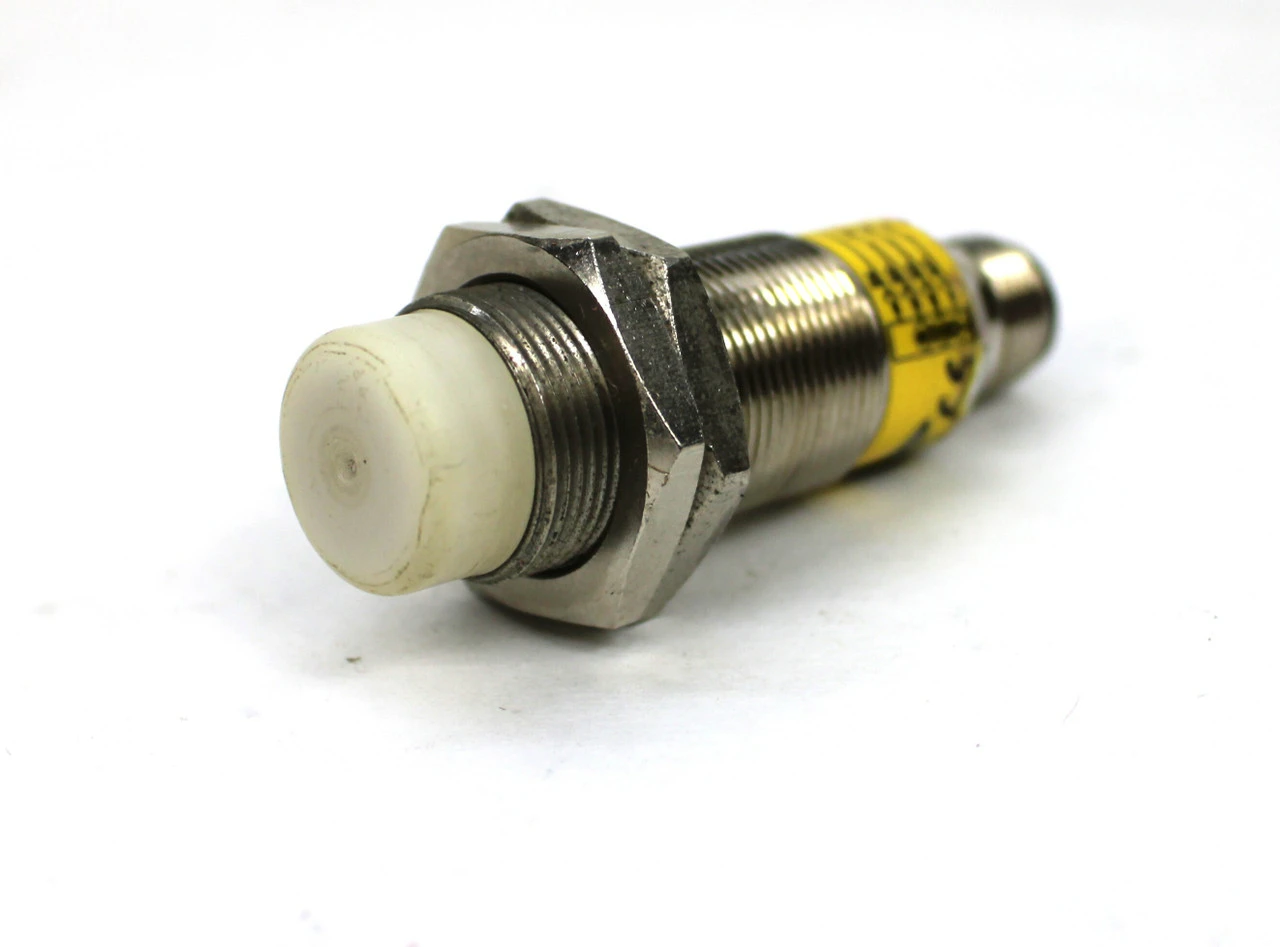

Banner Engineering M18GRYPQ General Purpose Indicator, 18mm

Banner Engineering M18GRYPQ General Purpose Indicator, 18mm
Cable Length (m)0.15
Housing StyleBarrel Mount - Flat Window
Primary Housing MaterialNickel-Plated Brass
IndicationYes
Mounting ThreadM18 x 1.0
Color Input ControlIndividual (One wire/color, same number of colors as input wires)
Number of Colors / Segments3
Product Size (mm)18
Color TechnologyStandard LED
Color Option 1Green
Animation Option 1Solid On
ConnectionIntegral QD
Quick Disconnect TypeM12 (Euro)
Color Option 2Red
Color Option 3Yellow
Max Current Color (mA)25
Number of Input Pins/Conductors4
Supply Voltage10-30 V dc
Input TypePNP
Max Input Response Time (ms)1
Physical Dimensions (LxWxH or DxH mm)16.5 x 70.4
Environmental RatingIP67
Max Op. Temperature (°C)50
Min Op. Temperature (°C)-40
Primary Window MaterialThermoplastic Diffused
Feature: Hazardous AreaNo
Feature: AudibleNo
Feature: Chemical ResistantNo
Multi-Color DeviceSingle Color On
IO LinkNo
Modbus RTUNo
WirelessNo
Pro-Editor CompatibleNo

SKU: IP06552
UPC: 646412807839
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 4.00
(in)
Height: 4.00
(in)
Depth: 4.00
(in)
Shipping: Calculated at Checkout
Type: Indicator
Voltage: 10-30VDC
MPN: M18GRYPQ
Model: M18GRYPQ
Shelf: P-8
GTIN: 646412807839
