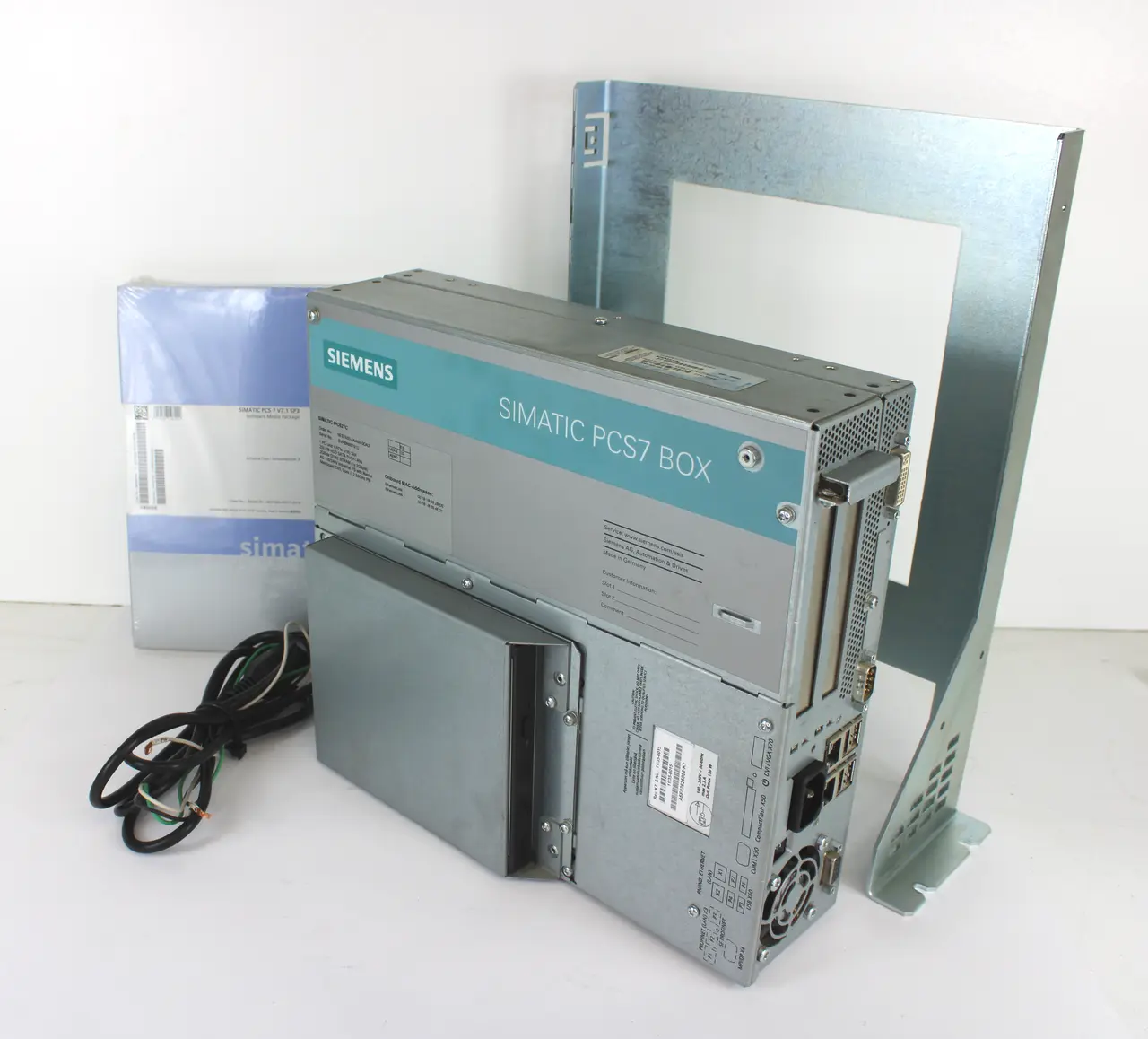

Siemens Simatic PCS 7 Box 6ES7650-4AA00-0DA3 Process Control System IPC627C Version 02åÊ
1 PCI and 1 PCIe (x16) Slot
250 GB HDD SATA DVD/RW
2 GByte DDR3 SDRAM (1x2 GByte)
AC 100-240V Industrial PS with Namur
Mainboard CV5, Core i7 2.53 GHz PB
The Box PC SIMATIC IPC627C impresses users with its high compactness and performance. It is suitable for demanding measuring, open-loop and closed-loop control tasks at ambient temperatures of up to 55 å¡C and can be used in shipbuilding.
The Box PC SIMATIC IPC627C is now available optionally with UL certification Class I / Division 2 for operation in potentially explosive atmospheres, for example, in the oil and gas or petrochemical industry.
Despite its high compactness, it can be flexiblyåÊ
scaled and expanded due to two slots:
2 x PCI or
1 x PCI and 1 x PCIe x16åÊ
SIMATIC IPC627C / IPC827C - One platform, many advantages:
Maximum performance and extremely fast system response:åÊ
Û¢ Intel Core processors (i7, i3)åÊ
Û¢ High-performance onboard HD graphics integrated into CPUåÊ
Û¢ DDR3 storage technology
Very high system availability and data security due toåÊ
Û¢ Onboard RAID controlleråÊ
Û¢ Solid-state drive (SSD) with 50 GB (SATA, SLC)åÊ
Û¢ ECC-RAM, work memory with error correction
Remote access via Intel AMT
Optional PROFIBUS or PROFINET interface with three ports for low-cost connection of distributed field devices or to interfaces with SIMATIC S7
High data transmission rates and redundancy thanks to two teaming-capable Gigabit Ethernet connections
Dual monitoring via an optional PCI-Express x16 graphics card for high graphics performance
DVI/VGA adapter for analog monitor (optional)
4 x Hi-Speed USB 2.0 ports
Energy-efficient industrial PCs:åÊ
Û¢ Low power consumption due to state-of-the-art mobile technologyåÊ
Û¢ Wake-on-LAN functionality for targeted booting of the IPCs from a central location via aåÊ
network, e.g. after a weekend without production.
Rugged and long-term availability with the same footprint, and installation and interface compatibility with Box PC SIMATIC IPC827C.åÊ
It is also available as a compactåÊHMI IPC677CåÊwith brilliant displays for operator control and monitoring applications.
Fast diagnostics of the operating state and display of the BIOS start procedure by means of two freely programmable 7-segment displays with two additional status LEDs, e.g. for acknowledgements during data transmission.
Fast replacement of the CMOS battery even when installed due to externally accessible battery compartment.
Flexible installation in control cabinets with a high level of user friendliness due to front/portrait assembly kit and mounting brackets. All function elements and interfaces can therefore be accessed from the front.
| Weight | 25.00 LBS | 25.00 LBS |
SKU: IP3541
UPC: 641752894457
Condition: Used
Availability: In Stock
Weight: 25.00 LBS
Width: 18.00
(in)
Height: 18.00
(in)
Depth: 18.00
(in)
Shipping: Calculated at Checkout
Type: PCS 7 Box Process Control System
Voltage: 100-240V AC
MPN: 6ES7650-4AA00-0DA3
Model: IPC627C
Communications: EtherNet, Profibus/MPI, RS-485, USB
Serial Number: SVPBN857913
Shelf: D-2
Series: IPC627C
Controller Platform: Simatic
Part Number: IPC627C
Processor: CV5 Core i7 2.53 GHz PB
Version: 7.1
Manufacturer: Siemens
Country/Region of Manufacture: Germany
GTIN: 641752894457
