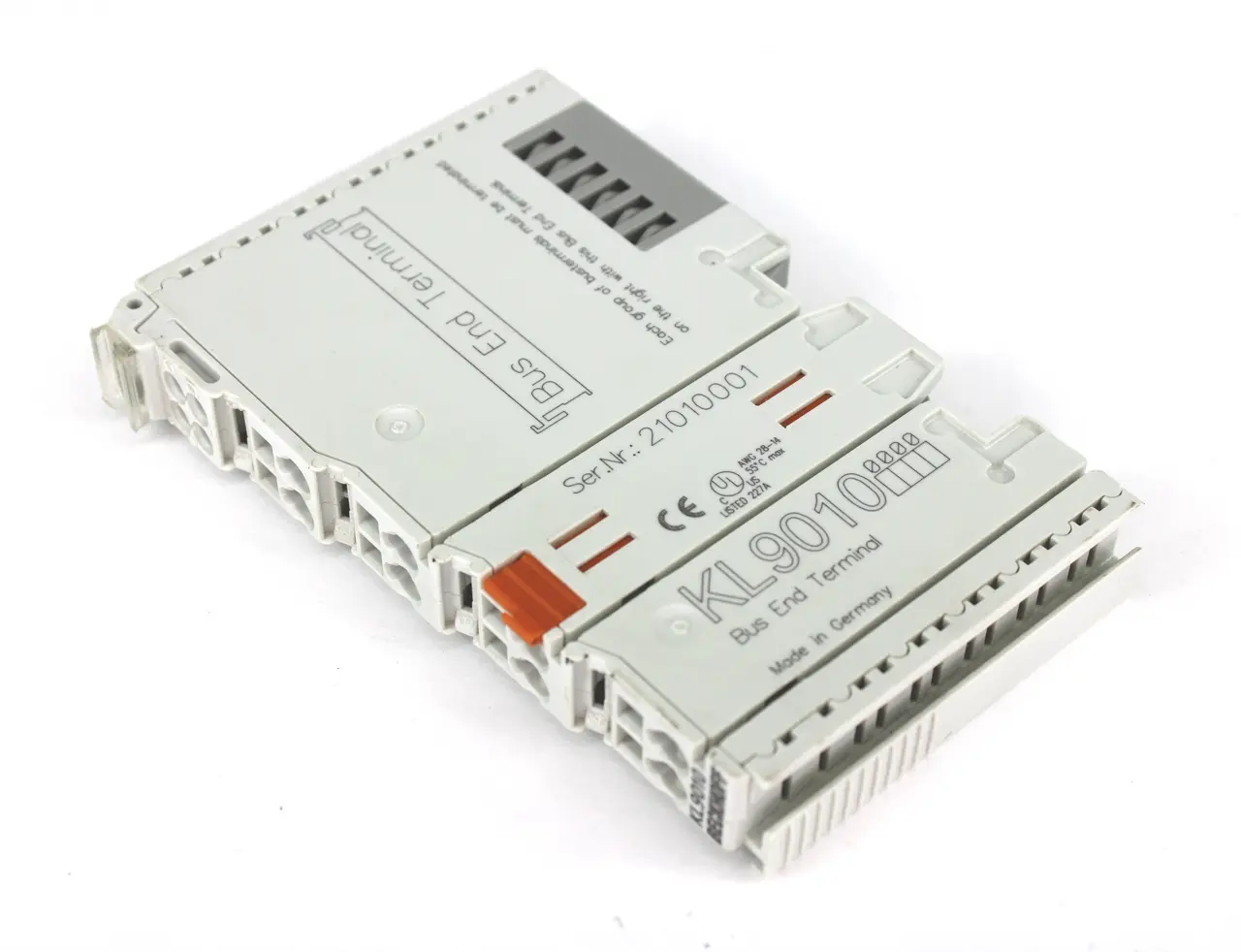

KL9010 | End terminal
The KL9010 bus end terminal is necessary for data exchange between the Bus Coupler and the Bus Terminals. Each assembly must be terminated at the right hand end with a KL9010 bus end terminal. The bus end terminal does not have any other function or connection facility.
Technical data KL9010
Nominal voltage ÛÒ
Current load ÛÒ
Integrated fine-wire fuse ÛÒ
Diagnostics ÛÒ
Power LED ÛÒ
Defect LED ÛÒ
Reported to K-bus ÛÒ
PE contact ÛÒ
Shield connection ÛÒ
Renewed infeed ÛÒ
Connection facility to additional power contact ÛÒ
K-bus, looped through ÛÒ/yes
Bit width in the process image 0
Electrical connection to DIN rail ÛÒ
Current consumpt. K-bus ÛÒ
Starting current ÛÒ
Electrical isolation ÛÒ
Housing width in mm 12
Special features end terminal for bus communication
Weight approx. 50 g
Side by side mounting on Bus Terminals with power contact yes
Side by side mounting on Bus Terminals without power contact yes
Operating/storage temperature -25Û_+60 å¡C/-40Û_+85 å¡C
Approvals CE, UL, Ex, GL
The KL2408 digital output terminal connects the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. It is protected against reverse polarity connection and handles load currents with outputs that are protected against overload and short-circuit. The Bus Terminal contains eight channels which indicate their signal state by means of light emitting diodes. It is particularly suitable for space-saving use in control cabinets. The connection technology is optimised for single-ended inputs. All components have to use the same reference point as the KL2408. The power contacts are looped through. The outputs are supplied by the 24 V power contact.
Technical data KL2408 | KS2408
Connection technology 1-wire
Number of outputs 8
Rated load voltage 24 V DC (-15 %/+20 %)
Load type ohmic, inductive, lamp load
Max. output current 0.5 A (short-circuit-proof) per channel
Short circuit current < 2 A
Breaking energy < 150 mJ/channel
Reverse voltage protection yes
Electrical isolation 500 V (K-bus/field potential)
Current consumption power contacts typ. 60 mA + load
Current consumpt. K-bus typ. 18 mA
Bit width in the process image 8 outputs
Configuration no address or configuration setting
Weight approx. 70 g
Operating/storage temperature -25Û_+60 å¡C/-40Û_+85 å¡C
Relative humidity 95 %, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos. IP 20/variable
Pluggable wiring for all KSxxxx Bus Terminals
Approvals CE, UL, Ex, GL
| Weight | 1.50 LBS | 1.50 LBS |
SKU: IP5152
UPC: 641752898950
Condition: Used
Availability: In Stock
Weight: 1.50 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Free Shipping
Type: Bus End Terminal
MPN: KL9010
Model: KL9010
Shelf: E-7 Tub 1
Series: KL
Manufacturer: Beckhoff
Country/Region of Manufacture: Germany
GTIN: 641752898950
