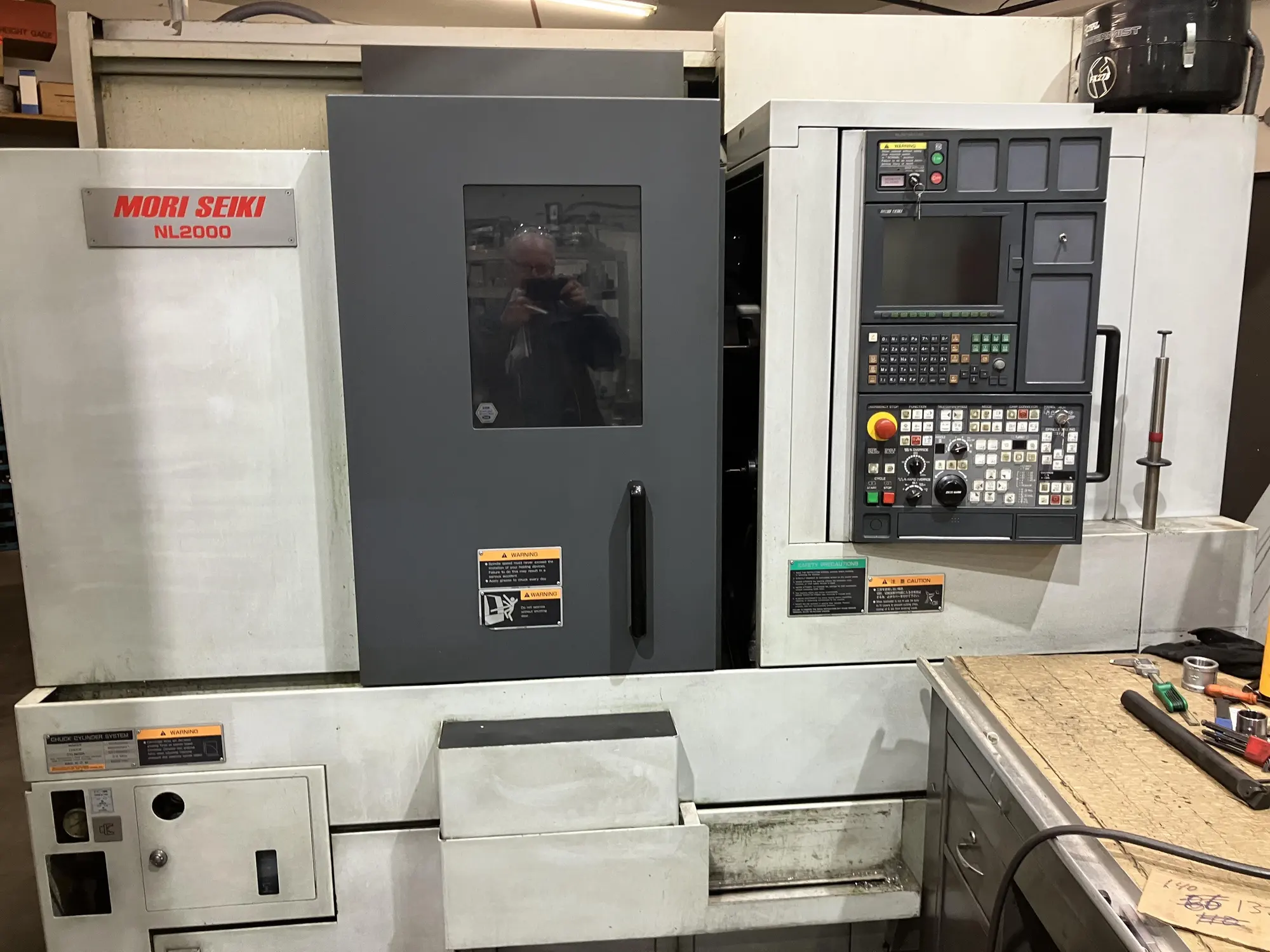

Mori Seiki NL2000MC/500 CNC Lathe
New: 11/2004
14" Turning Dia, 20" Length, 22.8" Swing, 23.2" Centers, 12-Station Turret, Tailstock, (2) Live Holders
| Swing | 15" | 381 mm |
| Machining Length | 24" | 609.6 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 14.4" | 365.76 mm |
Mori Seiki NL2000MC CNC Turning Center
New: 11/2004
Specifications:
Max Turning Diameter: 14"
Max Turning Length: 20.1"
Max Bar Capacity: 2.56"
Swing Over Bed: 22.8"
Center Distance: 23.2"
Travels:
X Axis Travel: 10.2"
Z Axis Travel: 23.2"
Equipped With:
Mori Seik MSX-850III CNC Control
12 Station High Speed Turret
20 HP Gearbox Spindle
PCMCIA Card Slot
RS-232
Programmable Tailstock
Rigid Tapping
Coolant System
8" Dia. 3-Jaw Chuck
Chip Conveyor
Coolant Pump
Live Tooling (2) Holders
Tool Presetter Arm
Parts Catcher
