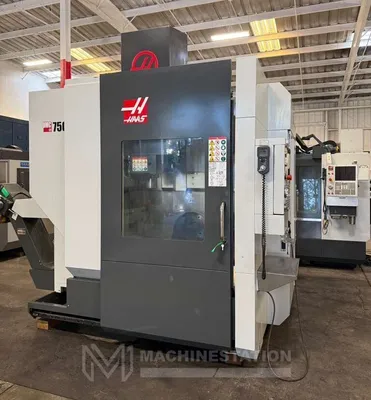

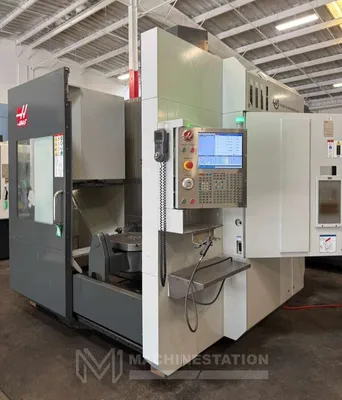

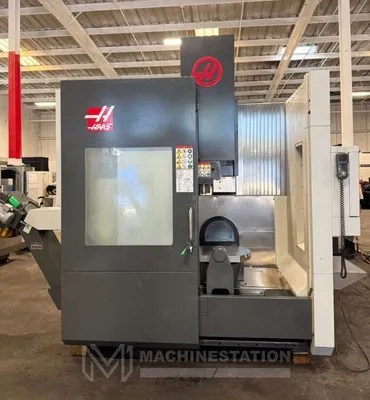

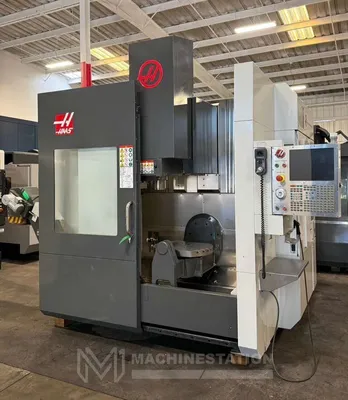

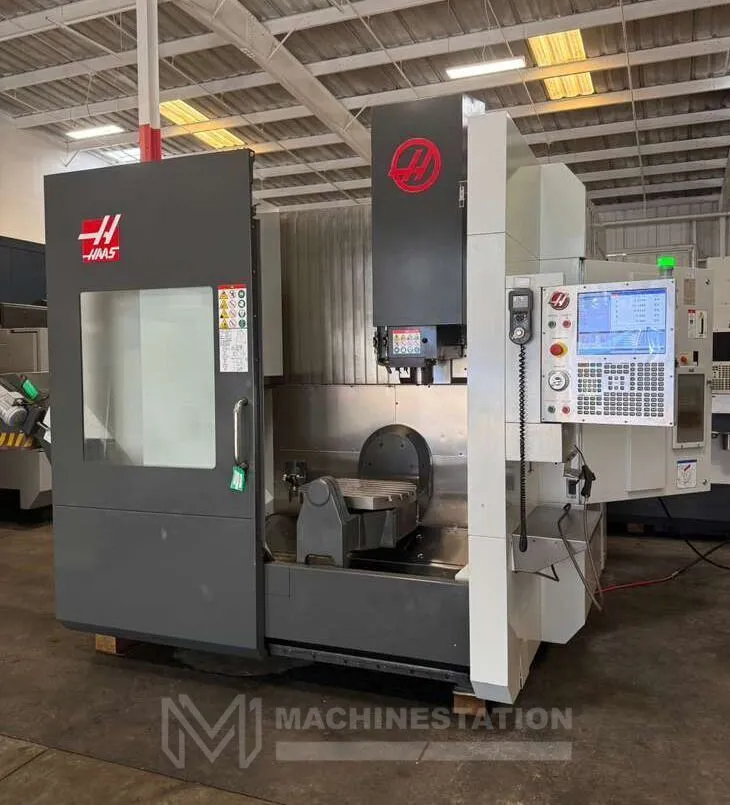

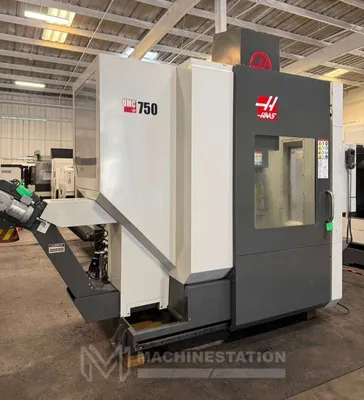

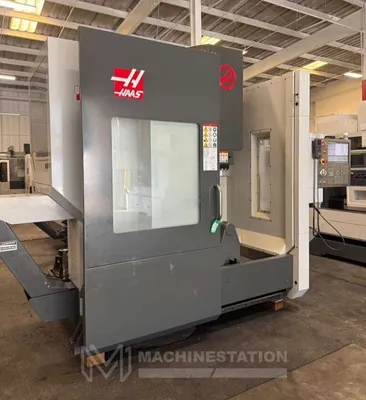

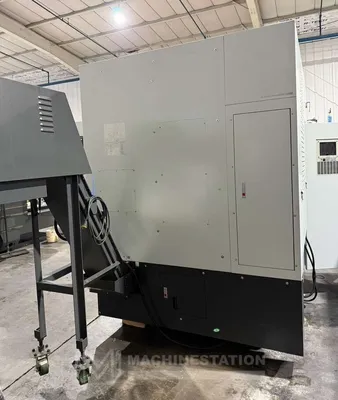

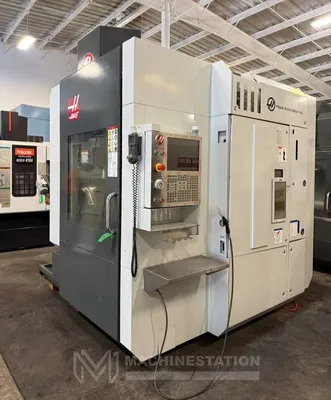

USED 2016 HAAS UMC-750

Avoid Paying More! New Haas prices just went up 5% as of May 1st — plus, long lead times on new machines mean delays and higher costs. This 2016 Haas UMC-750 is fully equipped with 12,000 RPM Spindle, 40 Station Automatic Tool Changer, TSC, High Speed Machining, 32 GB Expanded Memory and Belt-Type Chip Conveyor.
“Replacement Cost Over $225,000 with Similar Options”

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Features:

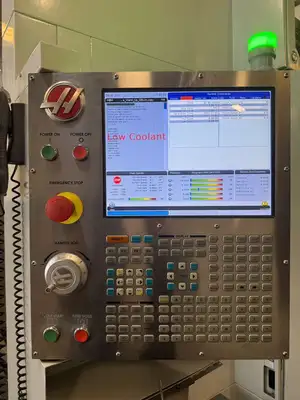

Haas CNC Control

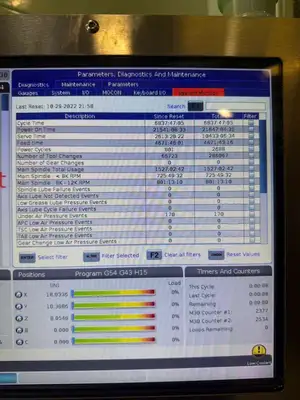

4,671 Hours Cutting Time
Haas Trunnion Table
30 HP High Torque Spindle
Remote Jog Handle
Rigid Tapping
Spindle Orientation
Macros
Rotation and Scaling
VPS Editing
Media Display M-Code
Compensation Tables
Coolant Tank

Travels:
X-Axis: 30″
Y Axis: 20″
Z Axis: 20″
B-Axis (Table Tilt): + 120° – 35°
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates: 900 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

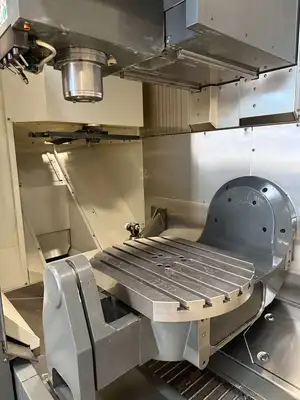

Trunnion Table:
Platter Diameter: 19.70″
Max Weight on Platter: 660 lbs
T-Slot Width: 0.626″ to 0.630″
Number of Std T-Slots: 7

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

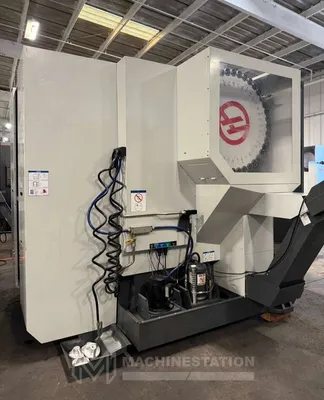

Automatic Tool Changer:
Capacity: 40 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 12″
Tool-to-Tool Changing Time: 2.8 Seconds

General:
Air Required: 100 psi 4 scfm

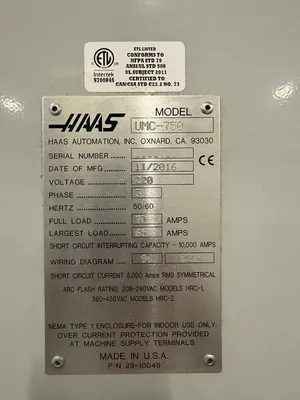

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 168″ x 92.5″ x 110″ High
Weight: 14,250 lbs.

12,000 RPM High Speed Spindle (Upgraded $11,195 Approx. value Included)
40 Station Automatic Tool Changer (Upgraded $11,995 Approx. value Included)

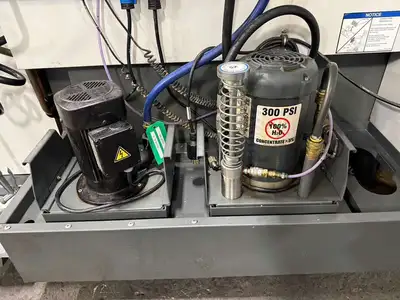

Through Spindle Coolant – 300 psi (Upgraded $7,095 value Included)
High Speed Machining (Upgraded $3,895 value Included)
Renishaw Probing System (Probe Needed)
Tool Presetter
Programmable Coolant Nozzle (Upgraded $2,395 value Included)
32 GB Expanded Memory (Upgraded $1,695 value Included)
Belt-Type Chip Conveyor (Upgraded $7,995 value Included)
