USED FESTO ADVU-16-10-A-P-A
Overview
Description

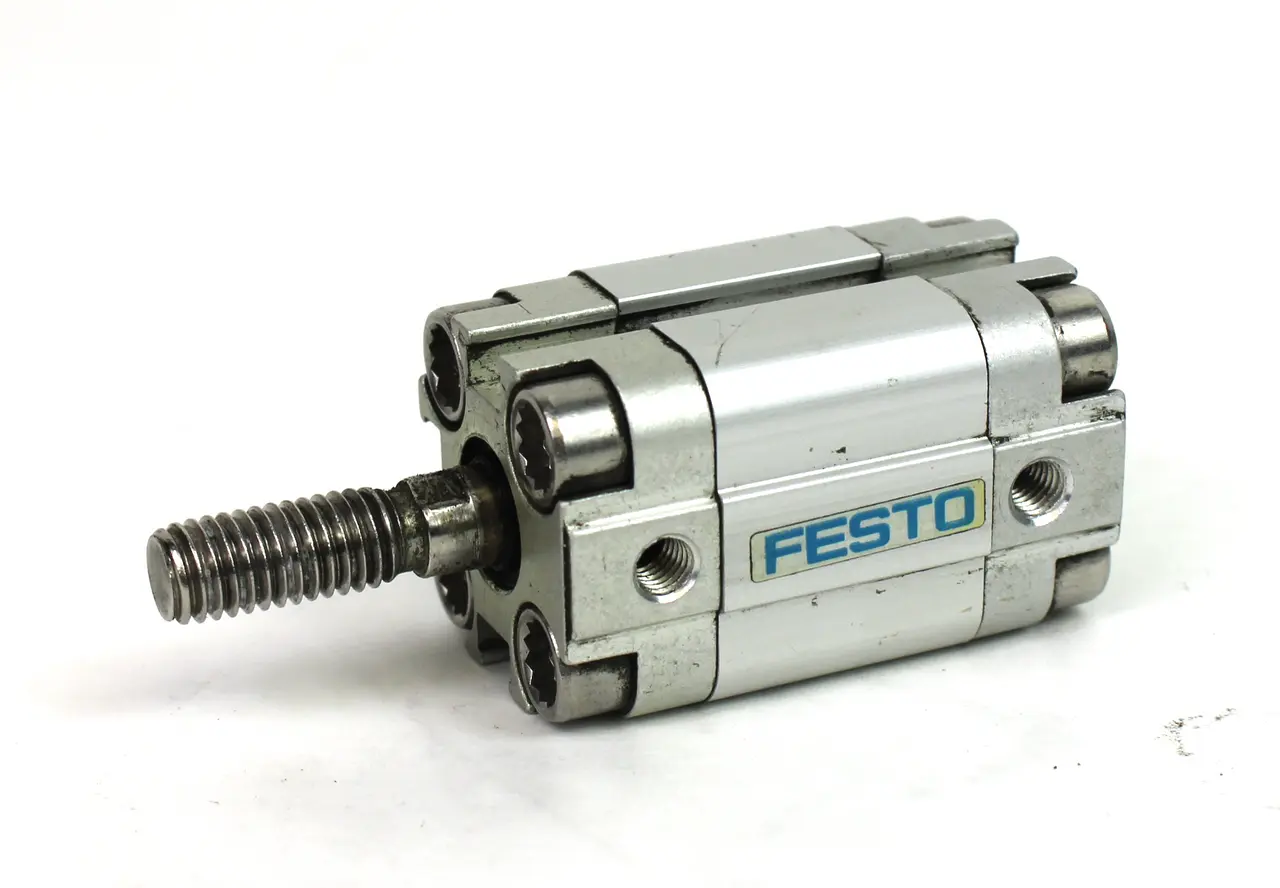

Festo ADVU-16-10-A-P-A Compact Cylinder
- Piston diameter :16 mm
- Cushioning P: Flexible cushioning rings/plates at both ends
- Assembly position : Any
- Mode of operation : double-acting
- Piston-rod end : Male thread
- Design structure : Piston, Piston rod
- Position detection : For proximity sensor
- Variants : Single-ended piston rod
- Working pressure : 1.2 ... 10 bar
- Operating medium : Compressed air in accordance with ISO8573-1:2010 [7:4:4]
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: IP12418
UPC: 635510918950
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 5.00
(in)
Height: 2.00
(in)
Depth: 9.00
(in)
Shipping: Calculated at Checkout
Type: Compact Cylinder
MPN: ADVU-16-10-A-P-A
Model: ADVU-16-10-A-P-A
Bore Diameter: 16mm
Stroke: 10mm
Shelf: B-15
Bore: 16mm
Manufacturer: Festo
Max. Bar: 10
