USED FESTO ADVUL-12-15-P-A
Overview
Description

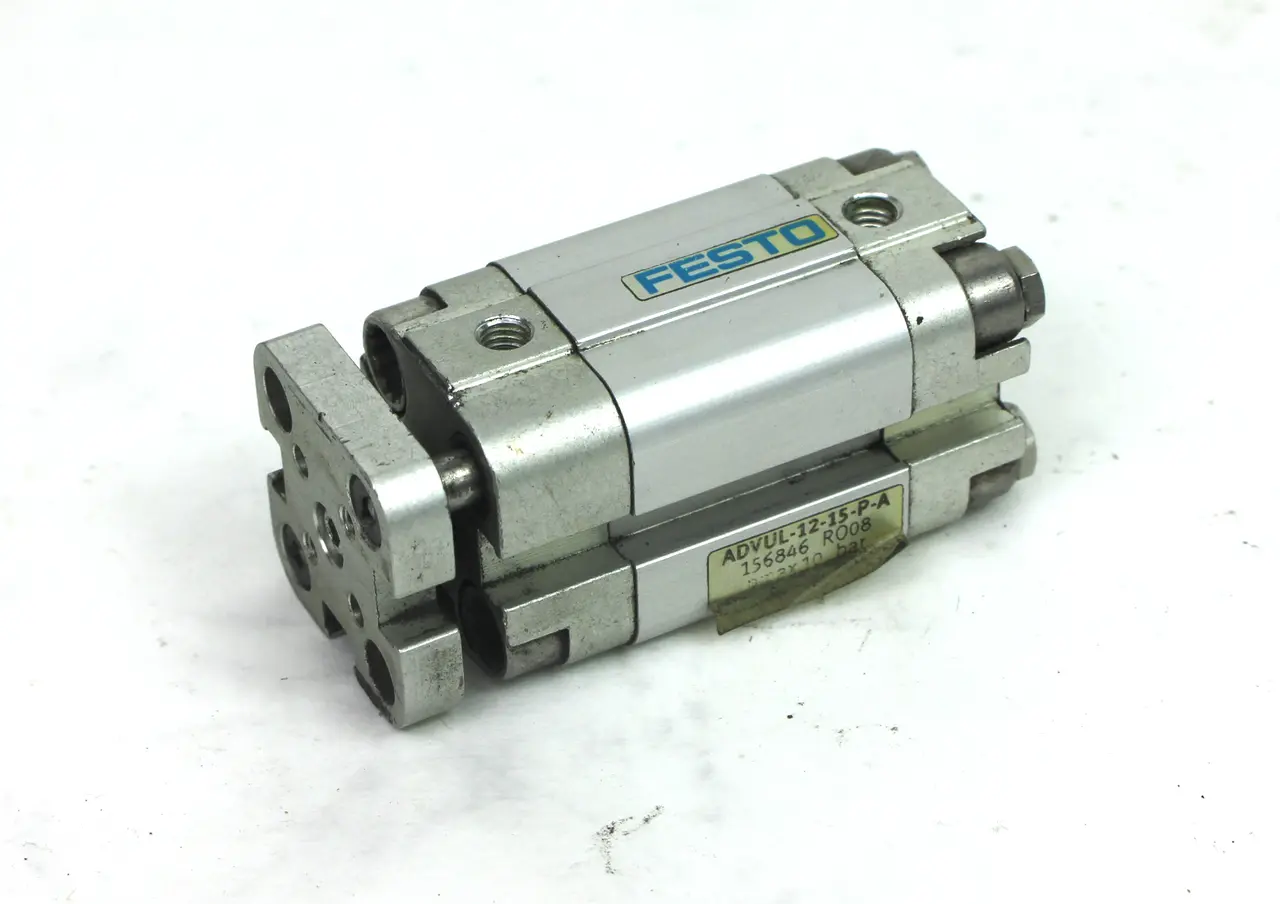

Festo ADVUL-12-15-P-A Pneumatic Compact Cylinder 12mm Bore 15mm Stroke
Stroke : 15 mm
Piston diameter : 12 mm
Cushioning : Elastic cushioning rings/pads at both ends
Mounting position : Any
Structural design : Piston Piston rod
Position sensing : For proximity sensor
Symbol : 00991737
Variants : Piston rod at one end
Protection against torsion/guide : Guide rod with yoke
Operating pressure : 0.15 MPa ... 1 MPa
Operating pressure : 1.5 bar ... 10 bar
Mode of operation : Double-acting
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: IP12431
UPC: 635510919049
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 5.00
(in)
Height: 2.00
(in)
Depth: 9.00
(in)
Shipping: Calculated at Checkout
Type: Pneumatic Compact Cylinder
MPN: ADVUL-12-15-P-A
Model: ADVUL-12-15-P-A
Bore Diameter: 12mm
Stroke: 10mm
Shelf: B-15
Manufacturer: Festo
Useraction: Double Action
Max. Bar: 10 Bar
GTIN: 635510919049
