USED FESTO ADVUL-16-30-P-A
Overview
Description

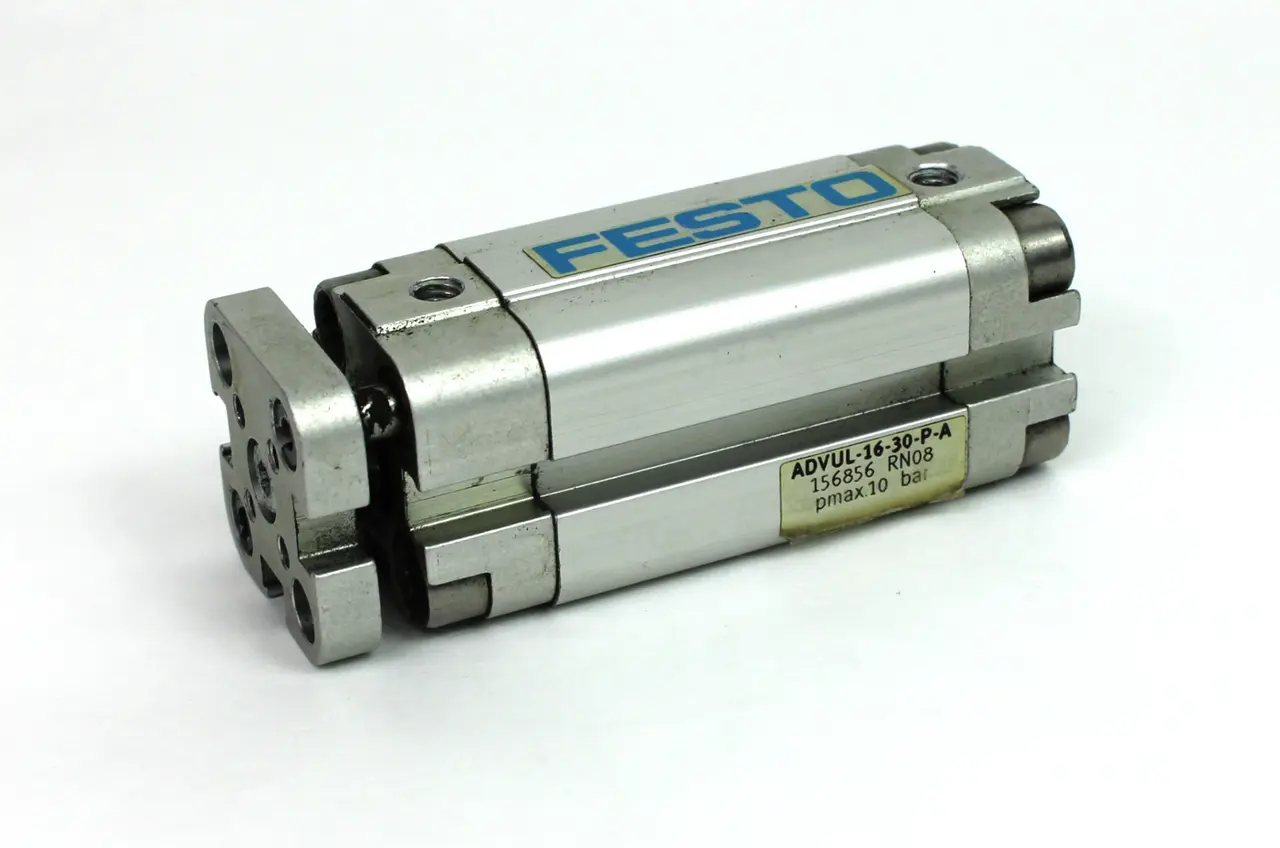

Festo ADVUL-16-30-P-A Pneumatic Compact Cylinder 16mm Bore 30mm Stroke
Stroke : 30 mm
Piston diameter : 16 mm
Cushioning : Elastic cushioning rings/plates at both ends
Mounting position : optional
Design : Piston Piston rod
Position detection : Via proximity switch
Symbol : 00991737
Variants : Piston rod at one end
Protection against torque/guide : Guide rod with yoke
Operating pressure : 0.15 MPa ... 1 MPa
Operating pressure : 1.5 bar ... 10 bar
Mode of operation : Double-acting
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: IP12433
UPC: 635510919056
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 5.00
(in)
Height: 2.00
(in)
Depth: 9.00
(in)
Shipping: Calculated at Checkout
Type: Double Acting Compact Cylinder
MPN: ADVUL-16-30-P-A
Model: ADVUL-16-30-P-A
Bore Diameter: 16mm
Stroke: 30mm
Shelf: B-15
Bore: 16mm
Manufacturer: Festo
Useraction: Double Acting
GTIN: 635510919056
