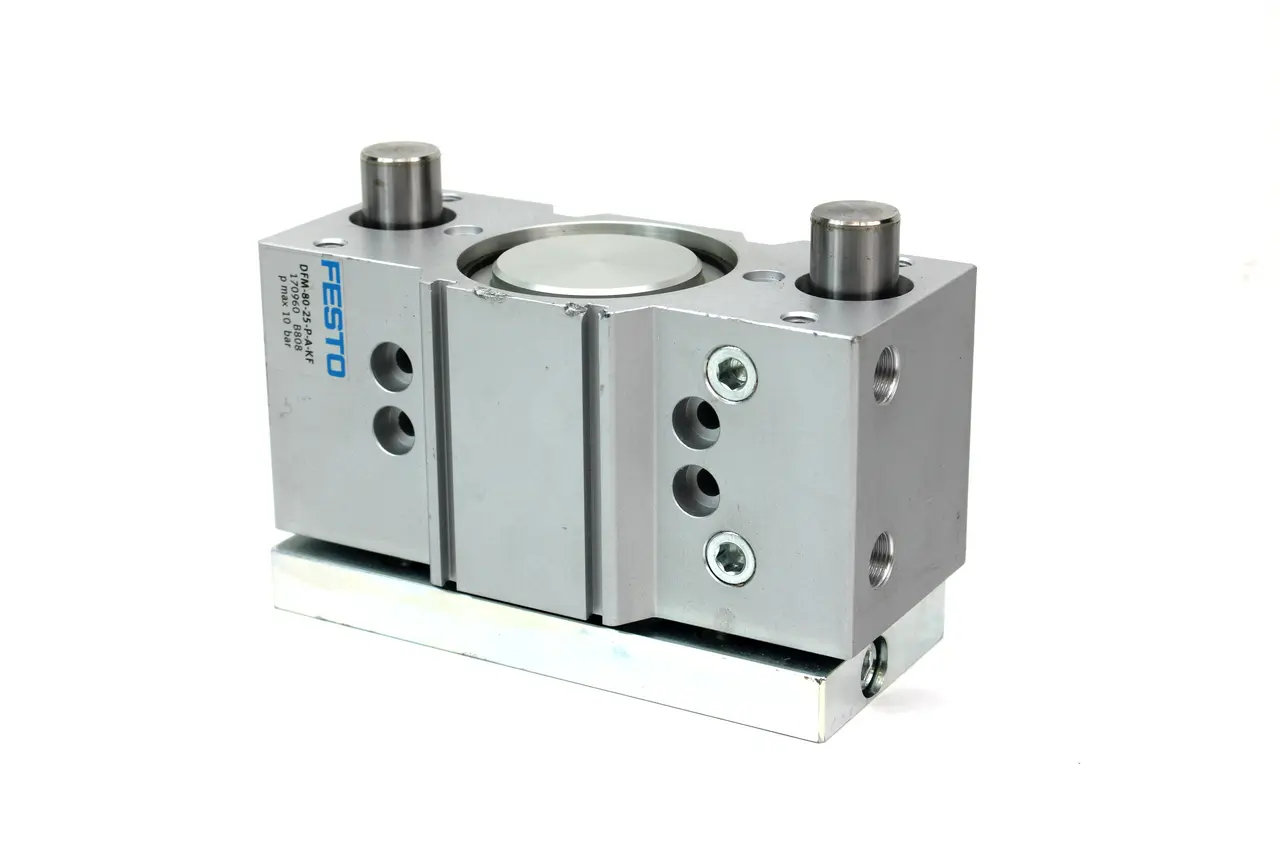

Festo DFM-80-25-P-A-KF Guided Drive Cylinder, 80mm Bore, 25mm Stroke
Overview
Description
Festo DFM-80-25-P-A-KF Guided Drive Cylinder, 80mm Bore, 25mm Stroke
-Distance from centre of gravity of load to yoke plate xs: 125 mm
-Stroke: 25 mm
-Piston diameter: 80 mm
-Operating modemdrive unit Yoke
-Cushioning: Elastic cushioning rings/plates at both ends
-Mounting position: optional
-Guide: Recirculating ball bearing guide
-Operating pressure 0.05 MPa ... 1 MPa
-Operating pressure 0.5 bar ... 10 bar
-Max. speed: 0.4 m/s
-Mode of operation: Double-acting
-Operating medium: Compressed air
Specifications
| Weight | 16.00 LBS | 16.00 LBS |
|---|
UPC: 679523690892
Condition: New
Availability: In Stock
Weight: 16.00 LBS
Width: 10.00
(in)
Height: 10.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
Max. Operating Pressure: 10 Bar
Useraction: Double
Manufacturer: Festo
Max. Pressure: 10 Bar
Part Number: DFM-80-25-P-A-KF
Stroke: 25mm
Bore Diameter: 80mm
MPN: DFM-80-25-P-A-KF
Shelf: B-15
GTIN: 679523690892
