USED SMC CDQ2A25-50DM
Overview
Description

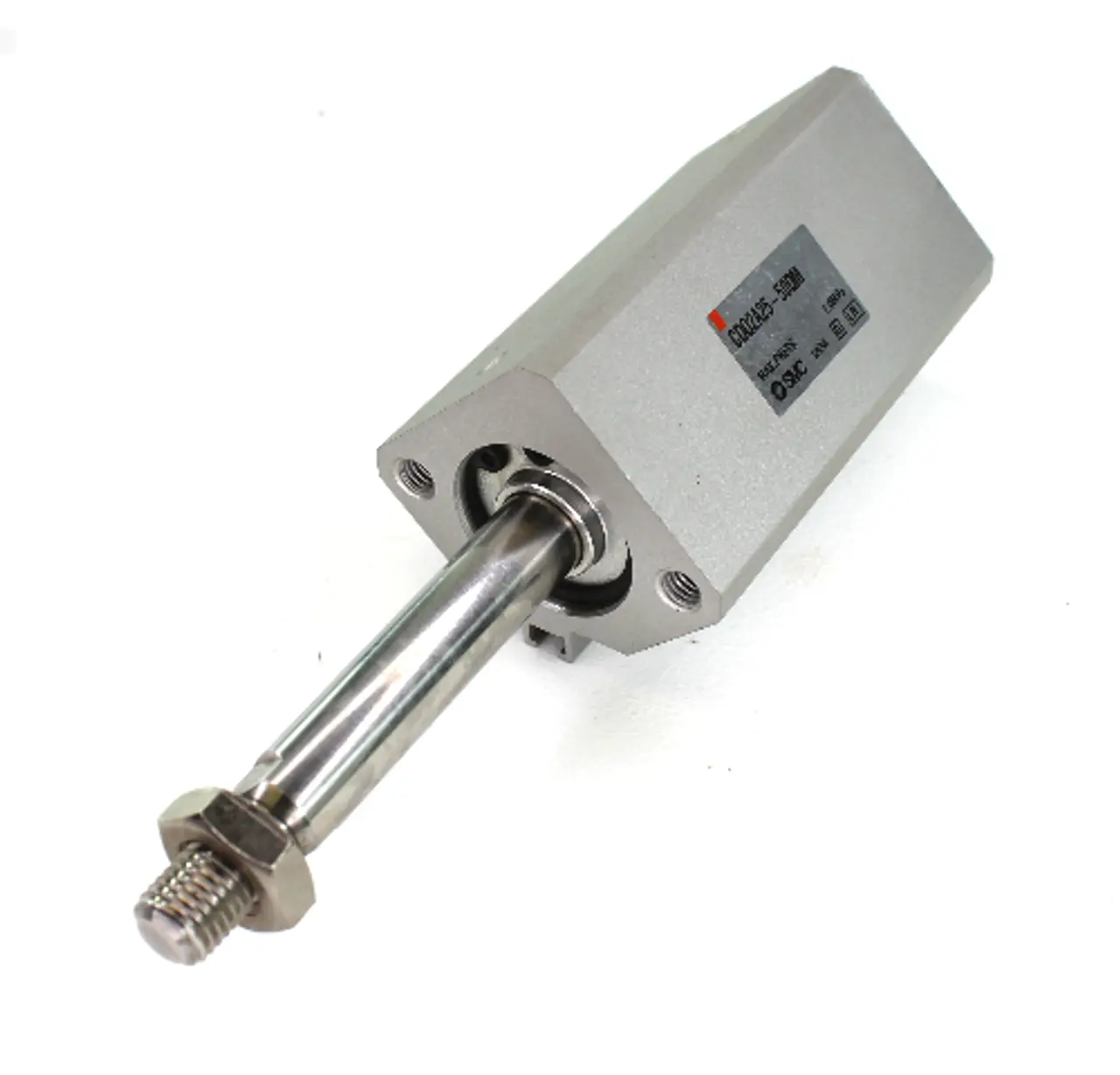

The SMC CDQ2A25-50DM is a compact pneumatic cylinder from SMC's world-renowned CQ2 series. This double-acting, single-rod cylinder features a space-saving design with 25mm bore diameter and 50mm stroke length. The CQ2 series is designed with a compact body to help make various jigs and equipment more compact, with auto switch mounting capability on multiple surfaces.
Specification
Value
Brand
SMC
Model/Part Number
CDQ2A25-50DM
Series
CQ2
Cylinder Type
Compact Cylinder
Action
Double Acting
Bore Diameter
25mm
Stroke Length
50mm
Maximum Operating Pressure
1.0 MPa
Proof Pressure
1.5 MPa
Operating Temperature Range
-10°C to +70°C
Mounting Style
Both Ends Tapped
Built-in Magnet
Yes
Rod End
Male Thread
Auto Switch Mounting
2 Surfaces (12-25mm bore)
Medium
Compressed Air
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1498
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: CDQ2A25-50DM
Shelf: B-15
Bore Diameter: 25 mm
Model: CDQ2A25-50DM
MPN: CDQ2A25-50DM
Type: Compact Cylinder
