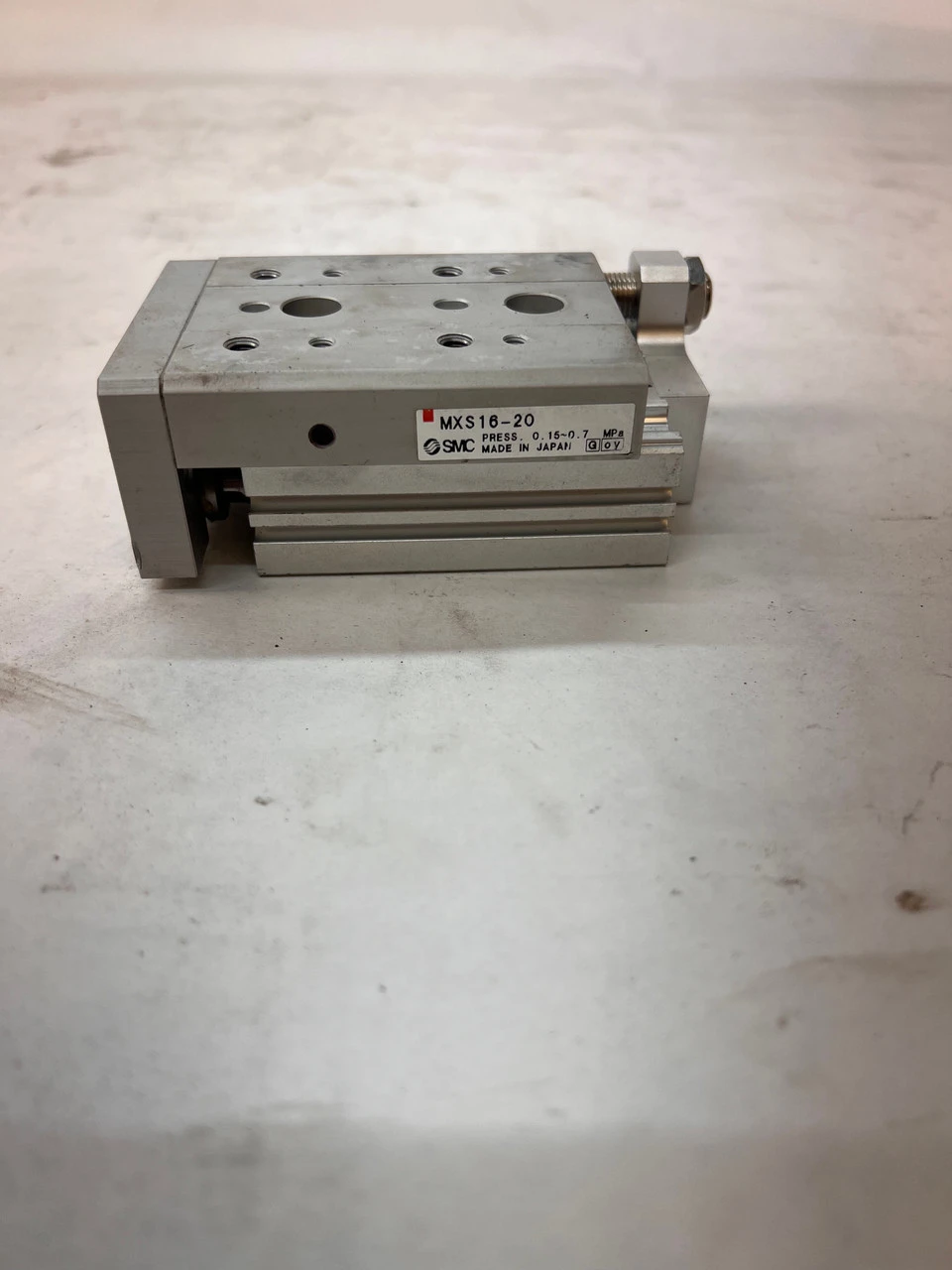

USED SMC MXS16-20
Overview
Description
SMC MXS16-20 Slide Table, Dual Rod Guided Cylinder 16 Bore 20 Stroke
Applications that call for precise movement ranging from 10-150mm * typically require a cylinder and a precision guide. The MXS accomplishes this by integrating a cross roller bearing with a guide and two small air cylinders for compact force generation. The MXS is available in six sizes each with set stroke lengths and is standard with auto switch capability. Stroke adjustments are available for extend, retract, or both in ranges of 0-5mm, 0-15mm, and 0-25mm. In addition, there are many other standard options that include, shock absorbers, end lock, axial piping, and buffer.
Specifications
| Weight | 3.00 LBS | 3.00 LBS |
|---|
SKU: IP5900
UPC: 641752901209
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Shelf: B-11
GTIN: 641752901209
Country/Region of Manufacture: Japan
Max. Mpa: 0.15-0.7 Mpa
Manufacturer: SMC
Bore: 16
Series: MXS
Stroke: 20mm
Model: MXS16-20
MPN: MSX16-20
Type: Dual Rod Guided Cylinder
