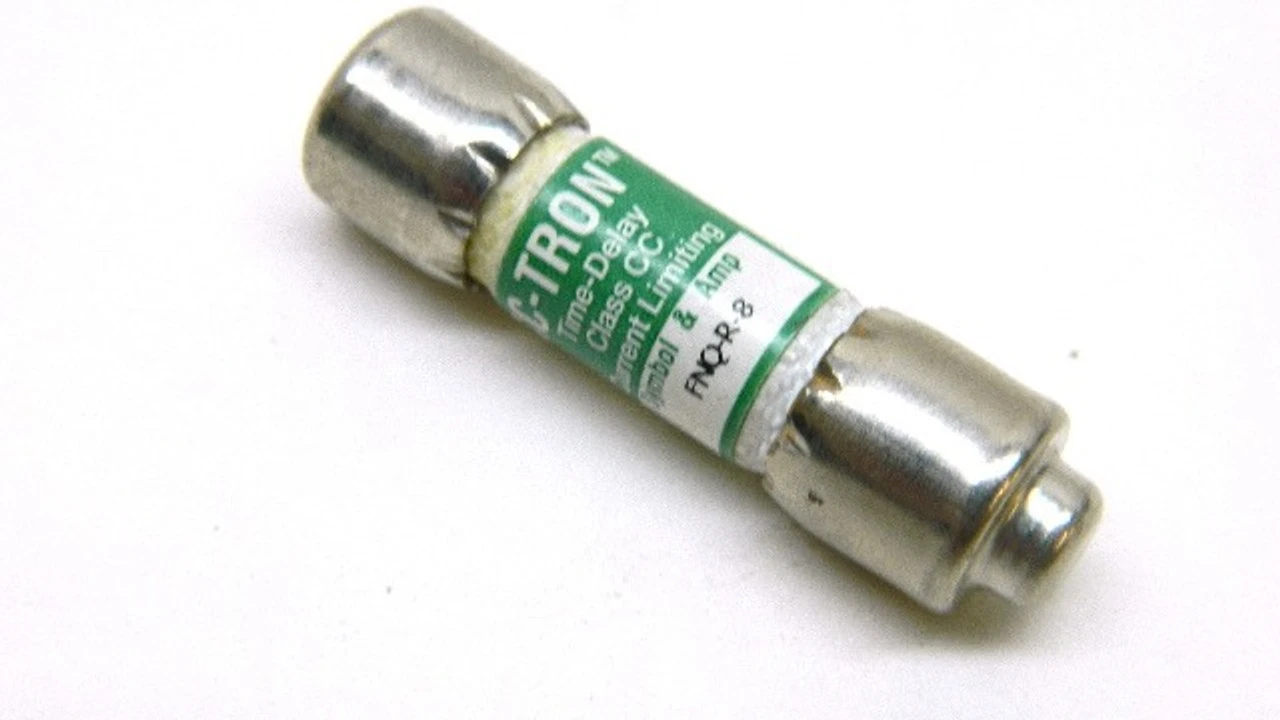

NEW COOPER BUSSMANN FNQ-R-8

Features
The Bussmann CC-TRONå¨ (FNQ-R) was designed to meet the needs of control circuit transformer protection
Current-limitation protects down stream components against damaging thermal and magnetic effects of short circuit currents
High inrush time-delay. Control circuit transformers can experience inrush currents up to 85 times their full-load current rating. FNQ-R fuses can be sized according to NEC and UL requirements and still allow the high inrush currents, with significantly more time-delay than the UL minimum value of 12 seconds at 200% for Class CC fuses.
UL, CSA approved
Applications:
Circuit Transformer Protection
Specifications
Current:
250mA ~ 30A
Fuse Type:
Slow Blow, Time Lag
Mounting Type:
Holder
Package / Case:
5AG, 10mm x 38.1mm
Size / Dimension:
0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Voltage - Rated:
600VAC

SKU: IP4092
UPC: 641752895690
Condition: New
Availability: In Stock
Weight: 0.38 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
Country/Region of Manufacture: United States
Manufacturer: Cooper Bussmann
Amperage: 8
Series: FNQ
Model: FNQ-R-8
MPN: FNQ-R-8
Voltage: 600VAC or Less
Type: Time Delay Current Limiting Fuse
Shelf: C-3 case 1
GTIN: 641752895690
